Thermacut T-11423 retaining cap replaces Hypertherm 220854

This part replaces Hypertherm 220854-UR. It's Thermacut T-11423, and it suits Hypertherm Duramax hand and machine torches on Powermax 65, 85 and 105, at 45, 65 or 85A. Sold each.

Parts that go with it

The same cap is used for shielded and unshielded cutting, gouging and FineCut up to 85A. The shield or deflector and the nozzle must be used together as a set, and so must the electrode and swirl ring.

Setup	Shield or deflector	Nozzle	Swirl ring
Shielded cutting, 45/65/85A	220818 Shield for Hand Torch T-11406 220817 Shield for Machine Torch T-11404	220941 Nozzle 45A T-11378 220819 Nozzle 65A T-11377 220816 Nozzle 85A T-11405	220857 Swirl Ring T-11861
Unshielded cutting, 45/65/85A	220955 Deflector T-11407	220941 Nozzle 45A T-11378 220819 Nozzle 65A T-11377 220816 Nozzle 85A T-11405	220857 Swirl Ring T-11861
Gouging, 65/85A	220798 Gouging Shield T-12022	220797 Gouging Nozzle T-12021	220857 Swirl Ring T-11861
FineCut	220931 FineCut Deflector T-12013 or 220955 Deflector T-11407	220930 FineCut Nozzle T-11845	220947 FineCut Swirl Ring T-12015

Every setup uses electrode 220842 Electrode 45–105A T-11883 (5 electrodes plus a swirl ring spring holder). Nozzles come in packs of 5.

Buy it in a kit

This cap also comes in these kits, with the other parts it's used with.

45A Machine Torch Kit T-DMXKIT45M

2 × Shield for Machine Torch, 1 × Retaining Cap, 10 × Nozzle 45A, 1 × Swirl Ring, 5 × Electrode

View the 45A machine torch kit

65A Hand Torch Kit T-DMXKIT65H

2 × Shield for Hand Torch, 1 × Retaining Cap, 10 × Nozzle 65A, 1 × Swirl Ring, 5 × Electrode

View the 65A hand torch kit

65A Machine Torch Kit T-DMXKIT65M

2 × Shield for Machine Torch, 1 × Retaining Cap, 10 × Nozzle 65A, 1 × Swirl Ring, 5 × Electrode

View the 65A machine torch kit

85A Hand Torch Kit T-DMXKIT85H

2 × Shield for Hand Torch, 1 × Retaining Cap, 10 × Nozzle 85A, 1 × Swirl Ring, Electrodes

View the 85A hand torch kit

85A Machine Torch Kit T-DMXKIT85M

2 × Shield for Machine Torch, 1 × Retaining Cap, 10 × Nozzle 85A, 1 × Swirl Ring, 5 × Electrode

View the 85A machine torch kit

65/85A Gouging Kit T-DMXKIT6585HG

2 × Gouging Shield, 1 × Retaining Cap, 10 × Gouging Nozzle, 1 × Swirl Ring, 5 × Electrode

View the 65/85A gouging kit

FineCut Kit T-DMXKITFC

2 × FineCut Deflector, 1 × Retaining Cap, 10 × FineCut Nozzle, 1 × FineCut Swirl Ring, 5 × Electrode

View the FineCut kit

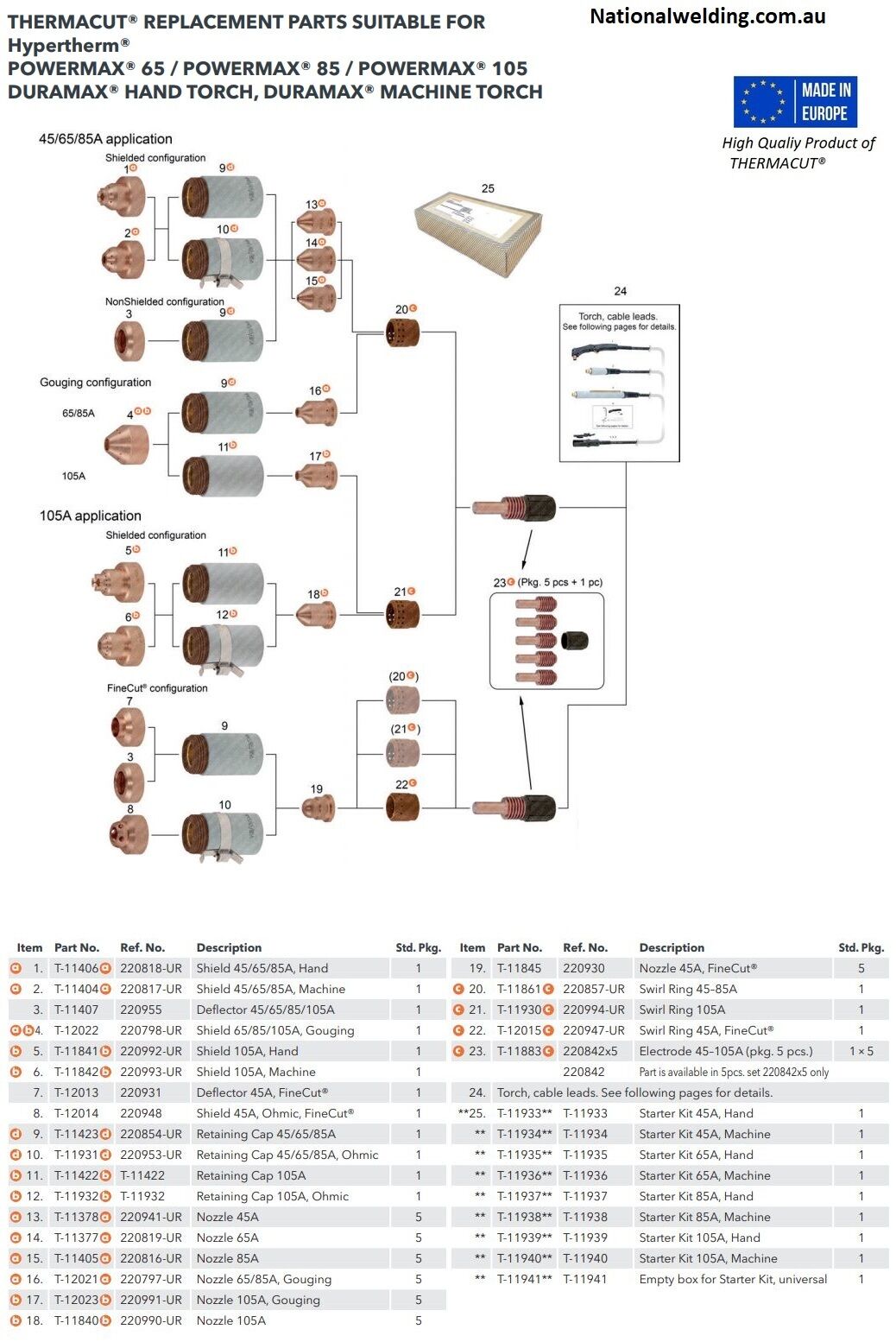

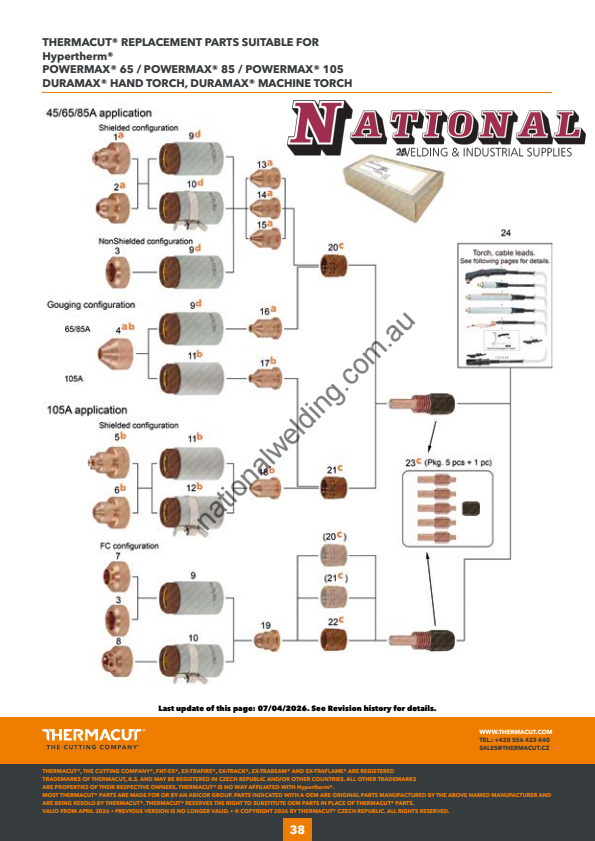

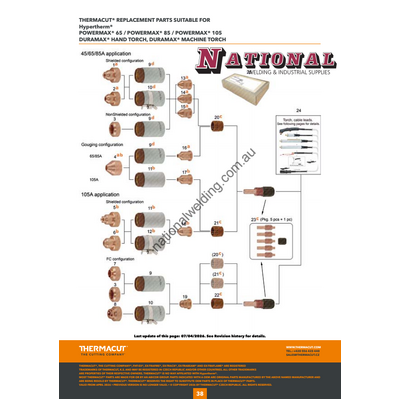

See every setup this cap goes into, side by side, in our Powermax consumables guide.

Open the Powermax consumables guide

Common questions about the T-11423 retaining cap

Does T-11423 replace Hypertherm 220854?

Yes. T-11423 is the Thermacut replacement for Hypertherm 220854-UR, rated for 45, 65 and 85A on Duramax torches.

Which retaining cap do I need?

It depends on your amperage and whether your table uses ohmic sensing. Up to 85A, use this cap, or 220953 Ohmic Retaining Cap 45/65/85A T-11931 for ohmic sensing. At 105A, use Retaining Cap 105A T-11422, or Ohmic Retaining Cap 105A T-11932 for ohmic sensing. If a wire from your table's height control clips onto the cap, you need an ohmic cap.

Which Powermax machines does this retaining cap fit?

It fits the Powermax 65, 85 and 105 with a Duramax hand or machine torch, up to 85A. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.

Can I use T-11423 on a Powermax 105 at 105A?

No. T-11423 is rated up to 85A. At 105A a Powermax 105 needs the 105A cap, Retaining Cap 105A T-11422, used as a set with a 105A shield and nozzle. If your Powermax 105 runs at 85A or below, T-11423 is the right cap.

Alternative SKU: 220854
Alternative SKU: 220854-UR

Part Number/SKU: T-11423

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Thermacut T-11423 retaining cap, 45/65/85A
Replaces Hypertherm 220854-UR
Sold each
One cap for shielded and unshielded cutting, gouging and FineCut up to 85A
Rated up to 85A. The 105A cap is T-11422
Ohmic version: T-11931

Part number (SKU)	T-11423
Replaces Hypertherm	220854-UR
Brand	Thermacut
Part type	Retaining cap
Amperage	45/65/85A (up to 85A)
Standard pack	1
Torch	Hypertherm Duramax hand and machine torch
Systems	Hypertherm Powermax 65, 85, 105
Setups	Shielded and unshielded cutting, gouging 65/85A, FineCut
Ohmic version	T-11931
105A version	T-11422

SKU	T-11423
Brand	THERMACUT
Shipping Weight	0.20kg
Shipping Width	0.150m
Shipping Height	0.100m
Shipping Length	0.150m
Shipping Cubic	0.002250000m3
Unit Of Measure	ea
