Thermacut T-12014 ohmic FineCut shield replaces Hypertherm 220948

This part replaces Hypertherm 220948. It's Thermacut T-12014, the ohmic FineCut shield for 45A, and it suits Hypertherm Duramax torches on Powermax 65, 85 and 105 cutting tables with ohmic sensing. Sold each.

Parts that go with it

The electrode and swirl ring are always used together as a set.

Setup	Retaining cap	Nozzle	Swirl ring
FineCut, ohmic	220953 Ohmic Retaining Cap T-11931	220930 FineCut Nozzle T-11845	220947 FineCut Swirl Ring T-12015

This setup uses 220842 Electrode 45–105A T-11883 (5 electrodes plus a swirl ring spring holder).

Choose your amperage and torch in our Powermax consumables guide to get the full set for this part.

Open the Powermax consumables guide

Common questions about the T-12014 shield

Does T-12014 replace Hypertherm 220948?

Yes. T-12014 is the Thermacut replacement for Hypertherm 220948, the ohmic FineCut shield for 45A.

Which shield do I need?

It depends on your torch, amperage and job. For cutting at 45, 65 and 85A, use 220818 Shield for Hand Torch 45/65/85A T-11406 on a hand torch or 220817 Shield for Machine Torch 45/65/85A T-11404 on a machine torch. At 105A, use 220992 Shield for Hand Torch 105A T-11841 on a hand torch or 220993 Shield for Machine Torch 105A T-11842 on a machine torch. For gouging, use 220798 Gouging Shield 65/85/105A T-12022, and for FineCut on an ohmic table, this shield.

Which Powermax machines does this shield fit?

It fits the Powermax 65, 85 and 105 on cutting tables with ohmic sensing. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.

Can I use T-12014 with the standard retaining cap?

No. With T-12014, FineCut uses the ohmic cap, 220953 Ohmic Retaining Cap 45/65/85A T-11931. For FineCut without ohmic sensing, use the 220931 FineCut Deflector T-12013 or 220955 Deflector T-11407 with 220854 Retaining Cap 45/65/85A T-11423.

Alternative SKU: 220948

Part Number/SKU: T-12014

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

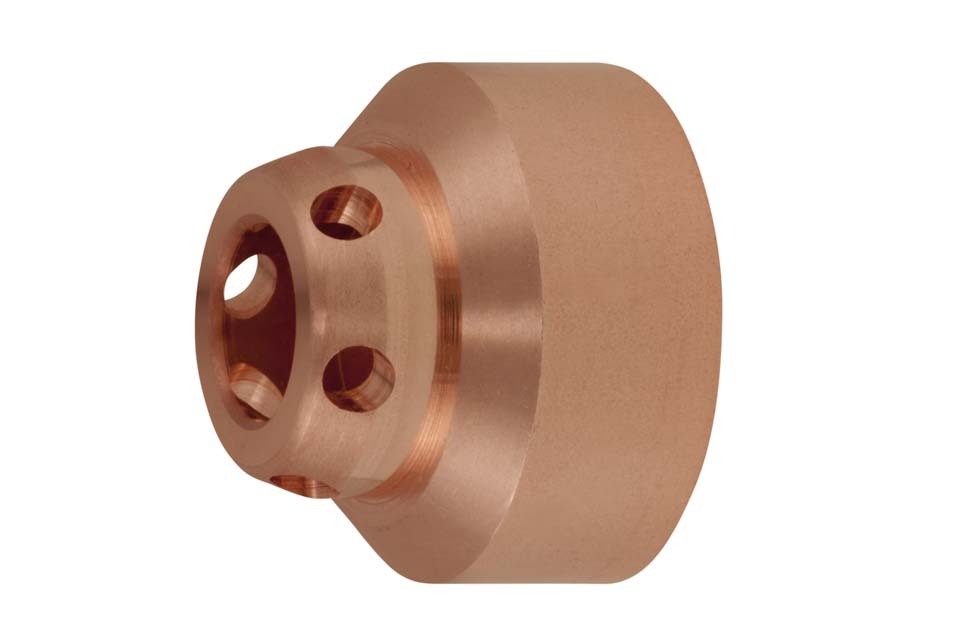

Thermacut T-12014, FineCut ohmic shield 45A
Replaces Hypertherm 220948
Sold each
For Duramax torches on Powermax 65, 85 and 105 cutting tables with ohmic sensing

Part number (SKU)	T-12014
Replaces Hypertherm	220948
Brand	Thermacut
Part type	FineCut Ohmic Shield 45A
Standard pack	1
Torch	Hypertherm Duramax torches
Systems	Hypertherm Powermax 65, 85, 105

SKU	T-12014
Brand	THERMACUT
Shipping Weight	0.20kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m
Shipping Cubic	0.008000000m3
Unit Of Measure	ea
