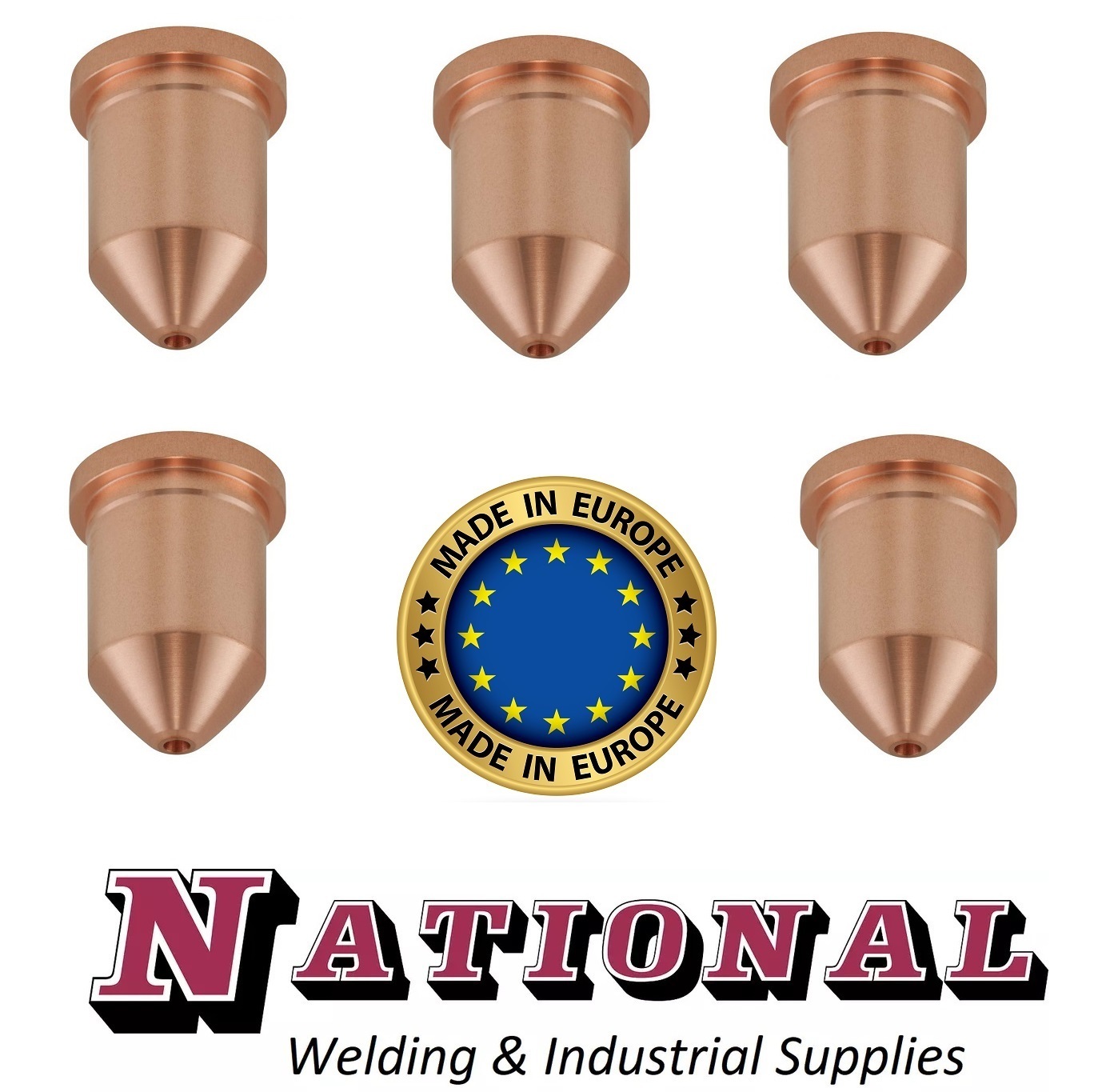

Thermacut T-11840 105A nozzle replaces Hypertherm 220990

This part replaces Hypertherm 220990-UR. It's Thermacut T-11840, the 105A nozzle, and it suits Hypertherm Duramax hand and machine torches on the Powermax 105. Pack of 5.

Parts that go with it

At 105A, the shield, retaining cap and nozzle must be used together as a set. The electrode and swirl ring are always used together as a set.

This setup uses 220842 Electrode 45–105A T-11883 (5 electrodes plus a swirl ring spring holder).

Buy it in a kit

This nozzle also comes in these kits, with the other parts it's used with.

105A Hand Torch Kit T-DMXKIT105H
1 × Shield for Hand Torch 105A, 1 × Retaining Cap 105A, 10 × Nozzle 105A, 1 × Swirl Ring 105A, 5 × Electrode

View the 105A hand torch kit
105A Machine Torch Kit T-DMXKIT105M
2 × Shield for Machine Torch 105A, 1 × Retaining Cap 105A, 10 × Nozzle 105A, 1 × Swirl Ring 105A, 5 × Electrode

View the 105A machine torch kit
Choose your amperage and torch in our Powermax consumables guide to get the full set for this part.

Open the Powermax consumables guide

Common questions about the T-11840 nozzle

Does T-11840 replace Hypertherm 220990?
Yes. T-11840 is the Thermacut replacement for Hypertherm 220990-UR, the 105A nozzle for Duramax torches. It comes in a pack of 5.
Which nozzle do I need?
Match the nozzle to your amperage and job. For cutting, use 220941 Nozzle 45A T-11378 at 45A, 220819 Nozzle 65A T-11377 at 65A, 220816 Nozzle 85A T-11405 at 85A and this nozzle at 105A. For gouging, use 220797 Gouging Nozzle 65/85A T-12021 at 65 or 85A and 220991 Gouging Nozzle 105A T-12023 at 105A. For FineCut on thin sheet, use 220930 FineCut Nozzle 45A T-11845.
Which Powermax machines does this nozzle fit?
It fits the Powermax 105 with a Duramax hand or machine torch. It's a 105A part, so it isn't for the Powermax 65 or 85. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.
Does T-11840 work with the ohmic cap?
Yes. At 105A, use it with Ohmic Retaining Cap 105A T-11932 for ohmic sensing, or Retaining Cap 105A T-11422 without it.
Alternative SKU: 220990
Alternative SKU: 220990-UR

Part Number/SKU: T-11840

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

  • Thermacut T-11840, nozzle 105A
  • Replaces Hypertherm 220990-UR
  • Pack of 5
  • For Duramax hand and machine torches on the Powermax 105
Part number (SKU) T-11840
Replaces Hypertherm 220990-UR
Brand Thermacut
Part type Nozzle 105A
Standard pack 5
Torch Hypertherm Duramax hand and machine torches
Systems Hypertherm Powermax 105
Kits T-DMXKIT105H, T-DMXKIT105M
SKU T-11840
Brand THERMACUT
Shipping Weight 0.20kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.150m
Shipping Cubic 0.003375000m3
Unit Of Measure Pk
