Thermacut T-11930 105A swirl ring replaces Hypertherm 220994

This part replaces Hypertherm 220994-UR. It's Thermacut T-11930, the 105A swirl ring, and it suits Hypertherm Duramax hand and machine torches on the Powermax 105. Sold each.

Parts that go with it

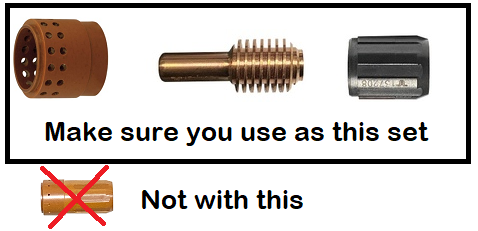

At 105A, the shield, retaining cap and nozzle must be used together as a set. The electrode and swirl ring are always used together as a set.

Setup	Shield or deflector	Retaining cap	Nozzle
Gouging, 105A	220798 Gouging Shield T-12022	Retaining Cap 105A T-11422	220991 Gouging Nozzle 105A T-12023
Shielded cutting, 105A	220992 Shield for Hand Torch 105A T-11841 220993 Shield for Machine Torch 105A T-11842	Retaining Cap 105A T-11422 Ohmic Retaining Cap 105A T-11932	220990 Nozzle 105A T-11840

Every setup uses 220842 Electrode 45–105A T-11883 (5 electrodes plus a swirl ring spring holder).

Buy it in a kit

This swirl ring also comes in these kits, with the other parts it's used with.

105A Hand Torch Kit T-DMXKIT105H

1 × Shield for Hand Torch 105A, 1 × Retaining Cap 105A, 10 × Nozzle 105A, 1 × Swirl Ring 105A, 5 × Electrode

View the 105A hand torch kit

105A Machine Torch Kit T-DMXKIT105M

2 × Shield for Machine Torch 105A, 1 × Retaining Cap 105A, 10 × Nozzle 105A, 1 × Swirl Ring 105A, 5 × Electrode

View the 105A machine torch kit

105A Gouging Kit T-DMXKIT105HG

2 × Gouging Shield, 1 × Retaining Cap 105A, 10 × Gouging Nozzle 105A, 1 × Swirl Ring 105A, 5 × Electrode

View the 105A gouging kit

Choose your amperage and torch in our Powermax consumables guide to get the full set for this part.

Open the Powermax consumables guide

Common questions about the T-11930 swirl ring

Does T-11930 replace Hypertherm 220994?

Yes. T-11930 is the Thermacut replacement for Hypertherm 220994-UR, the 105A swirl ring for Duramax torches.

Which swirl ring do I need?

Use 220857 Swirl Ring 10–85A T-11861 up to 85A and this swirl ring at 105A. For FineCut, 220947 FineCut Swirl Ring 45A T-12015 gives the best cut quality, although the other two will also fit.

Which Powermax machines does this swirl ring fit?

It fits the Powermax 105 with a Duramax hand or machine torch. It's a 105A part, so it isn't for the Powermax 65 or 85. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.

Alternative SKU: 220994
Alternative SKU: 220994-UR

Part Number/SKU: T-11930

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

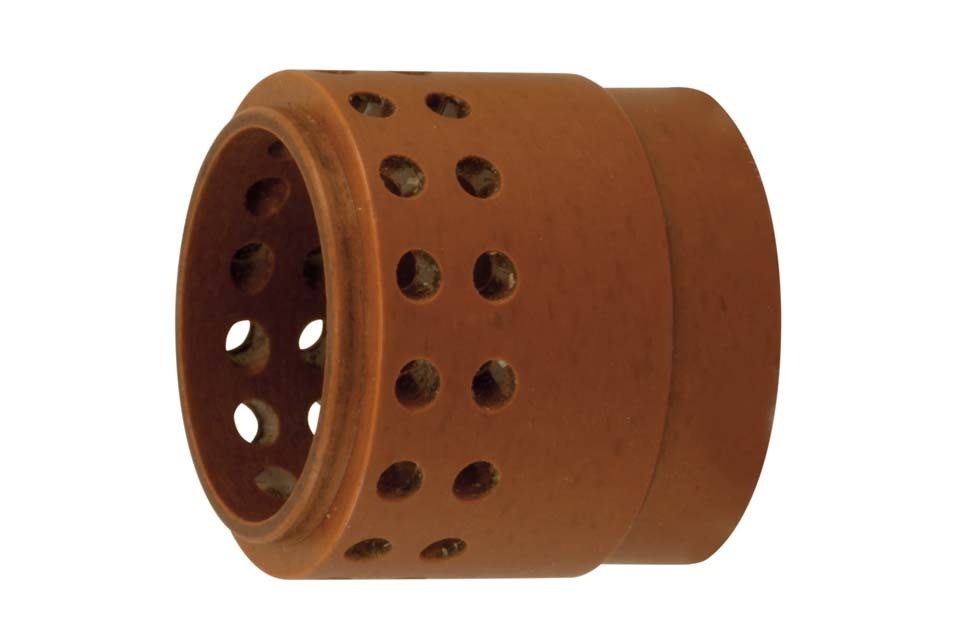

Thermacut T-11930, swirl ring 105A
Replaces Hypertherm 220994-UR
Sold each
For Duramax hand and machine torches on the Powermax 105

Part number (SKU)	T-11930
Replaces Hypertherm	220994-UR
Brand	Thermacut
Part type	Swirl Ring 105A
Standard pack	1
Torch	Hypertherm Duramax hand and machine torches
Systems	Hypertherm Powermax 105
Kits	T-DMXKIT105H, T-DMXKIT105M, T-DMXKIT105HG

SKU	T-11930
Brand	THERMACUT
Shipping Weight	0.20kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m
Shipping Cubic	0.008000000m3
Unit Of Measure	ea
