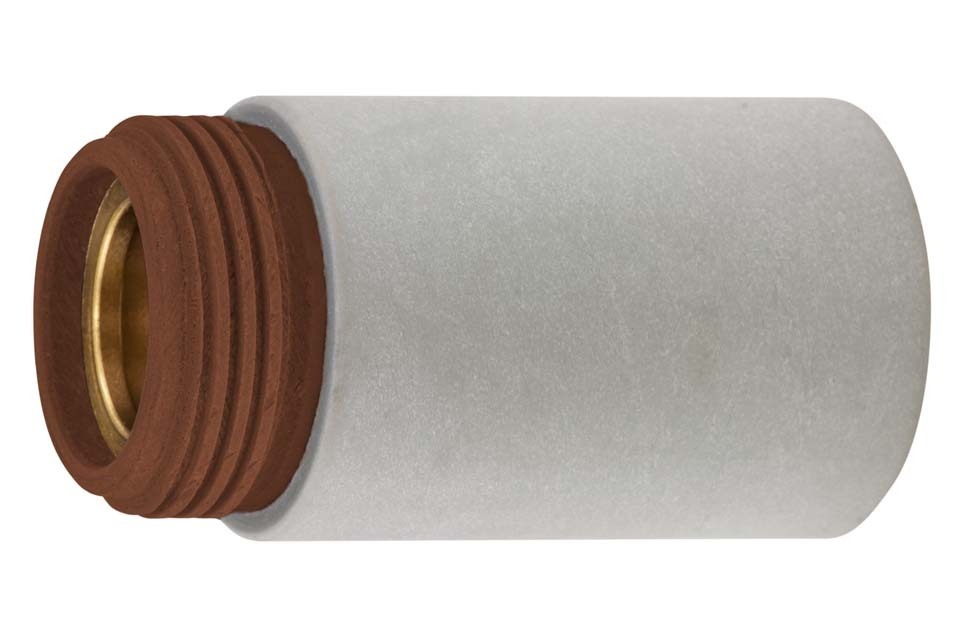

Thermacut T-11422 retaining cap for 105A Duramax torches

This part is Thermacut T-11422, the retaining cap for 105A. It suits Hypertherm Duramax hand and machine torches on the Powermax 105. Sold each.

Parts that go with it

At 105A the shield, retaining cap and nozzle must be used together as a set, and so must the electrode and swirl ring.

Setup	Shield	Nozzle	Swirl ring
Shielded cutting, 105A	220992 Shield for Hand Torch 105A T-11841 220993 Shield for Machine Torch 105A T-11842	220990 Nozzle 105A T-11840	220994 Swirl Ring 105A T-11930
Gouging, 105A	220798 Gouging Shield T-12022	220991 Gouging Nozzle 105A T-12023	220994 Swirl Ring 105A T-11930

Both setups use 220842 Electrode 45–105A T-11883 (5 electrodes plus a swirl ring spring holder). Nozzles come in packs of 5.

Buy it in a kit

This cap also comes in these kits, with the other parts it's used with.

105A Hand Torch Kit T-DMXKIT105H

1 × Shield for Hand Torch 105A, 1 × Retaining Cap 105A, 10 × Nozzle 105A, 1 × Swirl Ring 105A, 5 × Electrode

View the 105A hand torch kit

105A Machine Torch Kit T-DMXKIT105M

2 × Shield for Machine Torch 105A, 1 × Retaining Cap 105A, 10 × Nozzle 105A, 1 × Swirl Ring 105A, 5 × Electrode

View the 105A machine torch kit

105A Gouging Kit T-DMXKIT105HG

2 × Gouging Shield, 1 × Retaining Cap 105A, 10 × Gouging Nozzle 105A, 1 × Swirl Ring 105A, 5 × Electrode

View the 105A gouging kit

Pick your machine, torch and job in our Powermax consumables guide to see the complete 105A set.

Open the Powermax consumables guide

Common questions about the T-11422 retaining cap

Which retaining cap do I need?

It depends on your amperage and whether your table uses ohmic sensing. Up to 85A, use 220854 Retaining Cap 45/65/85A T-11423, or 220953 Ohmic Retaining Cap 45/65/85A T-11931 for ohmic sensing. At 105A, use this cap, or Ohmic Retaining Cap 105A T-11932 for ohmic sensing. If a wire from your table's height control clips onto the cap, you need an ohmic cap.

Which Powermax machines does this retaining cap fit?

It fits the Powermax 105 with a Duramax hand or machine torch. It's a 105A part, so it isn't for the Powermax 65 or 85. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.

Part Number/SKU: T-11422

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Thermacut T-11422 retaining cap, 105A
Sold each
For 105A shielded cutting and gouging on Duramax torches, Powermax 105
Used as a set with the 105A shield and nozzle
Ohmic version: T-11932
Cap for 45/65/85A: T-11423

Part number (SKU)	T-11422
Brand	Thermacut
Part type	Retaining cap
Amperage	105A
Standard pack	1
Torch	Hypertherm Duramax hand and machine torch
System	Hypertherm Powermax 105
Ohmic version	T-11932
Kits	T-DMXKIT105H, T-DMXKIT105M, T-DMXKIT105HG

SKU	T-11422
Brand	THERMACUT
Shipping Weight	0.20kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m
Shipping Cubic	0.008000000m3
Unit Of Measure	ea
