Thermacut 105A machine torch kit for Hypertherm Duramax torches

This kit is a full set of Thermacut consumables for shielded machine cutting at 105A. It suits Hypertherm Duramax machine torches on the Powermax 105.

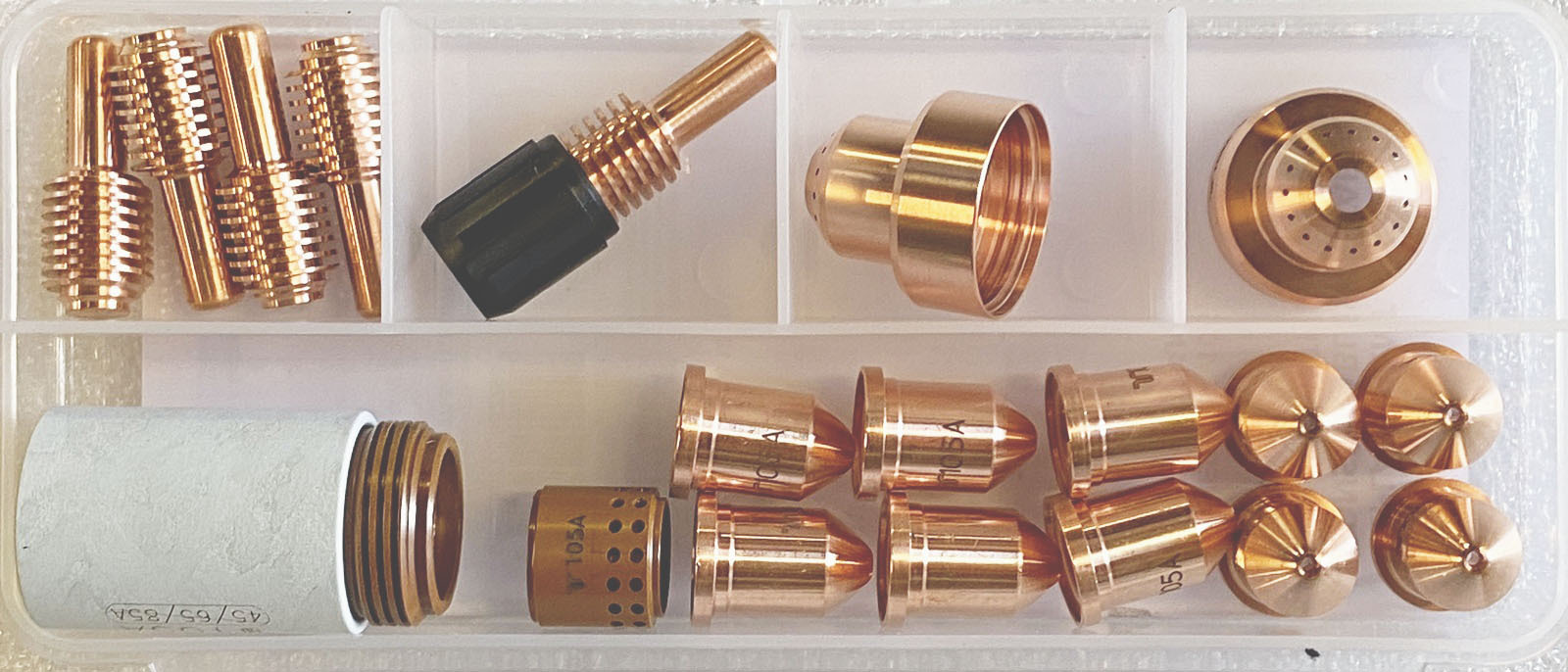

What's in the kit

Qty	Part
2	220993 Shield for Machine Torch 105A T-11842
1	Retaining Cap 105A T-11422
10	220990 Nozzle 105A T-11840
1	220994 Swirl Ring 105A T-11930
5	220842 Electrode 45–105A T-11883

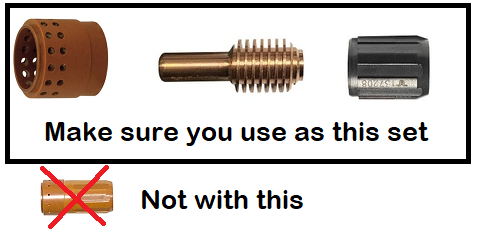

The shield, retaining cap and nozzle are used together as a set, and so are the electrode and swirl ring. Every part is also sold on its own.

Not sure which kit you need? Pick your machine, torch and job in our Powermax consumables guide.

Open the Powermax consumables guide

Common questions about the T-DMXKIT105M kit

Which Powermax machines does this kit fit?

It fits the Powermax 105 with a Duramax machine torch, cutting at 105A. It's a 105A set, so it isn't for the Powermax 65 or 85. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.

Which kit do I need?

It depends on your amperage, torch and job. For cutting, there are hand and machine kits at 65A (65A Hand Torch Kit T-DMXKIT65H and 65A Machine Torch Kit T-DMXKIT65M), 85A (85A Hand Torch Kit T-DMXKIT85H and 85A Machine Torch Kit T-DMXKIT85M) and 105A (105A Hand Torch Kit T-DMXKIT105H and this kit), plus a 45A machine kit (45A Machine Torch Kit T-DMXKIT45M). For gouging, use 65/85A Gouging Kit T-DMXKIT6585HG at 65 or 85A and 105A Gouging Kit T-DMXKIT105HG at 105A. For thin sheet, use FineCut Kit T-DMXKITFC.

What's the difference between the hand and machine kit?

The shields. This kit has 2 × 220993 Shield for Machine Torch 105A T-11842. The hand torch kit, 105A Hand Torch Kit T-DMXKIT105H, has 1 × 220992 Shield for Hand Torch 105A T-11841. The cap, nozzles, swirl ring and electrodes are the same.

Part Number/SKU: T-DMXKIT105M

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Thermacut consumable kit for 105A machine torch cutting
2 × Shield for Machine Torch 105A T-11842 (replaces 220993-UR)
1 × Retaining Cap 105A T-11422
10 × Nozzle 105A T-11840 (replaces 220990-UR)
1 × Swirl Ring 105A T-11930 (replaces 220994-UR)
5 × Electrode 45–105A T-11883 (replaces 220842x5)

Part number (SKU)	T-DMXKIT105M
Brand	Thermacut
Type	Consumable kit, 105A machine torch
Torch	Hypertherm Duramax machine torches
Systems	Hypertherm Powermax 105
Contents	2 × T-11842, 1 × T-11422, 10 × T-11840, 1 × T-11930, 5 × T-11883

SKU	T-DMXKIT105M
Brand	THERMACUT
Shipping Weight	0.53kg
Shipping Width	0.200m
Shipping Height	0.100m
Shipping Length	0.350m
Shipping Cubic	0.007000000m3
Unit Of Measure	ea
