Thermacut 65A hand torch kit for Hypertherm Duramax torches

This kit is a full set of Thermacut consumables for shielded hand cutting at 65A. It suits Hypertherm Duramax hand torches on Powermax 65, 85 and 105.

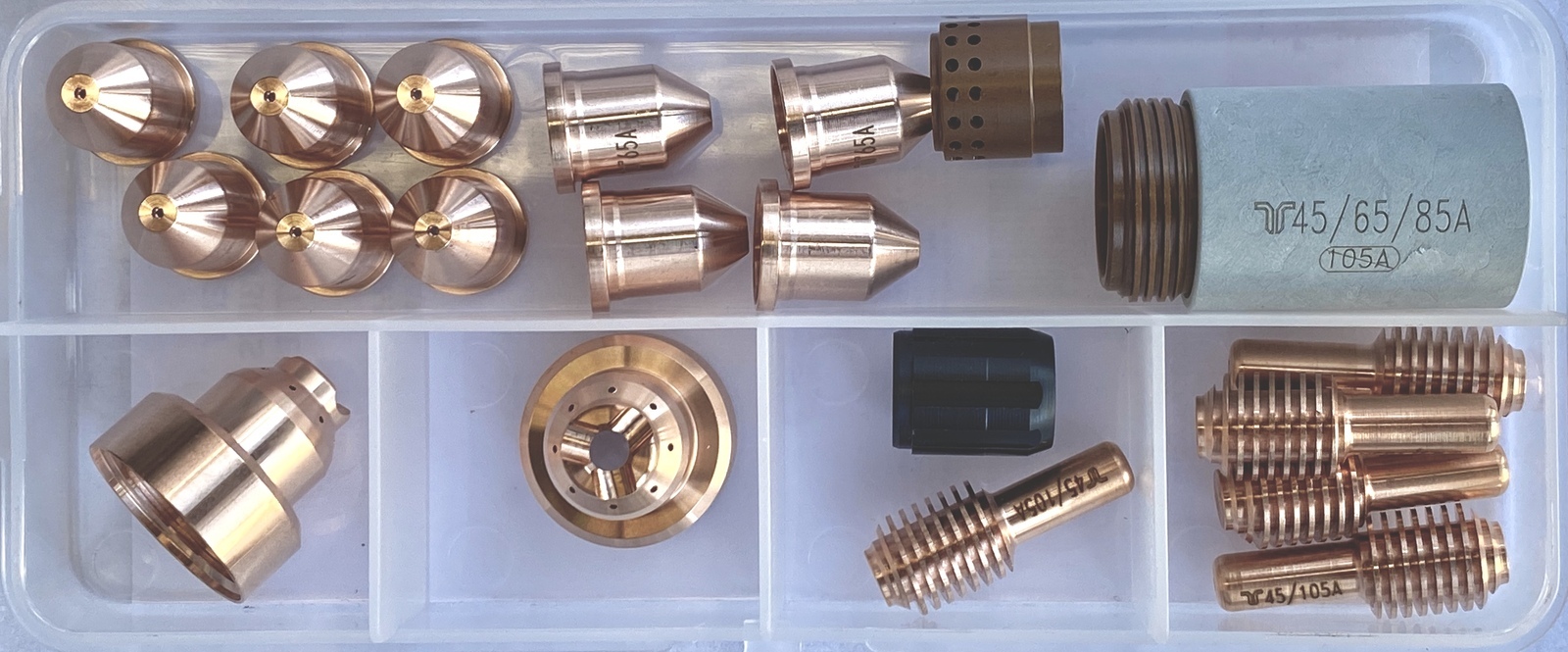

What's in the kit

Qty	Part
2	220818 Shield for Hand Torch 45/65/85A T-11406
1	220854 Retaining Cap 45/65/85A T-11423
10	220819 Nozzle 65A T-11377
1	220857 Swirl Ring 10–85A T-11861
5	220842 Electrode 45–105A T-11883

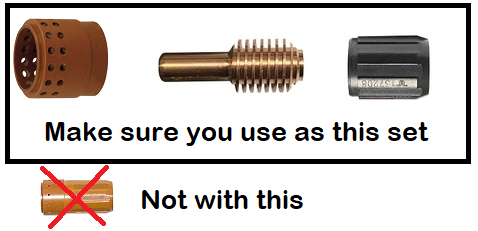

The shield and nozzle are used together as a set, and so are the electrode and swirl ring. Every part is also sold on its own.

Not sure which kit you need? Pick your machine, torch and job in our Powermax consumables guide.

Open the Powermax consumables guide

Common questions about the T-DMXKIT65H kit

Which Powermax machines does this kit fit?

It fits the Powermax 65, 85 and 105 with a Duramax hand torch, cutting at 65A. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.

Which kit do I need?

It depends on your amperage, torch and job. For cutting, there are hand and machine kits at 65A (this kit and 65A Machine Torch Kit T-DMXKIT65M), 85A (85A Hand Torch Kit T-DMXKIT85H and 85A Machine Torch Kit T-DMXKIT85M) and 105A (105A Hand Torch Kit T-DMXKIT105H and 105A Machine Torch Kit T-DMXKIT105M), plus a 45A machine kit (45A Machine Torch Kit T-DMXKIT45M). For gouging, use 65/85A Gouging Kit T-DMXKIT6585HG at 65 or 85A and 105A Gouging Kit T-DMXKIT105HG at 105A. For thin sheet, use FineCut Kit T-DMXKITFC.

What's the difference between the hand and machine kit?

The shields. This kit has 2 × 220818 Shield for Hand Torch 45/65/85A T-11406. The machine torch kit, 65A Machine Torch Kit T-DMXKIT65M, has 2 × 220817 Shield for Machine Torch 45/65/85A T-11404. The cap, nozzles, swirl ring and electrodes are the same.

Part Number/SKU: T-DMXKIT65H

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Thermacut consumable kit for 65A hand torch cutting
2 × Shield for Hand Torch 45/65/85A T-11406 (replaces 220818-UR)
1 × Retaining Cap 45/65/85A T-11423 (replaces 220854-UR)
10 × Nozzle 65A T-11377 (replaces 220819-UR)
1 × Swirl Ring 10–85A T-11861 (replaces 220857-UR)
5 × Electrode 45–105A T-11883 (replaces 220842x5)

Part number (SKU)	T-DMXKIT65H
Brand	Thermacut
Type	Consumable kit, 65A hand torch
Torch	Hypertherm Duramax hand torches
Systems	Hypertherm Powermax 65, 85, 105
Contents	2 × T-11406, 1 × T-11423, 10 × T-11377, 1 × T-11861, 5 × T-11883

SKU	T-DMXKIT65H
Brand	THERMACUT
Shipping Weight	0.84kg
Shipping Width	0.150m
Shipping Height	0.150m
Shipping Length	0.200m
Shipping Cubic	0.004500000m3
Unit Of Measure	ea
