Thermacut T-11378 45A nozzle replaces Hypertherm 220941

This part replaces Hypertherm 220941-UR. It's Thermacut T-11378, the 45A nozzle, and it suits Hypertherm Duramax hand and machine torches on Powermax 65, 85 and 105. Pack of 5.

Parts that go with it

Up to 85A, the shield or deflector and the nozzle must be used together as a set. The electrode and swirl ring are always used together as a set.

Setup	Shield or deflector	Retaining cap	Swirl ring
Shielded cutting, 45/65/85A	220818 Shield for Hand Torch T-11406 220817 Shield for Machine Torch T-11404	220854 Retaining Cap T-11423 220953 Ohmic Retaining Cap T-11931	220857 Swirl Ring T-11861
Unshielded cutting, 45/65/85A	220955 Deflector T-11407	220854 Retaining Cap T-11423	220857 Swirl Ring T-11861

Every setup uses 220842 Electrode 45–105A T-11883 (5 electrodes plus a swirl ring spring holder).

Buy it in a kit

This nozzle also comes in this kit, with the other parts it's used with.

45A Machine Torch Kit T-DMXKIT45M

2 × Shield for Machine Torch, 1 × Retaining Cap, 10 × Nozzle 45A, 1 × Swirl Ring, 5 × Electrode

View the 45A machine torch kit

Choose your amperage and torch in our Powermax consumables guide to get the full set for this part.

Open the Powermax consumables guide

Common questions about the T-11378 nozzle

Does T-11378 replace Hypertherm 220941?

Yes. T-11378 is the Thermacut replacement for Hypertherm 220941-UR, the 45A nozzle for Duramax torches. It comes in a pack of 5.

Which nozzle do I need?

Match the nozzle to your amperage and job. For cutting, use this nozzle at 45A, 220819 Nozzle 65A T-11377 at 65A, 220816 Nozzle 85A T-11405 at 85A and 220990 Nozzle 105A T-11840 at 105A. For gouging, use 220797 Gouging Nozzle 65/85A T-12021 at 65 or 85A and 220991 Gouging Nozzle 105A T-12023 at 105A. For FineCut on thin sheet, use 220930 FineCut Nozzle 45A T-11845.

Which Powermax machines does this nozzle fit?

It fits the Powermax 65, 85 and 105 with a Duramax hand or machine torch. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.

Is T-11378 the same as the FineCut 45A nozzle?

No. T-11378 is for standard shielded and unshielded cutting. FineCut uses its own nozzle, 220930 FineCut Nozzle 45A T-11845.

Does T-11378 work with the ohmic cap?

Yes, for shielded cutting. Fit it with 220953 Ohmic Retaining Cap 45/65/85A T-11931 and a shield. For unshielded cutting, use the standard cap, 220854 Retaining Cap 45/65/85A T-11423.

Alternative SKU: 220941
Alternative SKU: 220941-UR

Part Number/SKU: T-11378

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

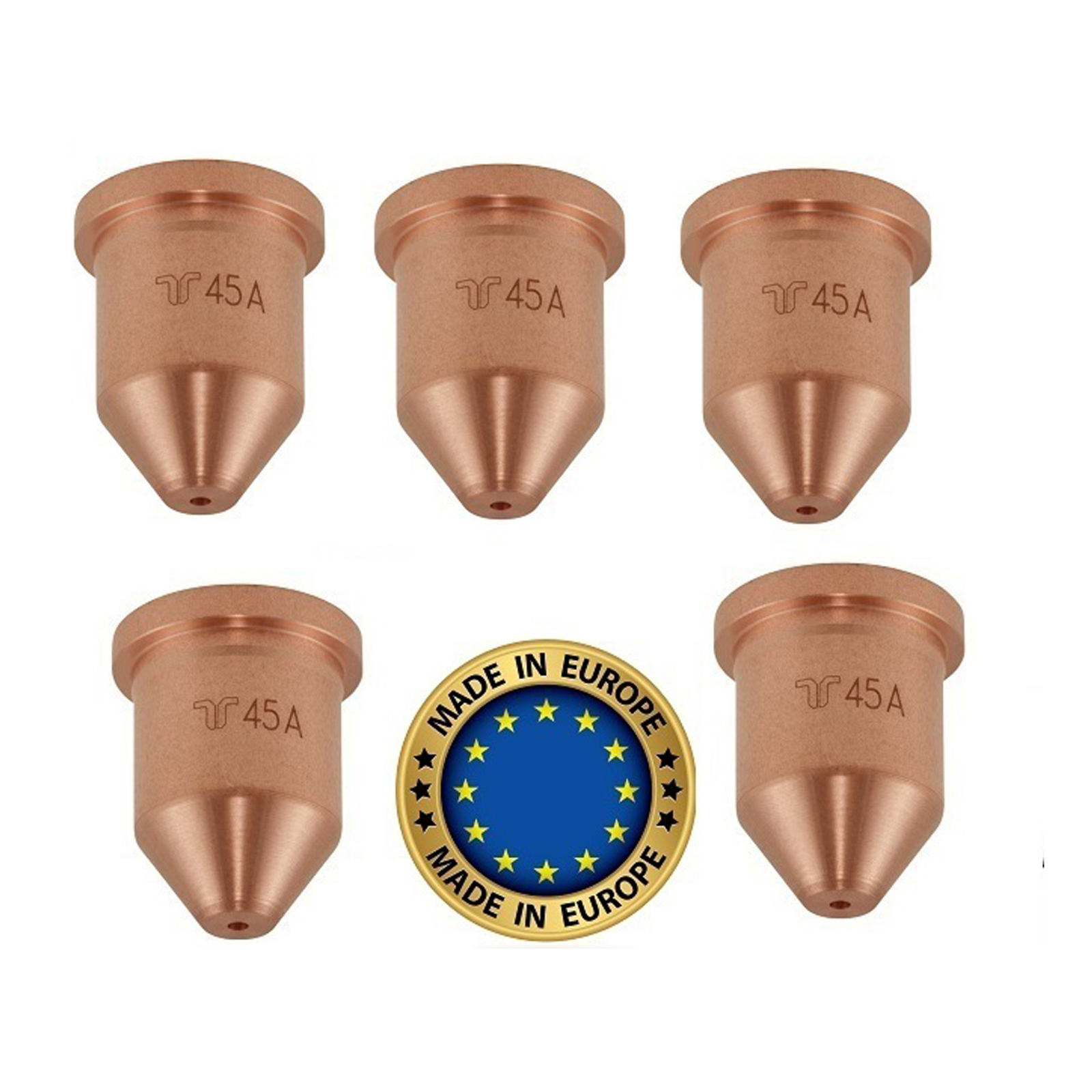

Thermacut T-11378, nozzle 45A
Replaces Hypertherm 220941-UR
Pack of 5
For Duramax hand and machine torches on Powermax 65, 85 and 105

Part number (SKU)	T-11378
Replaces Hypertherm	220941-UR
Brand	Thermacut
Part type	Nozzle 45A
Standard pack	5
Torch	Hypertherm Duramax hand and machine torches
Systems	Hypertherm Powermax 65, 85, 105
Kits	T-DMXKIT45M

SKU	T-11378
Brand	THERMACUT
Shipping Weight	0.20kg
Shipping Width	0.200m
Shipping Height	0.050m
Shipping Length	0.200m
Shipping Cubic	0.002000000m3
Unit Of Measure	ea
