Thermacut T-11861 swirl ring replaces Hypertherm 220857

This part replaces Hypertherm 220857-UR. It's Thermacut T-11861, the swirl ring for 10 to 85A, and it suits Hypertherm Duramax hand and machine torches on Powermax 65, 85 and 105. Sold each.

Parts that go with it

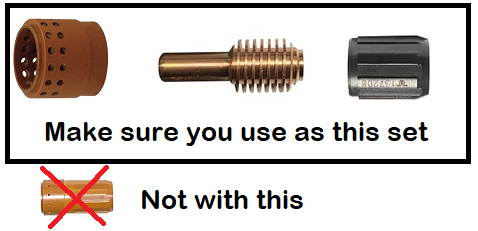

Up to 85A, the shield or deflector and the nozzle must be used together as a set. The electrode and swirl ring are always used together as a set.

Setup	Shield or deflector	Retaining cap	Nozzle
Shielded cutting, 45/65/85A	220818 Shield for Hand Torch T-11406 220817 Shield for Machine Torch T-11404	220854 Retaining Cap T-11423 220953 Ohmic Retaining Cap T-11931	220941 Nozzle 45A T-11378 220819 Nozzle 65A T-11377 220816 Nozzle 85A T-11405
Unshielded cutting, 45/65/85A	220955 Deflector T-11407	220854 Retaining Cap T-11423	220941 Nozzle 45A T-11378 220819 Nozzle 65A T-11377 220816 Nozzle 85A T-11405
Gouging, 65/85A	220798 Gouging Shield T-12022	220854 Retaining Cap T-11423	220797 Gouging Nozzle T-12021

Every setup uses 220842 Electrode 45–105A T-11883 (5 electrodes plus a swirl ring spring holder).

Buy it in a kit

This swirl ring also comes in these kits, with the other parts it's used with.

45A Machine Torch Kit T-DMXKIT45M

2 × Shield for Machine Torch, 1 × Retaining Cap, 10 × Nozzle 45A, 1 × Swirl Ring, 5 × Electrode

View the 45A machine torch kit

65A Hand Torch Kit T-DMXKIT65H

2 × Shield for Hand Torch, 1 × Retaining Cap, 10 × Nozzle 65A, 1 × Swirl Ring, 5 × Electrode

View the 65A hand torch kit

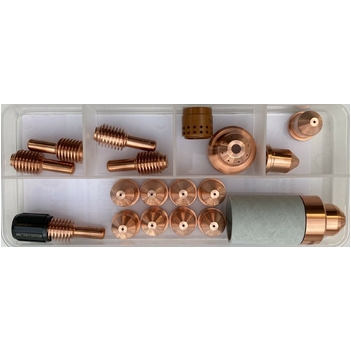

65A Machine Torch Kit T-DMXKIT65M

2 × Shield for Machine Torch, 1 × Retaining Cap, 10 × Nozzle 65A, 1 × Swirl Ring, 5 × Electrode

View the 65A machine torch kit

85A Hand Torch Kit T-DMXKIT85H

2 × Shield for Hand Torch, 1 × Retaining Cap, 10 × Nozzle 85A, 1 × Swirl Ring, Electrodes

View the 85A hand torch kit

85A Machine Torch Kit T-DMXKIT85M

2 × Shield for Machine Torch, 1 × Retaining Cap, 10 × Nozzle 85A, 1 × Swirl Ring, 5 × Electrode

View the 85A machine torch kit

65/85A Gouging Kit T-DMXKIT6585HG

2 × Gouging Shield, 1 × Retaining Cap, 10 × Gouging Nozzle, 1 × Swirl Ring, 5 × Electrode

View the 65/85A gouging kit

Choose your amperage and torch in our Powermax consumables guide to get the full set for this part.

Open the Powermax consumables guide

Common questions about the T-11861 swirl ring

Does T-11861 replace Hypertherm 220857?

Yes. T-11861 is the Thermacut replacement for Hypertherm 220857-UR, the 10–85A swirl ring for Duramax torches.

Which swirl ring do I need?

Use this swirl ring up to 85A and 220994 Swirl Ring 105A T-11930 at 105A. For FineCut, 220947 FineCut Swirl Ring 45A T-12015 gives the best cut quality, although the other two will also fit.

Which Powermax machines does this swirl ring fit?

It fits the Powermax 65, 85 and 105 with a Duramax hand or machine torch. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.

Alternative SKU: 220857
Alternative SKU: 220857-UR

Part Number/SKU: T-11861

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Thermacut T-11861, swirl ring 10–85A
Replaces Hypertherm 220857-UR
Sold each
For Duramax hand and machine torches on Powermax 65, 85 and 105

Part number (SKU)	T-11861
Replaces Hypertherm	220857-UR
Brand	Thermacut
Part type	Swirl Ring 10–85A
Standard pack	1
Torch	Hypertherm Duramax hand and machine torches
Systems	Hypertherm Powermax 65, 85, 105
Kits	T-DMXKIT45M, T-DMXKIT65H, T-DMXKIT65M, T-DMXKIT85H, T-DMXKIT85M, T-DMXKIT6585HG

SKU	T-11861
Brand	THERMACUT
Shipping Weight	0.20kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m
Shipping Cubic	0.008000000m3
Unit Of Measure	ea
