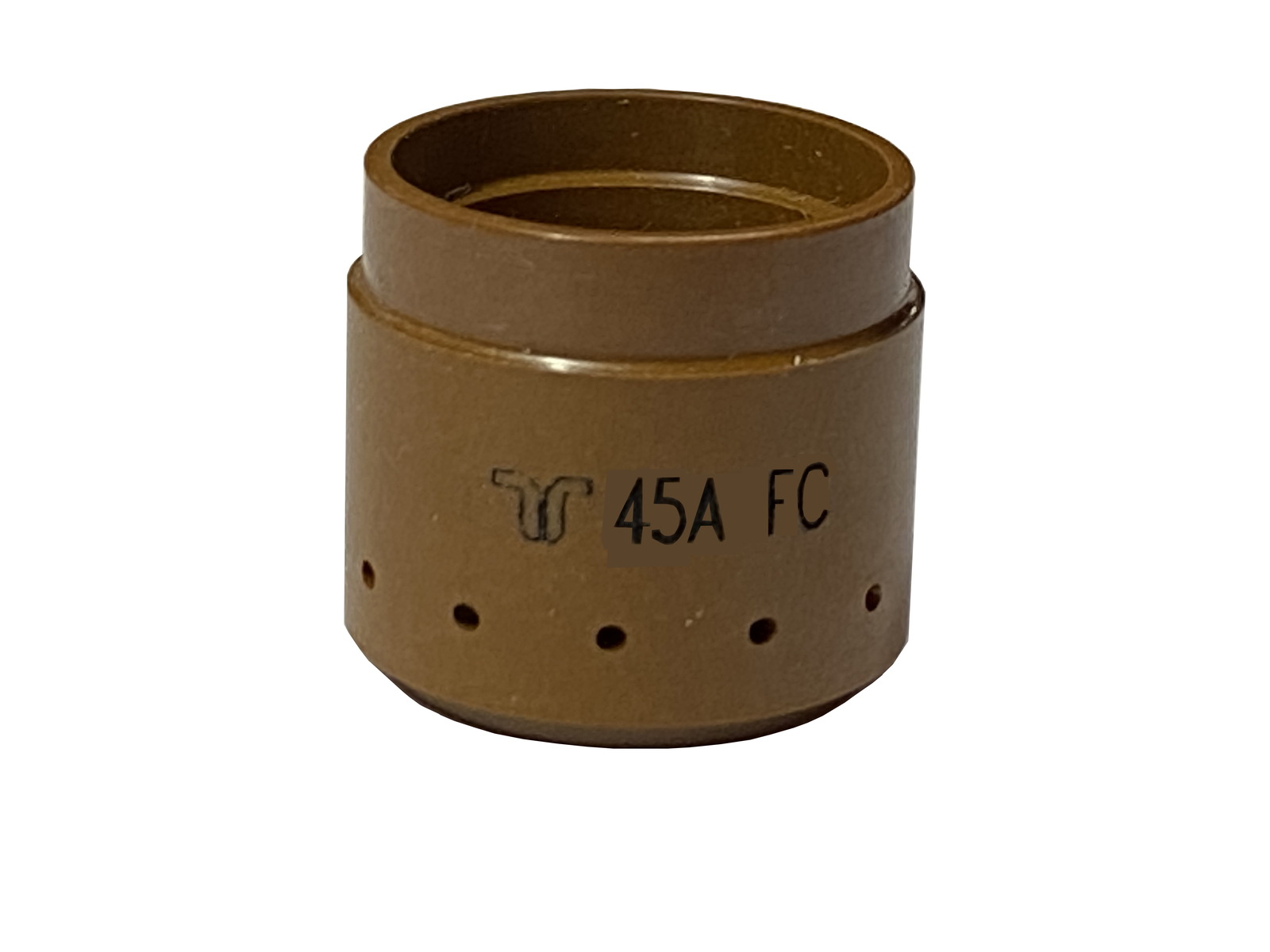

Thermacut T-12015 FineCut swirl ring replaces Hypertherm 220947

This part replaces Hypertherm 220947-UR. It's Thermacut T-12015, the FineCut swirl ring for 45A, and it suits Hypertherm Duramax torches on Powermax 65, 85 and 105. Sold each.

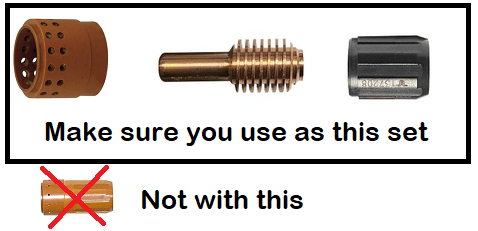

Parts that go with it

The electrode and swirl ring are always used together as a set.

Setup Shield or deflector Retaining cap Nozzle
FineCut 220931 FineCut Deflector T-12013 or 220955 Deflector T-11407 220854 Retaining Cap T-11423 220930 FineCut Nozzle T-11845
FineCut, ohmic 220948 FineCut Ohmic Shield T-12014 220953 Ohmic Retaining Cap T-11931 220930 FineCut Nozzle T-11845

Every setup uses 220842 Electrode 45–105A T-11883 (5 electrodes plus a swirl ring spring holder).

Buy it in a kit

This swirl ring also comes in this kit, with the other parts it's used with.

FineCut Kit T-DMXKITFC
2 × FineCut Deflector, 1 × Retaining Cap, 10 × FineCut Nozzle, 1 × FineCut Swirl Ring, 5 × Electrode

View the FineCut kit
Choose your amperage and torch in our Powermax consumables guide to get the full set for this part.

Open the Powermax consumables guide

Common questions about the T-12015 swirl ring

Does T-12015 replace Hypertherm 220947?
Yes. T-12015 is the Thermacut replacement for Hypertherm 220947-UR, the FineCut swirl ring for Duramax torches.
Which swirl ring do I need?
Use 220857 Swirl Ring 10–85A T-11861 up to 85A and 220994 Swirl Ring 105A T-11930 at 105A. For FineCut, this swirl ring gives the best cut quality, although the other two will also fit.
Which Powermax machines does this swirl ring fit?
It fits the Powermax 65, 85 and 105 with a Duramax hand or machine torch. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.
Alternative SKU: 220947
Alternative SKU: 220947-UR

Part Number/SKU: T-12015

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

  • Thermacut T-12015, FineCut swirl ring 45A
  • Replaces Hypertherm 220947-UR
  • Sold each
  • For Duramax torches on Powermax 65, 85 and 105
Part number (SKU) T-12015
Replaces Hypertherm 220947-UR
Brand Thermacut
Part type FineCut Swirl Ring 45A
Standard pack 1
Torch Hypertherm Duramax torches
Systems Hypertherm Powermax 65, 85, 105
Kits T-DMXKITFC
SKU T-12015
Brand THERMACUT
Shipping Weight 0.20kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
Unit Of Measure ea
