Thermacut 65/85A gouging kit for Hypertherm Duramax torches

This kit is a full set of Thermacut consumables for gouging at 65 or 85A. It suits Hypertherm Duramax torches on Powermax 65, 85 and 105.

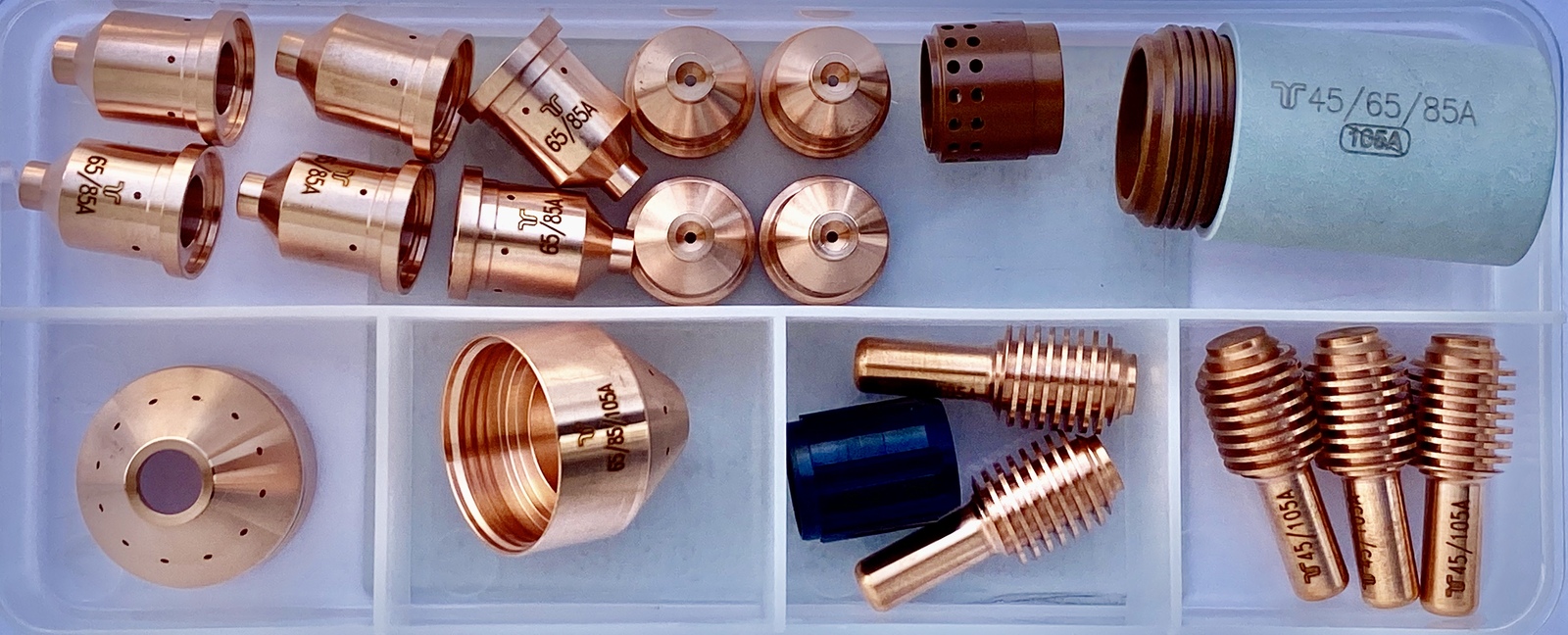

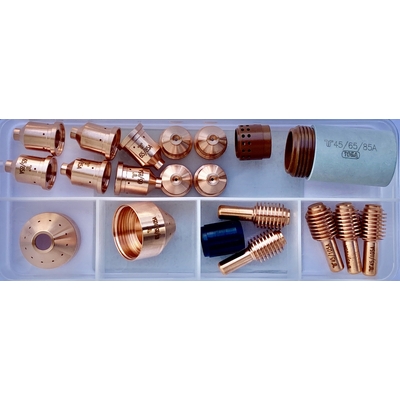

What's in the kit

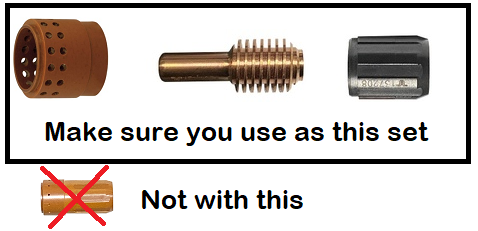

The shield and nozzle are used together as a set, and so are the electrode and swirl ring. Every part is also sold on its own.

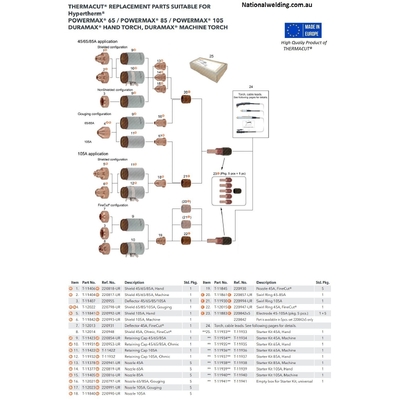

Not sure which kit you need? Pick your machine, torch and job in our Powermax consumables guide.

Open the Powermax consumables guide

Common questions about the T-DMXKIT6585HG kit

Which Powermax machines does this kit fit?
It fits the Powermax 65, 85 and 105 with a Duramax hand or machine torch, gouging at 65 or 85A. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.
Which kit do I need?
It depends on your amperage, torch and job. For cutting, there are hand and machine kits at 65A (65A Hand Torch Kit T-DMXKIT65H and 65A Machine Torch Kit T-DMXKIT65M), 85A (85A Hand Torch Kit T-DMXKIT85H and 85A Machine Torch Kit T-DMXKIT85M) and 105A (105A Hand Torch Kit T-DMXKIT105H and 105A Machine Torch Kit T-DMXKIT105M), plus a 45A machine kit (45A Machine Torch Kit T-DMXKIT45M). For gouging, use this kit at 65 or 85A and 105A Gouging Kit T-DMXKIT105HG at 105A. For thin sheet, use FineCut Kit T-DMXKITFC.
Can I gouge at 105A with this kit?
No. The retaining cap in this kit, 220854 Retaining Cap 45/65/85A T-11423, is rated up to 85A. For 105A gouging, use 105A Gouging Kit T-DMXKIT105HG.

Part Number/SKU: T-DMXKIT6585HG

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

  • Thermacut consumable kit for 65/85A gouging
  • 2 × Gouging Shield 65/85/105A T-12022 (replaces 220798-UR)
  • 1 × Retaining Cap 45/65/85A T-11423 (replaces 220854-UR)
  • 10 × Gouging Nozzle 65/85A T-12021 (replaces 220797-UR)
  • 1 × Swirl Ring 10–85A T-11861 (replaces 220857-UR)
  • 5 × Electrode 45–105A T-11883 (replaces 220842x5)
Part number (SKU) T-DMXKIT6585HG
Brand Thermacut
Type Consumable kit, 65/85A gouging
Torch Hypertherm Duramax torches
Systems Hypertherm Powermax 65, 85, 105
Contents 2 × T-12022, 1 × T-11423, 10 × T-12021, 1 × T-11861, 5 × T-11883
SKU T-DMXKIT6585HG
Brand THERMACUT
Shipping Weight 0.80kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.004000000m3
Unit Of Measure ea
