Thermacut 45A machine torch kit for Hypertherm Duramax torches

This kit is a full set of Thermacut consumables for shielded machine cutting at 45A. It suits Hypertherm Duramax machine torches on Powermax 65, 85 and 105.

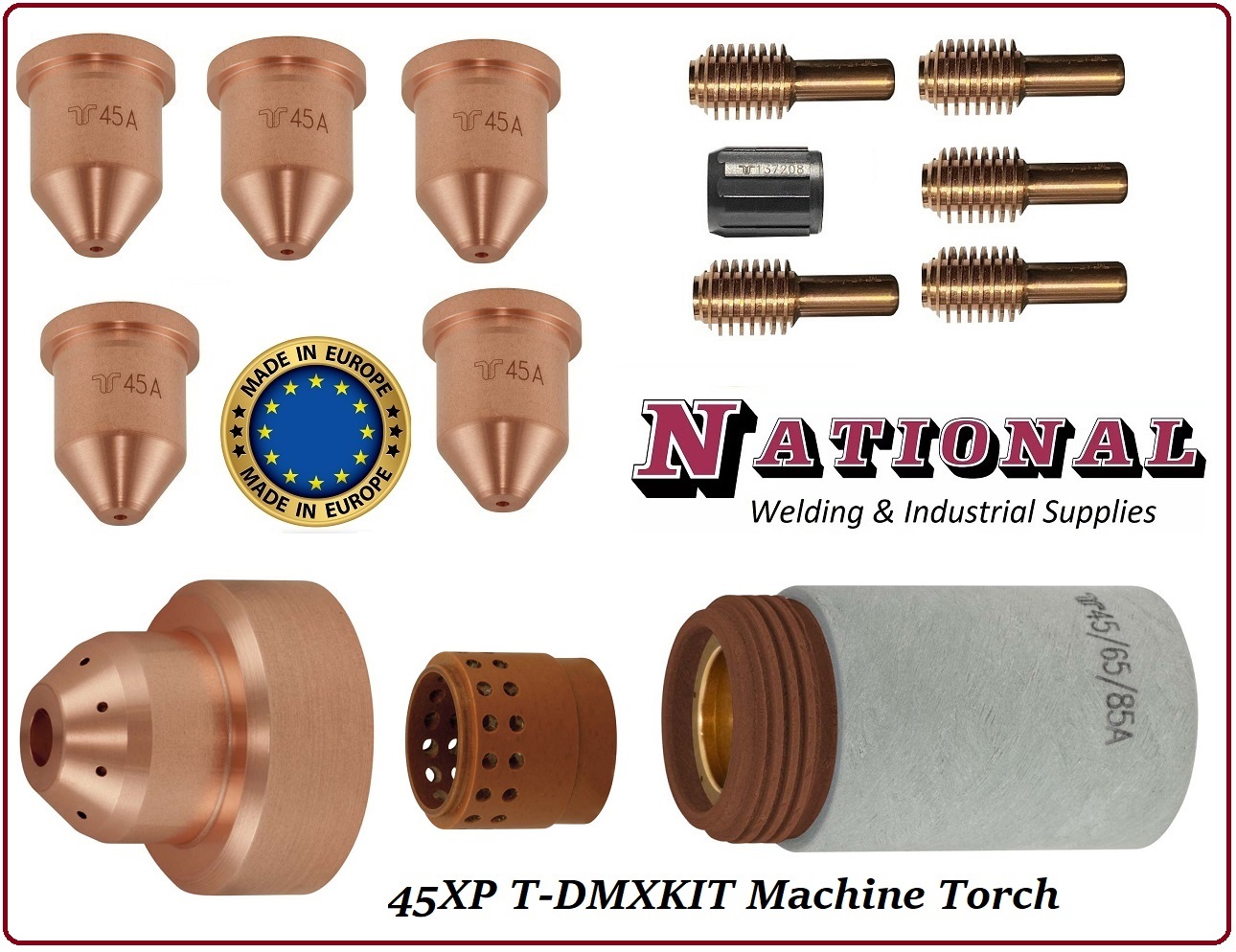

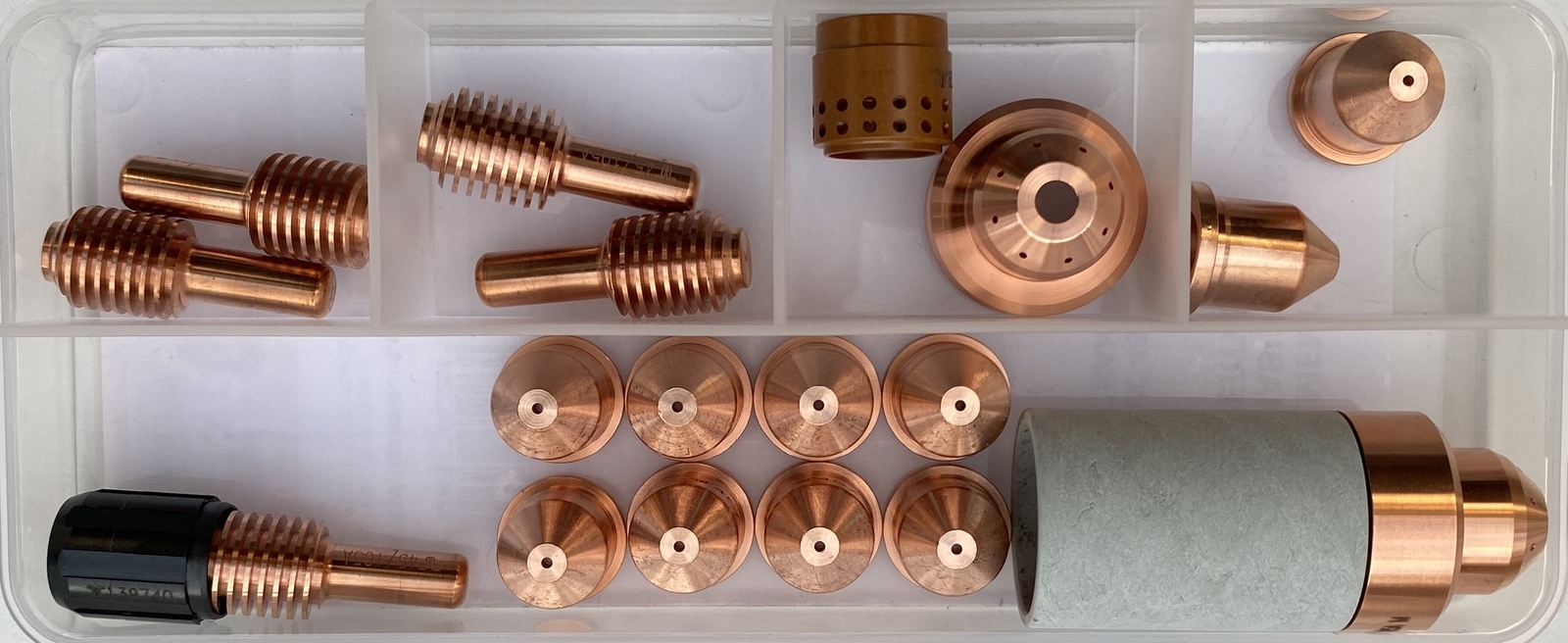

What's in the kit

Qty	Part
2	220817 Shield for Machine Torch 45/65/85A T-11404
1	220854 Retaining Cap 45/65/85A T-11423
10	220941 Nozzle 45A T-11378
1	220857 Swirl Ring 10–85A T-11861
5	220842 Electrode 45–105A T-11883

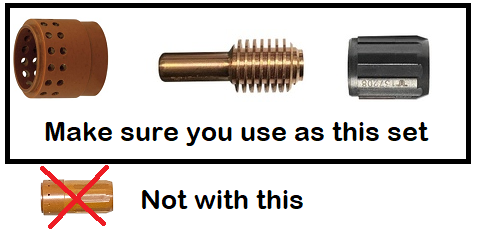

The shield and nozzle are used together as a set, and so are the electrode and swirl ring. Every part is also sold on its own.

Not sure which kit you need? Pick your machine, torch and job in our Powermax consumables guide.

Open the Powermax consumables guide

Common questions about the T-DMXKIT45M kit

Which Powermax machines does this kit fit?

It fits the Powermax 65, 85 and 105 with a Duramax machine torch, cutting at 45A. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.

Which kit do I need?

It depends on your amperage, torch and job. For cutting, there are hand and machine kits at 65A (65A Hand Torch Kit T-DMXKIT65H and 65A Machine Torch Kit T-DMXKIT65M), 85A (85A Hand Torch Kit T-DMXKIT85H and 85A Machine Torch Kit T-DMXKIT85M) and 105A (105A Hand Torch Kit T-DMXKIT105H and 105A Machine Torch Kit T-DMXKIT105M), plus a 45A machine kit (this kit). For gouging, use 65/85A Gouging Kit T-DMXKIT6585HG at 65 or 85A and 105A Gouging Kit T-DMXKIT105HG at 105A. For thin sheet, use FineCut Kit T-DMXKITFC.

Part Number/SKU: T-DMXKIT45M

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Thermacut consumable kit for 45A machine torch cutting
2 × Shield for Machine Torch 45/65/85A T-11404 (replaces 220817-UR)
1 × Retaining Cap 45/65/85A T-11423 (replaces 220854-UR)
10 × Nozzle 45A T-11378 (replaces 220941-UR)
1 × Swirl Ring 10–85A T-11861 (replaces 220857-UR)
5 × Electrode 45–105A T-11883 (replaces 220842x5)

Part number (SKU)	T-DMXKIT45M
Brand	Thermacut
Type	Consumable kit, 45A machine torch
Torch	Hypertherm Duramax machine torches
Systems	Hypertherm Powermax 65, 85, 105
Contents	2 × T-11404, 1 × T-11423, 10 × T-11378, 1 × T-11861, 5 × T-11883

SKU	T-DMXKIT45M
Brand	THERMACUT
Shipping Weight	0.20kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m
Shipping Cubic	0.008000000m3
Unit Of Measure	ea
