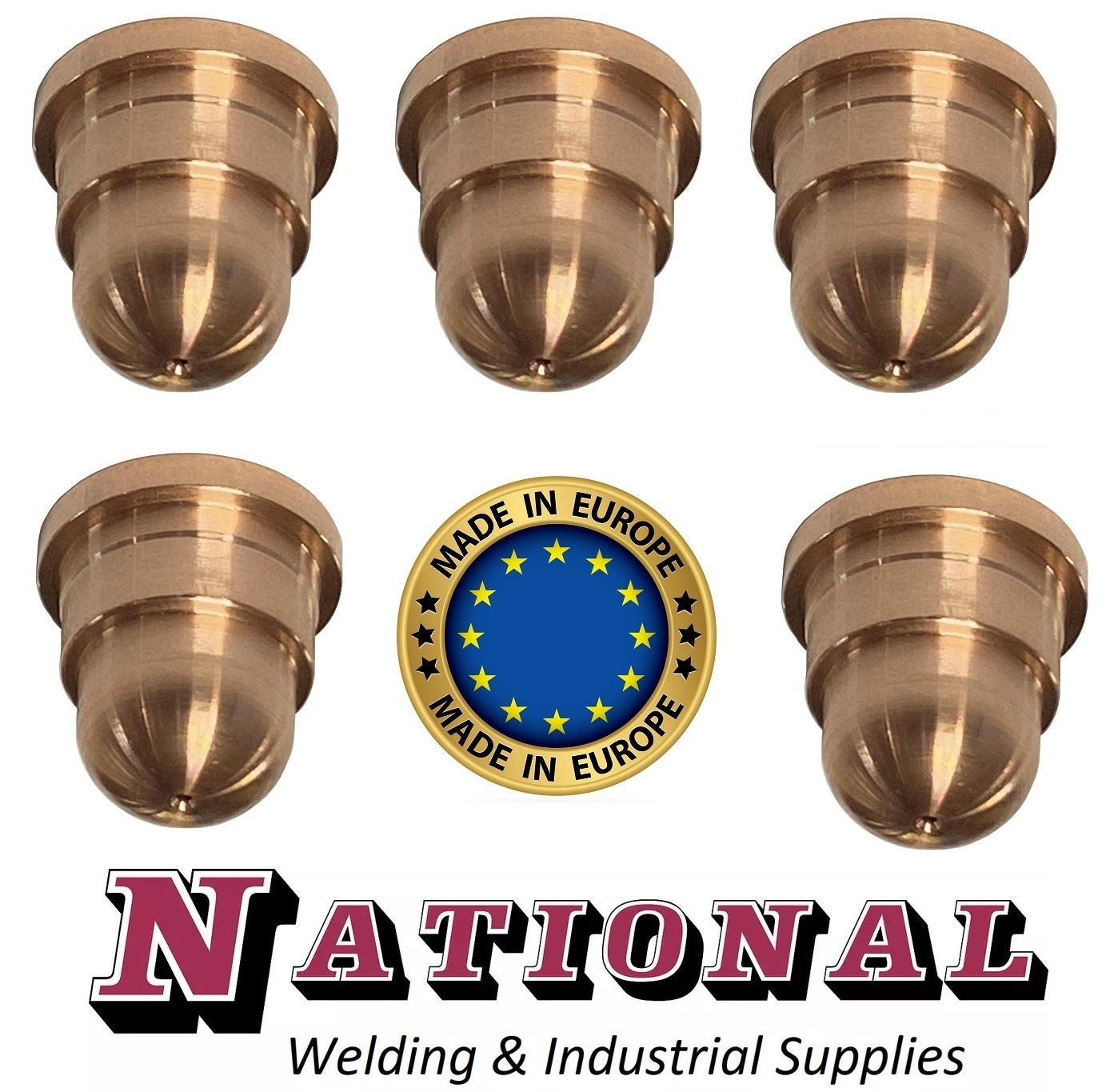

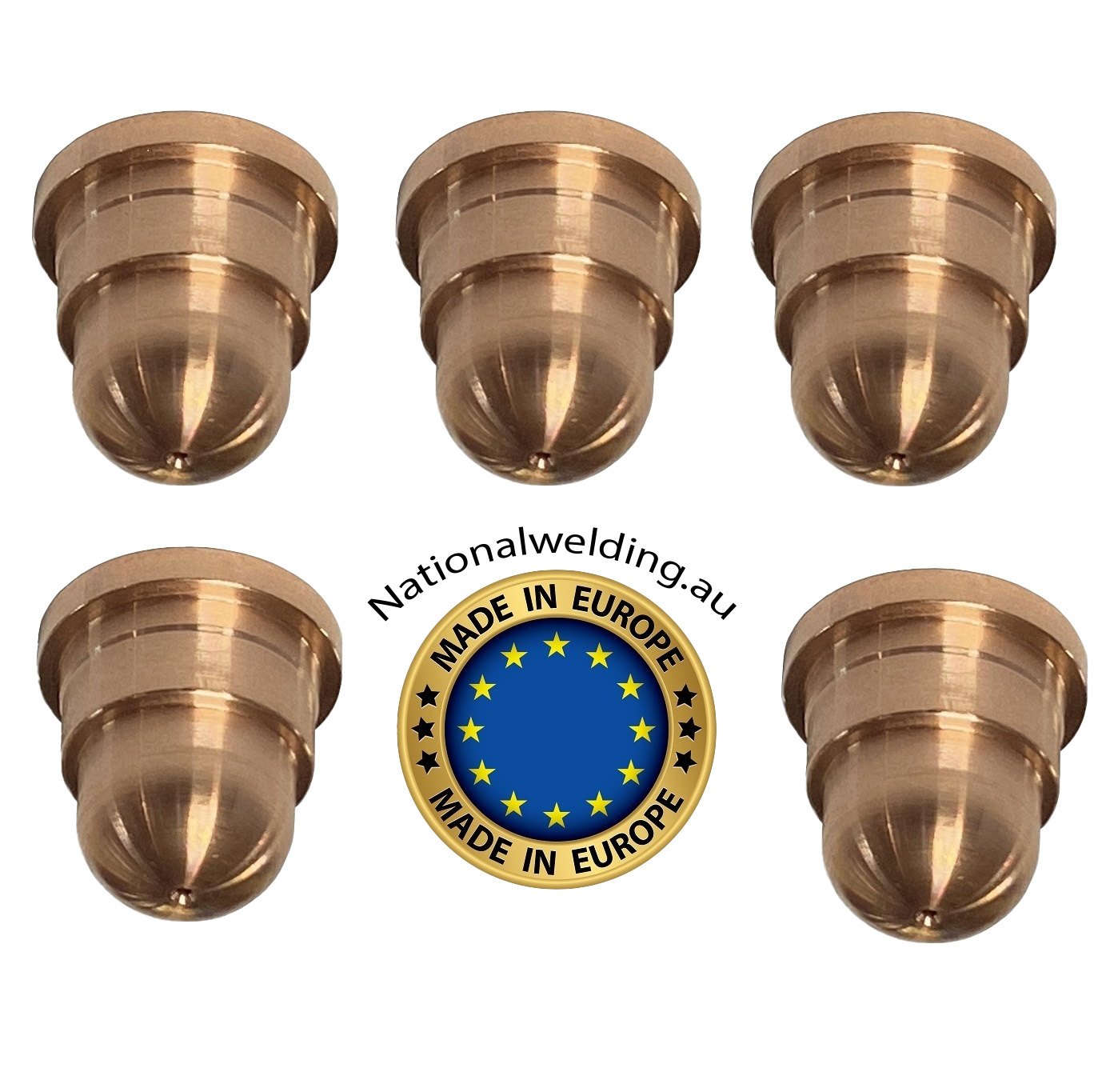

Thermacut T-11845 FineCut nozzle replaces Hypertherm 220930

This part replaces Hypertherm 220930. It's Thermacut T-11845, the FineCut nozzle for 45A, and it suits Hypertherm Duramax torches on Powermax 65, 85 and 105. Pack of 5.

Parts that go with it

The electrode and swirl ring are always used together as a set.

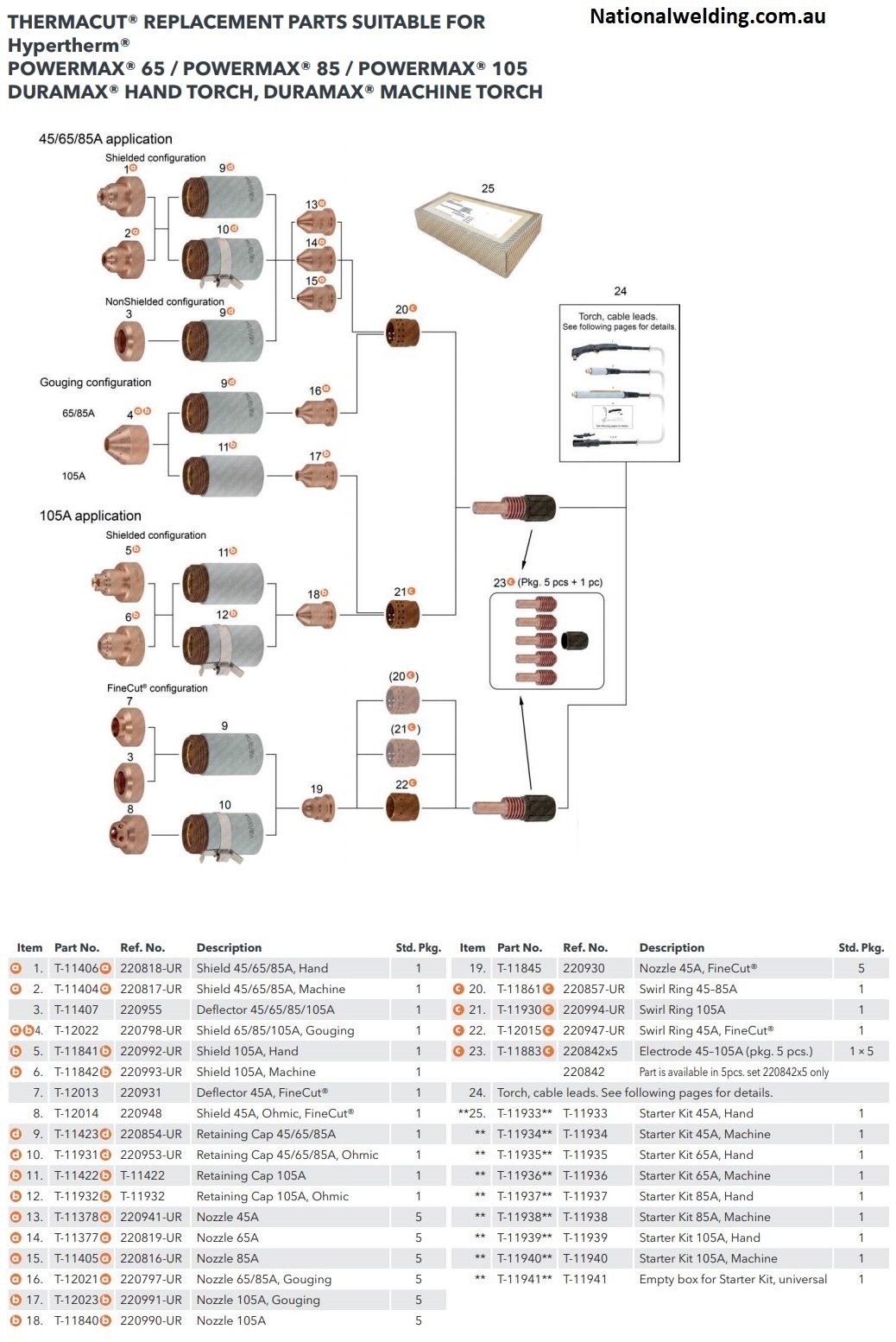

Setup Shield or deflector Retaining cap Swirl ring
FineCut 220931 FineCut Deflector T-12013 or 220955 Deflector T-11407 220854 Retaining Cap T-11423 220947 FineCut Swirl Ring T-12015
FineCut, ohmic 220948 FineCut Ohmic Shield T-12014 220953 Ohmic Retaining Cap T-11931 220947 FineCut Swirl Ring T-12015

Every setup uses 220842 Electrode 45–105A T-11883 (5 electrodes plus a swirl ring spring holder).

Buy it in a kit

This nozzle also comes in this kit, with the other parts it's used with.

FineCut Kit T-DMXKITFC
2 × FineCut Deflector, 1 × Retaining Cap, 10 × FineCut Nozzle, 1 × FineCut Swirl Ring, 5 × Electrode

View the FineCut kit
Choose your amperage and torch in our Powermax consumables guide to get the full set for this part.

Open the Powermax consumables guide

Common questions about the T-11845 nozzle

Does T-11845 replace Hypertherm 220930?
Yes. T-11845 is the Thermacut replacement for Hypertherm 220930, the 45A FineCut nozzle for Duramax torches. It comes in a pack of 5.
Which nozzle do I need?
Match the nozzle to your amperage and job. For cutting, use 220941 Nozzle 45A T-11378 at 45A, 220819 Nozzle 65A T-11377 at 65A, 220816 Nozzle 85A T-11405 at 85A and 220990 Nozzle 105A T-11840 at 105A. For gouging, use 220797 Gouging Nozzle 65/85A T-12021 at 65 or 85A and 220991 Gouging Nozzle 105A T-12023 at 105A. For FineCut on thin sheet, use this nozzle.
Which Powermax machines does this nozzle fit?
It fits the Powermax 65, 85 and 105 with a Duramax hand or machine torch. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.
Is T-11845 the same as the standard 45A nozzle?
No. T-11845 is for FineCut only. Standard shielded and unshielded cutting at 45A uses 220941 Nozzle 45A T-11378.
Alternative SKU: 220930

Part Number/SKU: T-11845

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

  • Thermacut T-11845, FineCut nozzle 45A
  • Replaces Hypertherm 220930
  • Pack of 5
  • For Duramax torches on Powermax 65, 85 and 105
Part number (SKU) T-11845
Replaces Hypertherm 220930
Brand Thermacut
Part type FineCut Nozzle 45A
Standard pack 5
Torch Hypertherm Duramax torches
Systems Hypertherm Powermax 65, 85, 105
Kits T-DMXKITFC
SKU T-11845
Brand THERMACUT
Shipping Weight 0.15kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
Unit Of Measure Pk
