Thermacut T-12022 gouging shield replaces Hypertherm 220798

This part replaces Hypertherm 220798-UR. It's Thermacut T-12022, the gouging shield for 65, 85 and 105A, and it suits Hypertherm Duramax torches on Powermax 65, 85 and 105. Sold each.

Parts that go with it

Up to 85A, the shield or deflector and the nozzle must be used together as a set. At 105A, the shield, retaining cap and nozzle must be used together as a set. The electrode and swirl ring are always used together as a set.

Setup	Retaining cap	Nozzle	Swirl ring
Gouging, 65/85A	220854 Retaining Cap T-11423	220797 Gouging Nozzle T-12021	220857 Swirl Ring T-11861
Gouging, 105A	Retaining Cap 105A T-11422	220991 Gouging Nozzle 105A T-12023	220994 Swirl Ring 105A T-11930

Every setup uses 220842 Electrode 45–105A T-11883 (5 electrodes plus a swirl ring spring holder).

Buy it in a kit

This shield also comes in these kits, with the other parts it's used with.

65/85A Gouging Kit T-DMXKIT6585HG

2 × Gouging Shield, 1 × Retaining Cap, 10 × Gouging Nozzle, 1 × Swirl Ring, 5 × Electrode

View the 65/85A gouging kit

105A Gouging Kit T-DMXKIT105HG

2 × Gouging Shield, 1 × Retaining Cap 105A, 10 × Gouging Nozzle 105A, 1 × Swirl Ring 105A, 5 × Electrode

View the 105A gouging kit

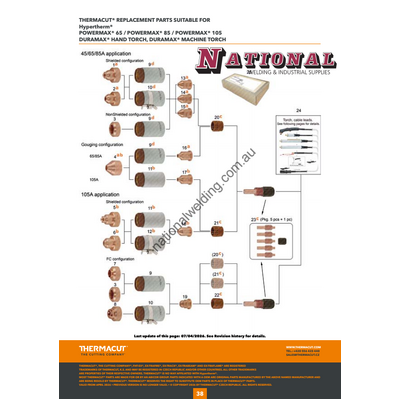

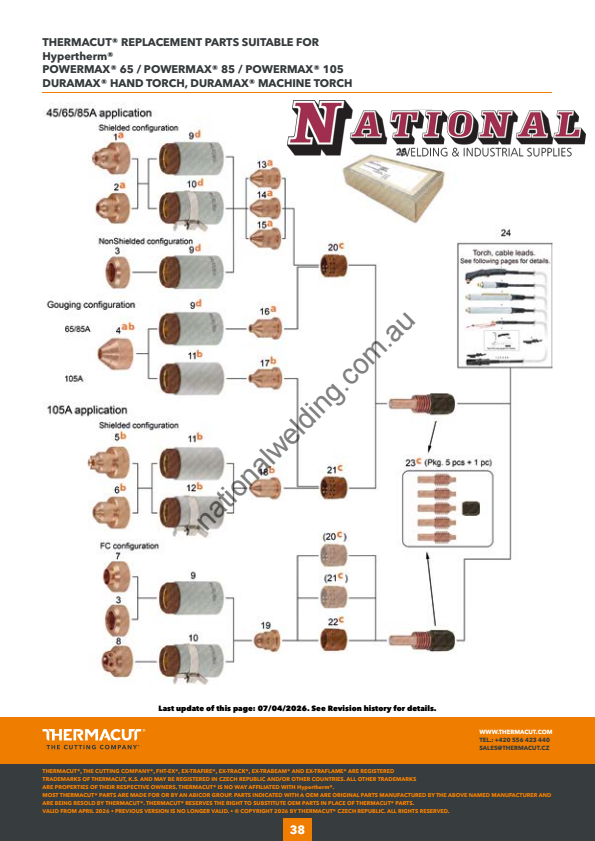

Choose your amperage and torch in our Powermax consumables guide to get the full set for this part.

Open the Powermax consumables guide

Common questions about the T-12022 shield

Does T-12022 replace Hypertherm 220798?

Yes. T-12022 is the Thermacut replacement for Hypertherm 220798-UR, the gouging shield for Duramax torches at 65, 85 and 105A.

Which shield do I need?

It depends on your torch, amperage and job. For cutting at 45, 65 and 85A, use 220818 Shield for Hand Torch 45/65/85A T-11406 on a hand torch or 220817 Shield for Machine Torch 45/65/85A T-11404 on a machine torch. At 105A, use 220992 Shield for Hand Torch 105A T-11841 on a hand torch or 220993 Shield for Machine Torch 105A T-11842 on a machine torch. For gouging, use this shield, and for FineCut on an ohmic table, 220948 FineCut Ohmic Shield 45A T-12014.

Which Powermax machines does this shield fit?

It fits the Powermax 65, 85 and 105 with a Duramax hand or machine torch. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.

Can I use T-12022 for gouging at 105A?

Yes. The same shield is used at 65, 85 and 105A. At 105A it goes with Retaining Cap 105A T-11422, because the 45/65/85A cap is rated up to 85A.

Alternative SKU: 220798
Alternative SKU: 220798-UR

Part Number/SKU: T-12022

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Thermacut T-12022, gouging shield 65/85/105A
Replaces Hypertherm 220798-UR
Sold each
For Duramax torches on Powermax 65, 85 and 105

Part number (SKU)	T-12022
Replaces Hypertherm	220798-UR
Brand	Thermacut
Part type	Gouging Shield 65/85/105A
Standard pack	1
Torch	Hypertherm Duramax torches
Systems	Hypertherm Powermax 65, 85, 105
Kits	T-DMXKIT6585HG, T-DMXKIT105HG

SKU	T-12022
Brand	THERMACUT
Shipping Weight	0.20kg
Shipping Width	0.100m
Shipping Height	0.100m
Shipping Length	0.100m
Shipping Cubic	0.001000000m3
Unit Of Measure	ea
