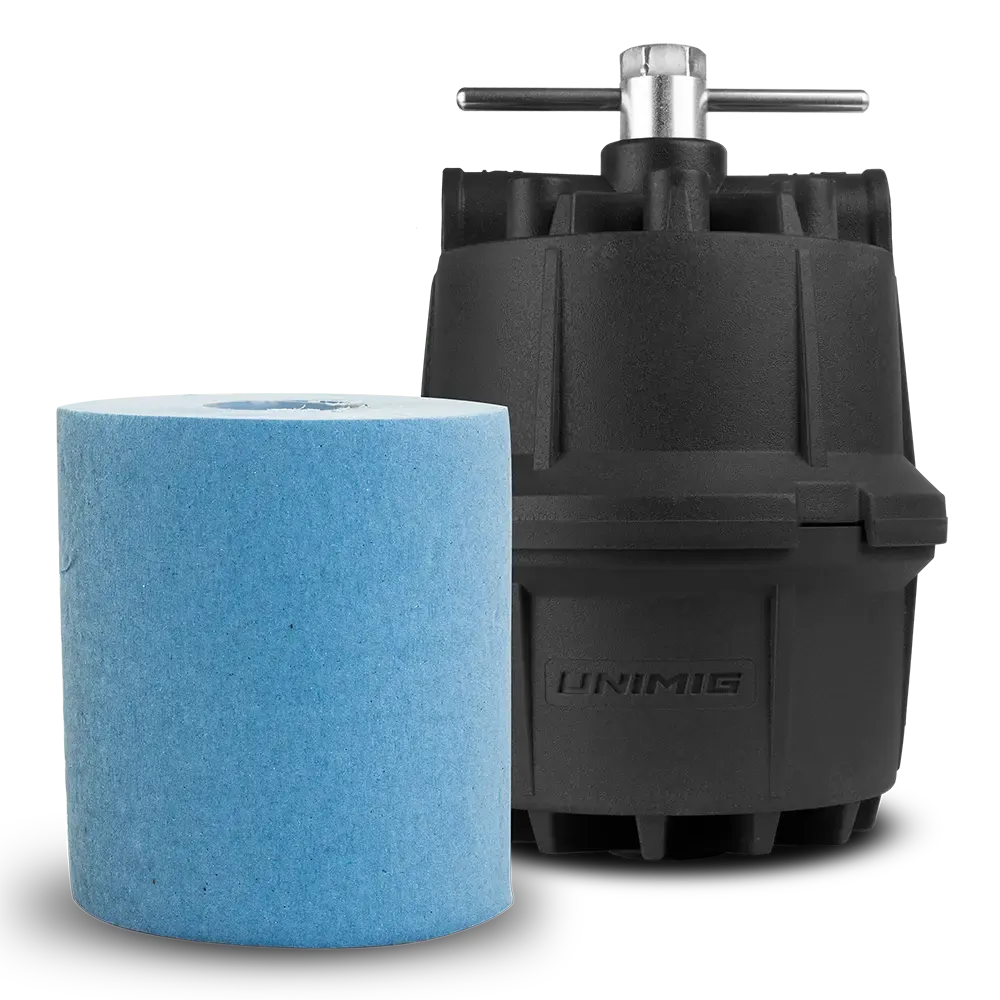

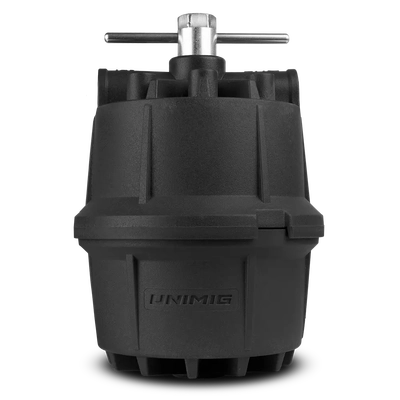

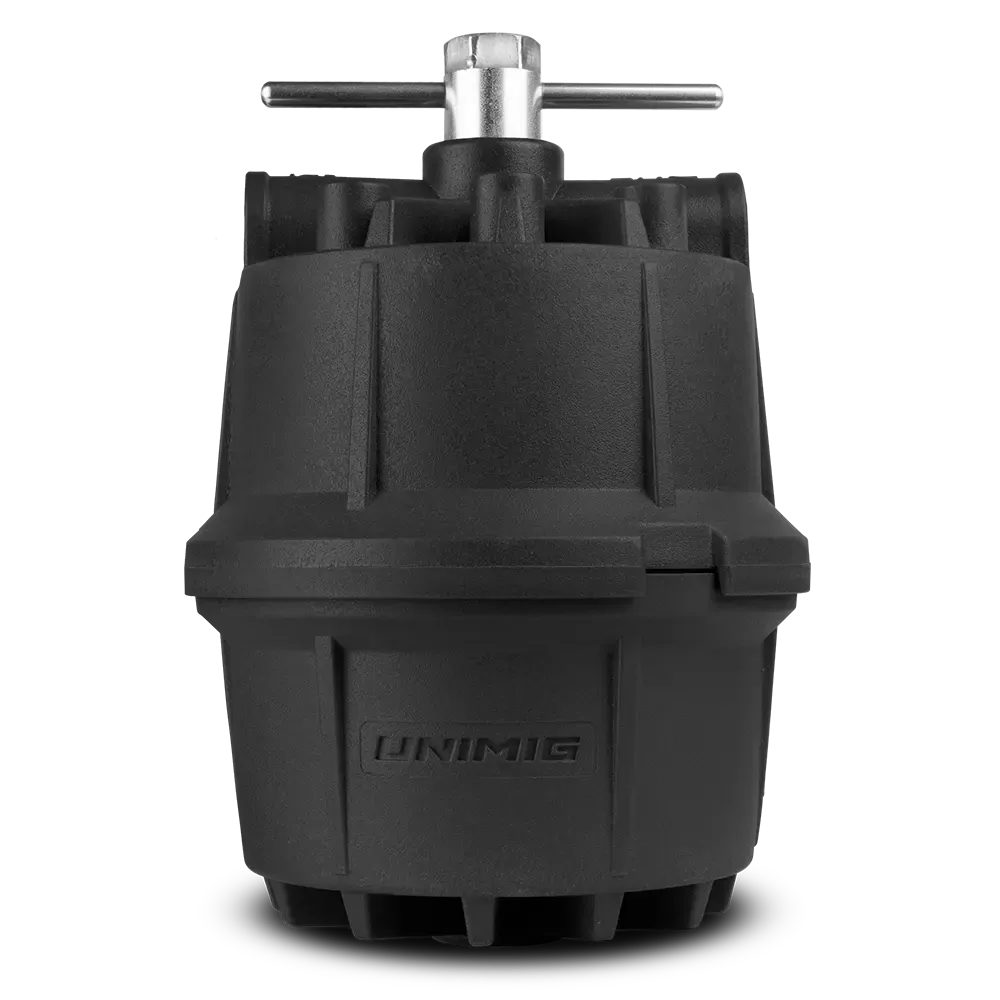

Plasma Cutter Air Filter Unimig U11235

DESCRIPTION:

Eliminate contaminants like sputters caused by moisture and oil with the plasma cutter air filter, which can trap particles as small as .01microns, keeping your torch from short-circuiting. It's recommended that you replace the filter cartridge every five to seven days.

FEATURES:

New and improved technology allows the filter to trap particles as small as .01microns.
Extend the life of your consumables by protecting them from any moisture.
Filters up to 1250L/min

SPECIFICATIONS:

Maximum Air Pressure	125 psi 8.6 bar 0.86 MPa
Maximum Flow (L/min)	1250
Temperature Range (°C)	-10 - 60
Filtration Degree (µm)	0.1
Filter Cartridge Weight (g/m²)	16
Absorption Rate (mm/100s)	15
Tensile Index (N·m/g)	3.0
Moisture Content (%)	6
Total Dust Filtration (pcs)	6
Dust Filtration 0.2-1 mm² (pcs)	≤ 4
Dust Filtration 1-2 mm² (pcs)	≤ 2
Dust Filtration ≥2 mm² (pcs)	0

Part Number/SKU: U11235

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	U11235
Brand	Unimig
Shipping Weight	1.5000kg
Shipping Width	0.150m
Shipping Height	0.100m
Shipping Length	0.350m
Shipping Cubic	0.005250000m3
Unit Of Measure	ea
