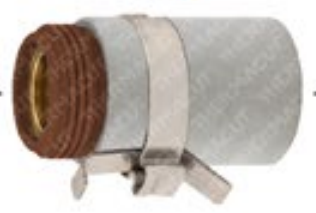

Thermacut T-11932 ohmic retaining cap for 105A Duramax torches

This part is Thermacut T-11932, the ohmic retaining cap for 105A. It suits Hypertherm Duramax hand and machine torches on Powermax 105 cutting tables with ohmic sensing. Sold each.

Parts that go with it

At 105A the shield, retaining cap and nozzle must be used together as a set, and so must the electrode and swirl ring.

Pick your machine, torch and job in our Powermax consumables guide to see the complete matched set.

Open the Powermax consumables guide

Common questions about the T-11932 ohmic cap

Which retaining cap do I need?
It depends on your amperage and whether your table uses ohmic sensing. Up to 85A, use 220854 Retaining Cap 45/65/85A T-11423, or 220953 Ohmic Retaining Cap 45/65/85A T-11931 for ohmic sensing. At 105A, use Retaining Cap 105A T-11422, or this cap for ohmic sensing. If a wire from your table's height control clips onto the cap, you need an ohmic cap.
Which Powermax machines does this retaining cap fit?
It fits the Powermax 105 on cutting tables with ohmic sensing. It's a 105A part, so it isn't for the Powermax 65 or 85. It doesn't suit Powermax SYNC systems (they use one-piece cartridges), the original Powermax45 or the Powermax30.
What does ohmic mean on a retaining cap?
Ohmic means the cap is part of a CNC table's plate sensing. A wire from the table's height control clips onto the cap, so the table can touch the torch to the plate, detect the electrical contact and set the pierce and cut heights from that point.

Part Number/SKU: T-11932

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

  • Thermacut T-11932 retaining cap, 105A, ohmic
  • Sold each
  • For the 105A shielded setup on Hypertherm Duramax torches, Powermax 105
  • Used as a set with a 105A shield (T-11841 or T-11842) and nozzle T-11840
  • Standard 105A cap without ohmic sensing: T-11422
  • Ohmic cap for 45/65/85A: T-11931
Part number (SKU) T-11932
Brand Thermacut
Part type Retaining cap, ohmic
Amperage 105A
Standard pack 1
Torch Hypertherm Duramax hand and machine torch
System Hypertherm Powermax 105
Used as a set with 105A shield T-11841 or T-11842, nozzle T-11840
Standard (non-ohmic) version T-11422
Ohmic cap up to 85A T-11931
SKU T-11932
Brand THERMACUT
Shipping Weight 0.20kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
Unit Of Measure ea
