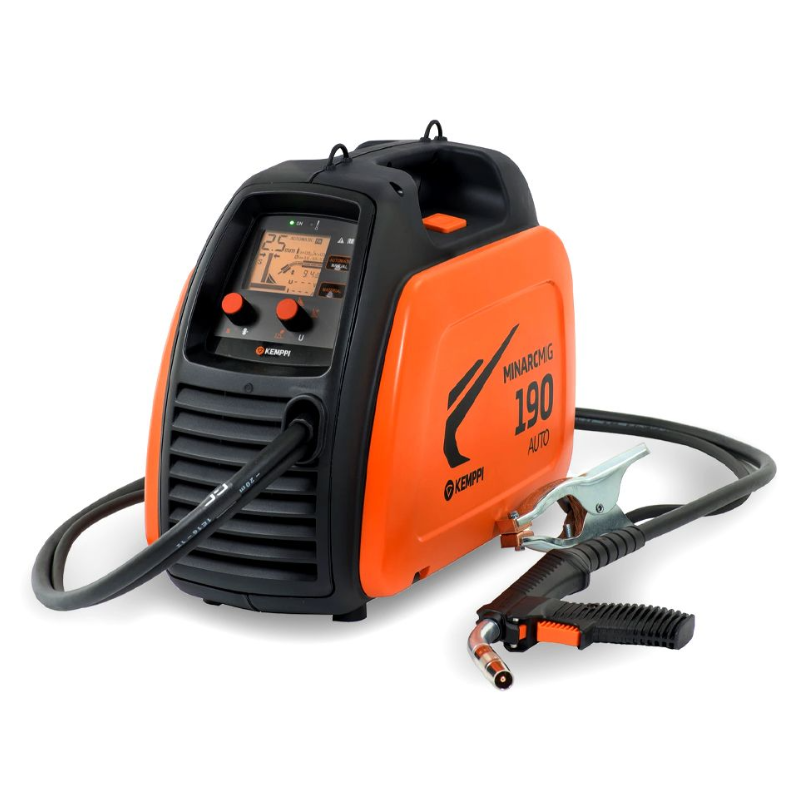

MinarcMig Auto 190A Portable MIG/MAG Welding Machine Kemppi 61008190AU

DESCRIPTION:

A 14.2kg, portable MIG/MAG welding machine providing 190A with a 35% duty cycle from a 16A, single-phase mains supply. Manual and synergic welding options are available. Compatible with a wide range of materials, including steel (Fe), aluminium (Al), and CuSi brazing filler wires. A 3-meter welding torch with an ergonomic gun handle, cable set, and carrying strap included.

FEATURES:

Precise weld quality and arc ignition with adaptive regulation.
Just select the material type and plate thickness, then weld in auto mode.
220A / 190A MIG/MAG welding power from a 16A supply.
Compatible with Fe, Fe FCW, Ss, Al, CuSi filler wires, 1kg and 5kg wire spools.
A large graphical backlit display guides you in low-light conditions.
Designed for use with long power extension cables (up to 100m).
A 3-meter welding torch with an ergonomic gun handle, cable set, and carrying strap included.

SPECIFICATIONS:

Connection voltage 1~ 50/60 Hz	230 V ±15%
Welding Range	20 A / 15 V...190 A / 26 V
Output	35% ED: 190A 60% ED: 140A 100% ED: 100A
Open circuit voltage	70-75V
Wire Feed Mechanism	2-roll, single-motor
Wire Spool Max Weight	5kg
Wire Spool Max Diameter	200mm
Mains fuse	16A
Shielding gas pressure (max)	0.5MPa
Degree of protection	IP23
Standards	IEC 60974-1, -5, -10, IEC 61000-3-12
EMC Class	A
Operating Temperature Range	-20ºC - 40ºC
Storage Temperature Range	-40ºC - 60ºC
Dimensions (L x W x H)	450mm x 227mm x 368mm
Weight	14.2kg

WARANTY:

3 Year Warranty Covered by Kemppi

Part Number/SKU: 61008190AU

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	61008190AU
Brand	Kemppi
Shipping Weight	18.0000kg
Shipping Width	0.350m
Shipping Height	0.450m
Shipping Length	0.550m
Shipping Cubic	0.086625000m3
Unit Of Measure	ea
