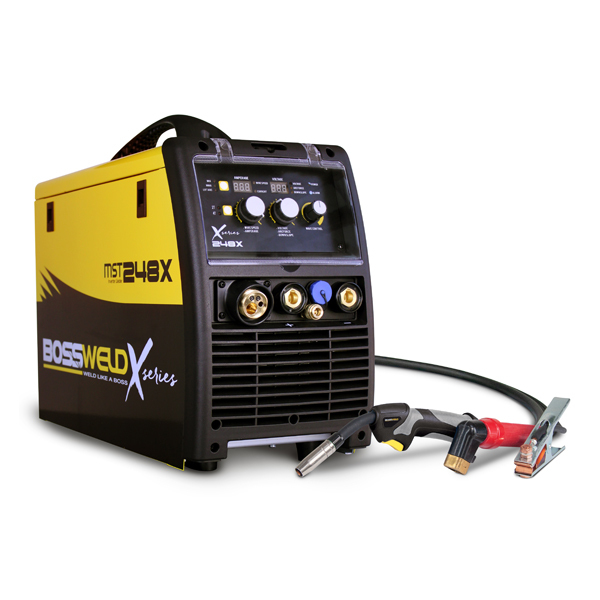

MIG/STICK/TIG Welder 248X MST X-Series 240V 15 Amps Bossweld

The Bossweld MST 248X is a multi-process, inverter-based welder that provides the possibility to MIG, Stick and TIG weld from the same machine. Weighing only 20kg, and with a duty cycle of 60% at 90 Amp, this machine is perfect for your next project

220 Amp output
MIG /Stick /TIG welder
Fitted 15 Amp plug
Digital LED display
DC TIG lift arc start
Excellent arc stability
Gas /gasless operation
2T / 4T trigger latching
Stepless amperage control
Generator safe
Spool Size - 1 / 5 Kg Spool
Spool gun ready

 Primary Input Power   Single Phase 240V 50-60 Hz +/- 15%
 Duty Cycle @ 40°C

  MIG 60% @ 90A

 MMA/TIG 60% @ 85A

 Open Circuit Voltage

 MIG 71.9V

 TIG 70.5V

 MMA 71.5V

 Output Current Range

 MIG 40-220 Amps

 MMA/TIG 10-200 Amps

 I Max

 MIG 46.9A

 TIG 32.2A

 MMA 45.6A

 I eff

 MIG 14.8A

 TIG 10.2A

 MMA 14.4A

 Protection/ Insulation Class  IP21S / S
 Wire Diameter Range   0.8mm to 1.6mm
 Electrode Diameter Range   2.5mm to 5.0mm
 Mininmum kVA   12.00
 Dimensions / Weight   63.5 x 40 x 24 cm / 20 Kg

PACKAGE INCLUDES

  • MST 248X Multi-Process Welder
  •  4Mt Ergon BZ24 MIG Torch
  • 3Mt Twist lock Electrode Holder
  •  3Mt 200Amp Earth clamp
  •  2Mt Gas Hose
  • Bossweld Twin Gauge Argon Regulator
  •  Drive Rollers (not shown):
    • 0.8 / 0.9mm V Groove Roller (fitted)
    • 0.8 / 0.9mm Knurled spare
  • ​​Operator Manual




Part Number/SKU: 699248

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 699248
Brand Bossweld
Shipping Weight 30.0000kg
Shipping Width 0.400m
Shipping Height 0.530m
Shipping Length 0.700m
Shipping Cubic 0.148400000m3
Unit Of Measure ea
