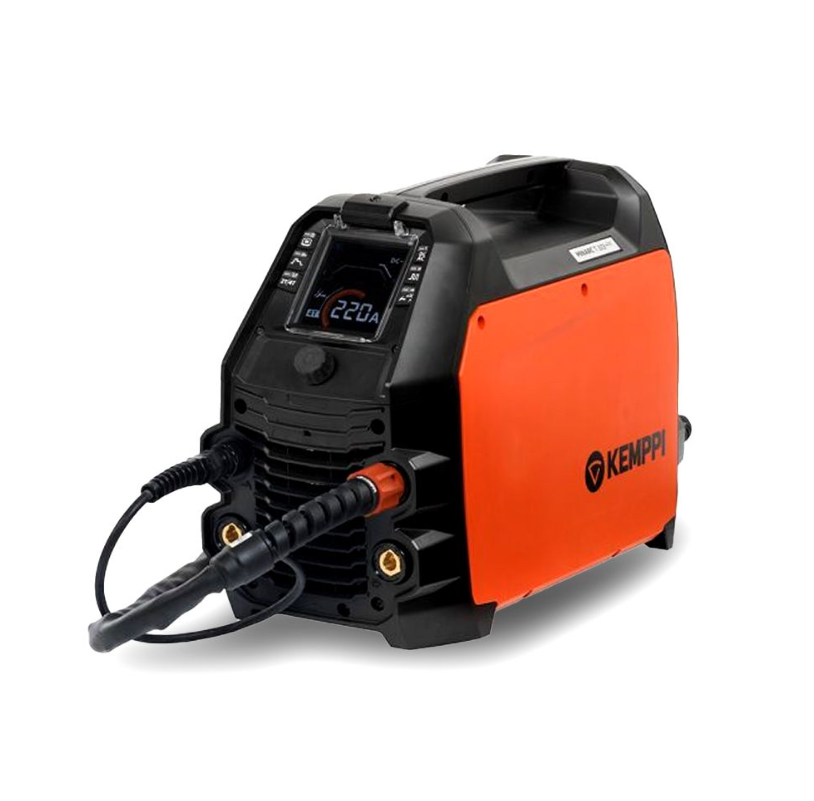

Minarc T223 220A ACDC & Weldclean TIG HF 8m Torch 240V VRD Combo Kit Kemppi P23T225G8AU

DESCRIPTION:

Minarc T 223 ACDC GM is an entirely new 220A single-phase AC/DC TIG welding machine with built-in electrolytic weld cleaning capability. This portable multi-voltage welding machine allows you to perform high-quality TIG welding and professional weld cleaning with one machine.
Take the minarc T 223 AC/DC GM anywhere on-site and save time by completing and finishing welds in one spot. The new MAX weldclean electrolytic cleaning process is simple and easy to use. It just takes a moment to convert your TIG torch to cleaning mode, where an efficient combination of electric current and phosphoric acid offers quick removal of oxidation and discoloration around the weld, delivering perfectly clean welds.
Powerful and versatile, the minarc T223 AC/DC GM TIG welding machine comes with important features like the auto pulse function, AC frequency control, memory channels, and convenient remote control options. A large color display with impact protection and a clear user interface make choosing settings in a wide range of light conditions easy.

FEATURES:

Premium multi-voltage AC/DC TIG welding machine with built-in weld cleaning function.
DC+ and DC- MMA welding
220A with 20% duty cycle from a 1-phase power supply
Weldclean electrolytic cleaning process speeds up post-processing of welds.
Large LCD
Four memory channels
Auto pulse with frequency control
AC balance control
Three alternative transport cart options.
Set parameters remotely with an optional on-torch remote.
Control your welding with the FR41 wired foot pedal

SPECIFICATIONS:

Connection voltage 1~ 50/60 Hz	220V - 240 V ±10%; 110V - 120 V ±10%
Fuse	15 A
Minimum Generator Power	8kVA
TIG Output	20% ED: 220A 40% ED: 120 A (@MV low range) 60% ED: 170 A; 100 A (@MV low range) 100% ED: 160 A; 90 A (@MV low range)
MMA Output	35% ED: 170 A 40% ED: 90 A (@MV low range) 60% ED: 130 A; 70 A (@MV low range) 100% ED: 110 A; 60 A (@MV low range)
Open Circuit Voltage	23V
Stick Electrode Sizes	1.6mm - 4.0mm
TIG Welding Current and Voltage Range	220–230 V: 5 A/8 V - 220 A/20 V 110–130 V: 5 A/8V - 120 A/15 V
MMA Welding Current and Voltage Range	220–230 V: 15 A/15 V - 170 A/34 V 110–130 V: 15 A/15. - 90 A/30 V
Degree of Protection	IP23
Standards	EN IEC 60974-1, -3, -10 IEC 61000-3-12
EMC Class	A
Operating Temperature Range	-20ºC - +40 °C
Storage Temperature Range	-40ºC - +60 °C
Dimensions (L x W x H)	520mm x 250mm x 379mm
Weight	16.8kg

Part Number/SKU: P23T225G8AU

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	P23T225G8AU
Brand	Kemppi
Shipping Weight	20.0000kg
Shipping Width	0.350m
Shipping Height	0.450m
Shipping Length	0.550m
Shipping Cubic	0.086625000m3
Unit Of Measure	ea
