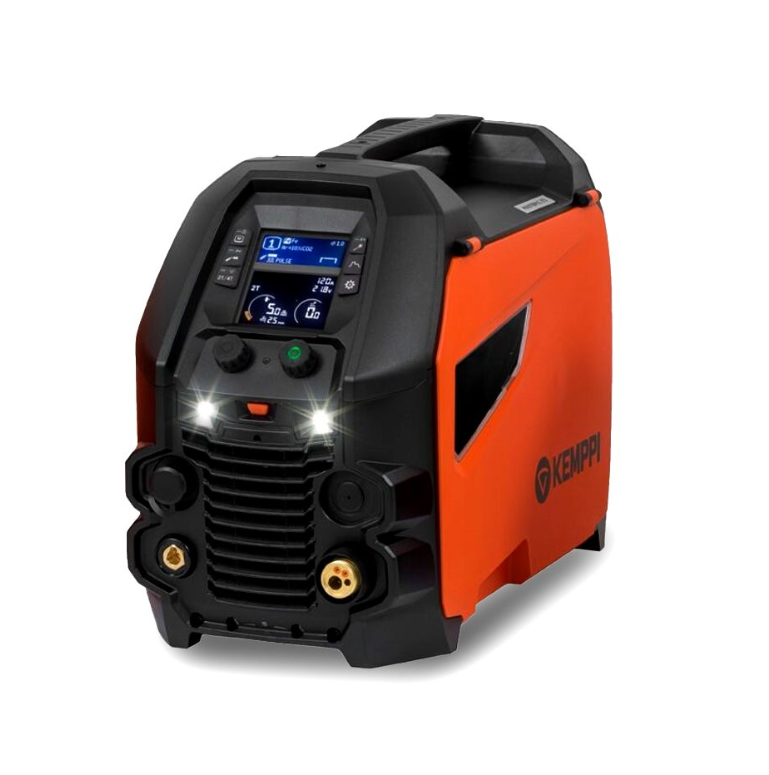

Master M355 Pulse 350A Pulse Compact Gas Cooled CC/CV MIG/MAG 415V Kemppi P505GXe4

DESCRIPTION:

Compact MIG/MAG welder with manual, synergic (Auto), pulse (Auto pulse), and double pulse processes. 350A with 40% duty cycle. Intelligent setting of welding parameters with weld assist. LCD colour display, and LED work lights for excellent handling. Including workpack with characteristic curves for Fe, Ss, Al, CuSi, CuAl, Fe metal, Fe rutile, FC-CrNiMo. Suitable for generator use.

FEATURES:

Color LCD.
Work pack welding software programs including Fe, Ss, Al, CuSi, CuAl materials.
Weld assist parameter setting.
Wise fusion arc performance process.
LED Work lights.
6 memory channels.
Powerlog
Gas Guard and gas regulation valve.
Wire inch and gas test buttons.
Kinetic spool brake
Cabinet lightening
Auto calibration
USB port
Safe-to-lift
PIN lock
Cycle timer.

SPECIFICATIONS:

Connection voltage 3~ 50/60 Hz	380 - 460 V ± 10 %
Fuse	16A
Output	40% ED: 350 A (MMA 330 A) 60% ED: 280A 100% ED: 220A
Wire Feed Mechanism	4-roll, single-motor
Wire Feed Speed	0.5 - 25 m/min
Rated Power At Max Current	14kVA
Recommended Generator Power (min)	20kVA
Gun Connection	Euro
Wire Spool Max Weight	20kg
Wire Spool Max Diameter	300mm
Filler Wires	Ss: 0.8mm - 1.2mm Al: 0.8mm - 1.2mm Fe: 0.8mm - 1.2mm MC/FC: 0.8mm - 1.2mm
Diameter of Feed Rolls	32mm
Welding Current and Voltage Range	MIG: 15 A/10 V - 350 A/ 45 V TIG: 15 A/1 V - 350 A/ 45 V MMA: 15 A/10 V - 330 A/ 45 V
Operating Temperature Range	-20ºC - +40ºC
Degree of Protection	IP23S
Standards	IEC 60974-1, -10
EMC Class	A
Storage Temperature Range	-40ºC - +60ºC
Shielding Gas Pressure (Max)	0.5 MPa
Dimensions (L x W x H)	602mm x 298mm x 447 mm
Weight	27kg

Part Number/SKU: P505GXe4

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	P505GXe4
Brand	Kemppi
Shipping Weight	30.0000kg
Shipping Width	0.350m
Shipping Height	0.550m
Shipping Length	0.750m
Shipping Cubic	0.144375000m3
Unit Of Measure	ea
