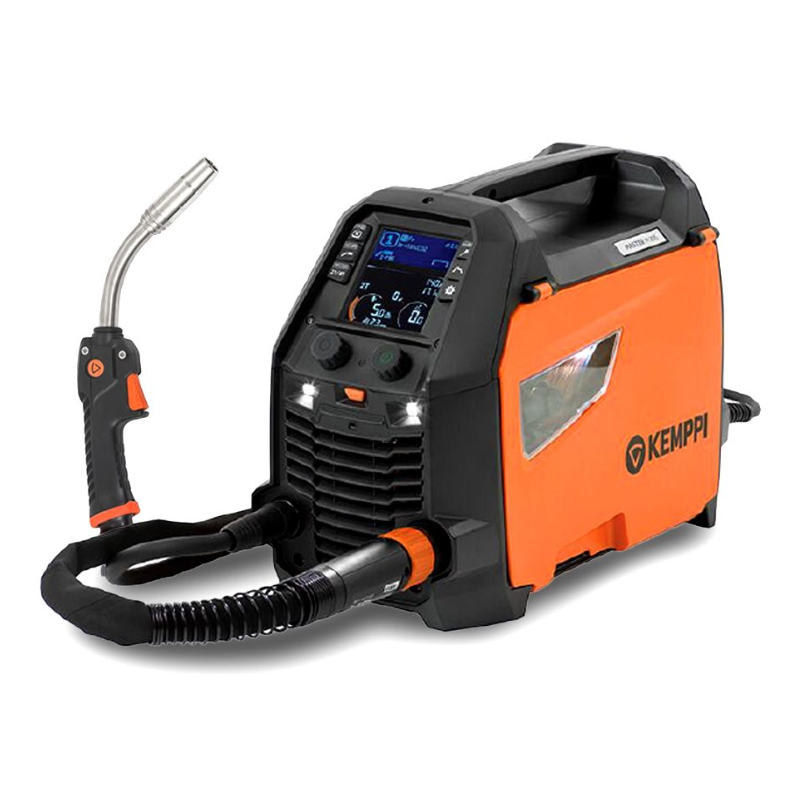

Master M205 GM AU 200A Pulse Compact Gas Cooled MIG/MAG 240V Combo Kit Kemppi P519GXe3AU

DESCRIPTION:

A portable multiprocess welder for Australian markets. The power source provides 200A with a 40% duty cycle. Manual, synergic, and pulse MIG welding options are available, along with stick and DC TIG welding options. Intelligent welding parameter setting with weld assist. Includes 20 factory-installed welding programs for 1 MIG and 17 factory-installed welding programs for pulse MIG. Welding programs include Fe, Ss, Al, and CuSi materials. Suitable for generator use.

FEATURES:

Versatile process selection with premium MIG/MAG, DC TIG, and stick welding options.
Master M205 includes a pulse MIG welding option with a 1-phase power supply.
Lightweight and portable welders that are easy to carry anywhere.
Ideal for tight workspaces - Master M323: 28 factory-installed MIG/MAG welding programs.
Master M 205: 17 pulse MIG welding programs and 20 1-MIG welding programs as a standard.
Root pass welding, thin sheet welding, and gap bridging with the Max cool arc welding process are standard in Master M323.
Master M323 includes the gas guard feature and gas regulation valve.
Self-charging LED work lights for better worksite safety.
Designed to be lifted with a crane.
Weld assist feature for parameter setting.
6 memory channels.
40% duty cycle.
Compatible with a generator
Multivoltage is a standard feature.
Alternative transport cart options.

SPECIFICATIONS:

Connection voltage 1~ 50/60 Hz	220 – 240 V ±10 %; 110 – 130 V ±10 %
Fuse	16/16 A
Output	40% ED: 200 A (175 A MMA); 120 A (100 A MMA) (30% ED) 60% ED: 170 A (150 A MMA); 95 A (80 A MMA) 100% ED: 140 A (120 A MMA); 75 A (65 A MMA)
Wire Feed Mechanism	2-roll, single-motor
Wire Feed Speed	0.5 – 25 m/min
Rated power at max. current	6kVA
Gun Connection	Euro
Wire Spool Max Weight	5kg
Wire Spool Max Diameter	200mm
Filler Wires	Ss: 0.8mm – 1.0 mm Al: 0.8mm – 1.2 mm Fe: 0.8mm - 1.0mm
Welding current and voltage range	MIG: 15 A/10 V...200 A/28 V; 15 A/10 V...120 A/21 V TIG: 15 A/1 V...200 A/28 V; 15 A/1 V...120 A/21 V MMA: 15 A/10 V...175 A/31 V; 15 A/10 V...100 A/24 V
Degree of protection	IP23S
Standards	IEC 60974-1, -10
EMC class	Operating temperature range: -20ºC - +40°C
Storage temperature range	-40ºC - +60 °C
Dimensions (L x W x H)	520mm x 250mm x 379 mm
Weight	16.2 kg

WARRANTY:

3-Year Warranty Covered by Kemppi

Part Number/SKU: P519GXe3AU

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	P519GXe3AU
Brand	Kemppi
Shipping Weight	20.0000kg
Shipping Width	0.350m
Shipping Height	0.450m
Shipping Length	0.600m
Shipping Cubic	0.094500000m3
Unit Of Measure	ea
