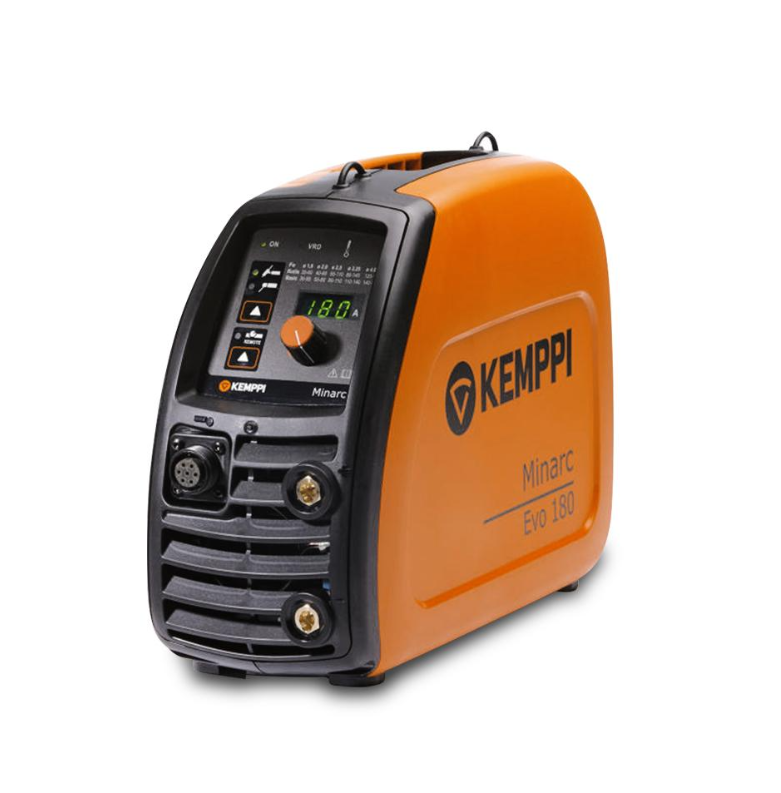

P0682 180A Minarc Evo 180 MMA/TIG Welder Kemppi 61002180AU

DESCRIPTION:

Outstanding welding performance is no overstatement. Every element of Minarc Evo 180 is designed to meet the needs of professional welders on the move. Where size, weight, and welding quality are concerned, there is no equal.

FEATURES:

Premium welding performance.
Use with all electrode types.
Use with long supply cables.
PFC technology for ultimate energy efficiency.
High-current output and duty cycle.
Lightweight and portable
Robust and durable
Precise lift TIG technology.
Mains network or generator use.
Optional remote control.

SPECIFICATIONS:

Connection voltage 1~ 50/60 Hz	230 V ±15 %
Fuse (delayed)	16 A
Minimum generator power	5.5 kVA
Output (40 oC) TIG	100 % ED, 130 A / 15.2 V
Output (TIG) 35% ED	180 A/17.2 V
Output (TIG) 60% ED	150 A / 15 V
Output (TIG) 100% ED	130 A/15.2 V
Output (MMA) 30% ED	170 A/26.8 V (140 AU: 28% ED 140 A/25.6 V)
Output (MMA) 60% ED	140 A / 25.6 V
Output (MMA) 100% ED	115 A/24.6 V (140 AU: 80 A/23.2 V)
Open circuit voltage	90 V (VRD 30 V; AU VRD 12 V)
Open circuit voltage	90 V
Stick electrode sizes	1.5...4 mm
Stick electrode sizes	1.5…4.0 mm
Welding range (MMA)	10 A/15 V - 170 A/32 V
Welding range (TIG)	10 A/10 V - 180 A/30 V
Rated power at max. current 30% ED MMA	170 A / 5.7 kVA
Rated power at max. current 35% ED TIG	180 A / 4.0 kVA
Power factor at 100 % ED	0.99
Efficiency at 100 % ED (MMA)	84 %
Operating temperature range	–20…+40 °C
Degree of protection	IP23S
Standards	IEC 60974-1 IEC 60974-10 IEC 61000-3-12
Weight (with connection cable)	5.85 kg
EMC class	A
Norms	IEC 60974-1, -10, IEC 61000-3-12
External dimensions LxWxH	361 × 139 × 267 mm
Weight (no accessories)	5.4 kg

Part Number/SKU: 61002180AU

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Features

Low Alloy Copper coated Tig rod
Low Alloy 5%Cr, 0.5%MO
Suitable for creep resistant steels

Welding Positions
All positions.

AWS Specification
A5.18: ER80S-B6

SKU	61002180AU
Brand	Kemppi
Shipping Weight	7.5000kg
Shipping Width	0.200m
Shipping Height	0.320m
Shipping Length	0.450m
Shipping Cubic	0.028800000m3
Unit Of Measure	ea
