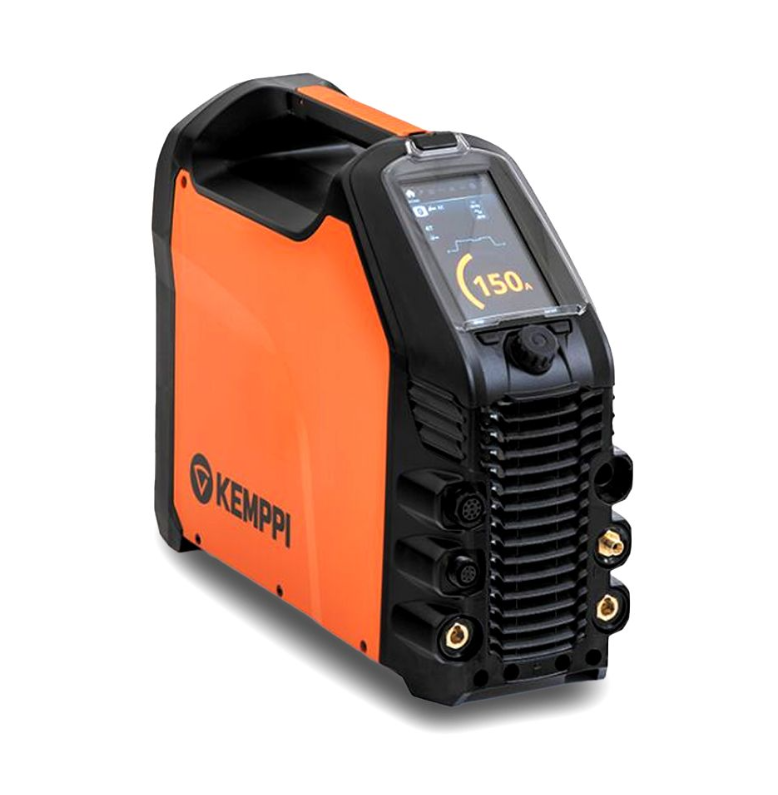

MT335ACDCGAU 300A Water Cooled AC/DC TIG Welding 415V VRD Locked Combo Kit Kemppi P0226

DESCRIPTION:

Master Tig sets new standards for weld quality, usability, and power efficiency in AC and DC TIG welding. Designed for professional welders, the master TIG product family offers a choice of power variants up to 500A. Its modular design philosophy allows you to build the specification that best meets your needs, including alternative control panels, wireless remote controls, and transport cart options.
Stylish, practical, and robust, the master TIG absorbs the knocks of everyday welding life. The compact-sized welding equipment is constructed from tough yet lightweight injection-molded plastic, featuring impact bridge protection structures. Flexible and durable TX TIG torches are readily equipped to fit the master TIG to maximize welding comfort.

FEATURES:

Choose from traditional torch button control panels or the full colour 7" TFT control panel, including weld assist and 99 memory channels per process.
Weld assist guides every welder towards accurate, productive welding by recommending the best parameters for different welding applications.
Several useful features are available for enhanced TIG welding.
Easy, fast, and convenient coolant filing and cleaning.
Master TIG transport units feature floor-level cylinder loading, removing the need for heavy lifting.
Compatible with Flexlite TX TIG torches.
Foot pedal, on-torch, and hand remote controls available.
Option for connecting the equipment to weldeye cloud service.

SPECIFICATIONS:

Connection voltage 3~ 50/60 Hz	380V - 460V ±10 %
Fuse	16A
Stick electrode sizes	1.6mm - 6.0mm
Recommended generator power (min)	20kVA
Open circuit voltage (average)	50V
Degree of Protection	IP23S
Standards	IEC 60974-1,-3,-10 IEC 61000-3-12 AS 60974.1-2006 GB 15579.1
EMC Class	A
Operating Temperature Range	-20ºC - +40ºC
TIG Rated Maximum Output	40 °C (40 %): 300 A / 22 V 40 °C (60 %): 230 A / 19.2 V 40 °C (100 %): 190 A / 17.6 V
Range of Output TIG	3 A / 1 V - 300 A / 38 V
MMA Rated Maximum Output	40 °C (40 %): 250 A / 30 V 40 °C (60 %): 230 A / 29.2 V 40 °C (100 %) 190 A / 27.6 V
Range of Output MMA	10 A / 10 V - 250 A / 39 V
Dimensions (L x W x H)	544mm x 205mm x 443mm
Weight	22.5kg

Part Number/SKU: P0226

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	P0226
Brand	Kemppi
Shipping Weight	27.5000kg
Shipping Width	0.300m
Shipping Height	0.500m
Shipping Length	0.600m
Shipping Cubic	0.090000000m3
Unit Of Measure	ea
