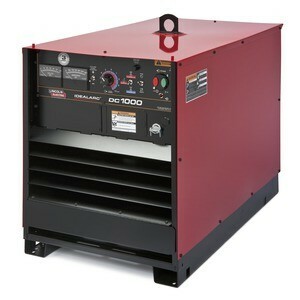

Idealarc® DC-1000 415/3/50-60 Lincoln K1387-6 (Machine only)

Input (V) - 415/3/50-60
Fuse size (A) - 102
Output range (A) 150 - 1300
Rated output 1140A/45V@60% • 1000A/44V@100%
Control Voltage - Continuous
Processes - MIG, Flux-cored, Submerged arc, Gouge
Insulation / Protection Class - IP23 / H
Weight (kg) - 372
Dimensions HxWxD (mm) - 781 x 572 x 991

The DC-1000 offers 1300 amps of smooth DC output, combining pure welding power with multi-process flexibility for semiautomatic and automatic welding.

Features:

• 500 amp output connections - provide enhanced arc characteristics for low amperage submerged arc and MIG welding procedures.
• Single range control - for precise output control and easy operation.
• Terminal strip and output studs - for remote connections and cable.
• Low profile case - allows installation under a workbench and for stacking up to 2 machines to conserve floor space.
• Removable side panels - for easy access to internal parts.
• Internal components - including windings, rectifiers and circuit boards, are coated to protect against the effects of moisture and corrosion.

• Manual for Lincoln Idealarc DC600
• Brochure for Lincoln Idealarc DC600

Part Number/SKU: K1387-6
