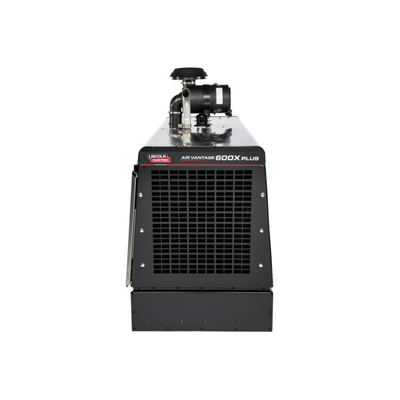

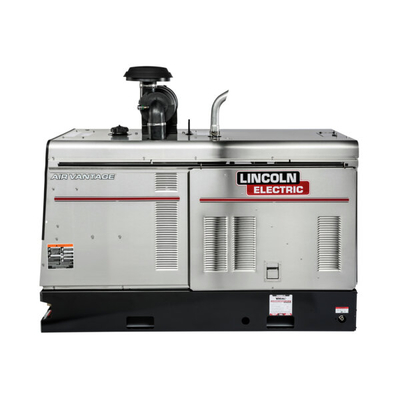

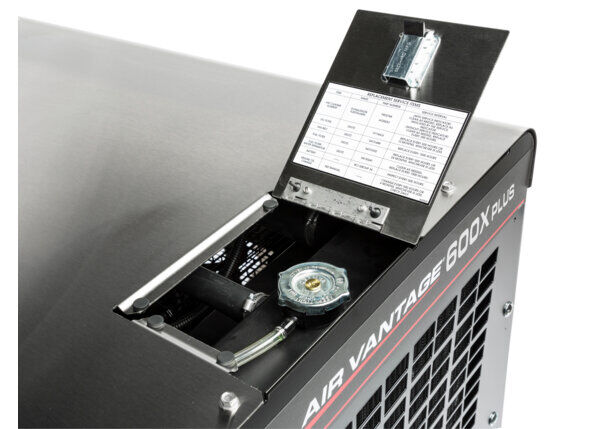

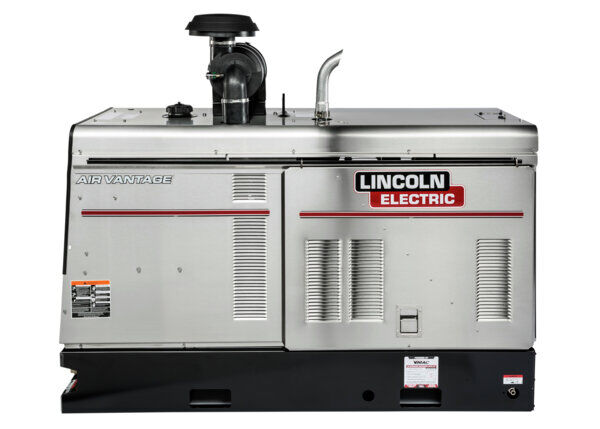

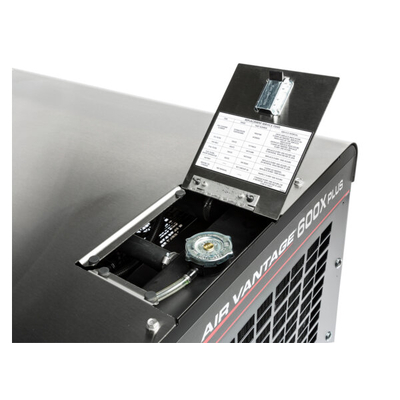

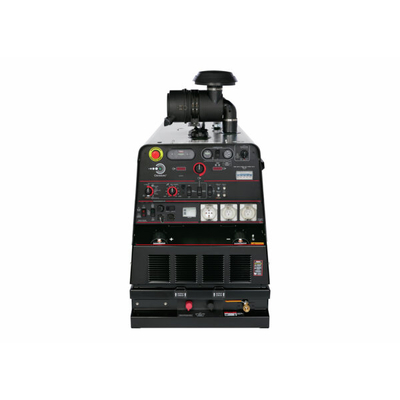

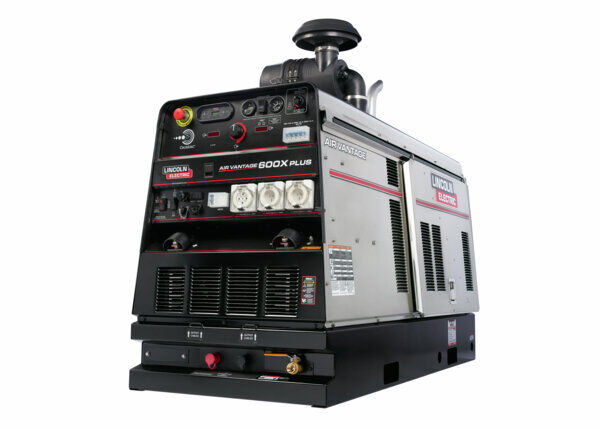

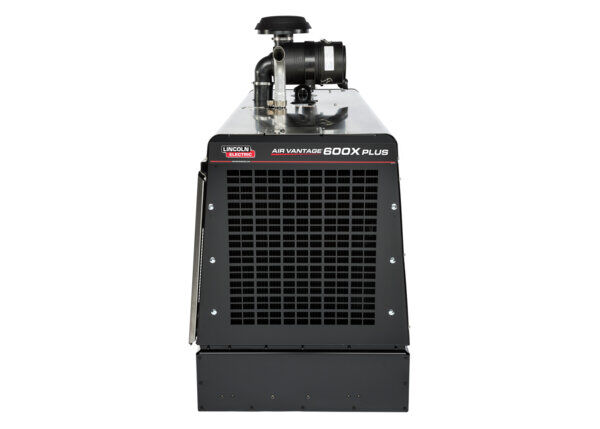

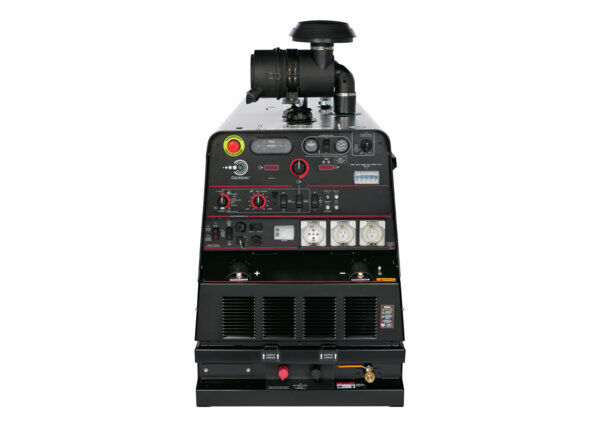

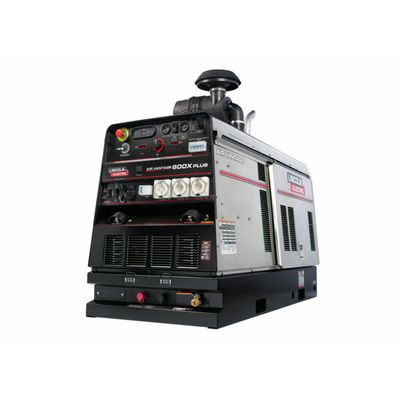

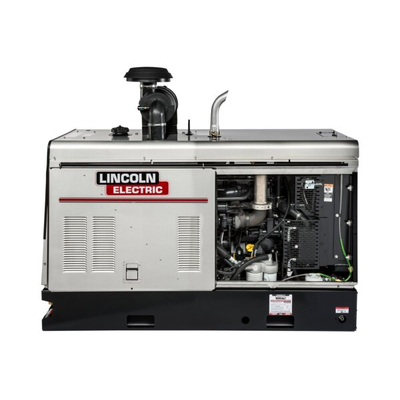

Air Vantage 600X Plus Welder/Generator Lincoln K4794-2

DESCRIPTON:

The new Air Vantage 600X plus - 600A welder / 20Kw 50Hz generator / 60cfm 100psi compressor, all rolled into one extraordinary machine. Prepared to be amazed by its capabilities as it takes your on-site operations to new heights.
With up to 600 amps of DC multi-process welding power at your disposal, there's no limit to what you can achieve. Need a reliable source of three-phase power? Look no further! This powerhouse generator can generate up to 20Kw of pure energy to power your operations.
But wait, there's more. We've included a built-in rotary air compressor, ensuring a continuous supply of 100psi air at an impressive 60cfm. Say goodbye to downtime and hello to uninterrupted productivity.
Rest assured, this powerhouse is designed to meet and exceed site requirements. It comes equipped with 50Hz power, VRD, and a lockable auxiliary switch, providing compliance and peace of mind.
Powered by a robust 65.7hp Deutz TD2.9L4 diesel engine, this machine is ready to conquer any task. And with patented chopper technology, crosslink technology, and true voltage technology (TVT), you can count on advanced arc stability, a safer work site, and enhanced productivity, no matter which welding mode you choose - whether it's Gouge, Stick, Pipe, MIG, TIG, FCAW, or Pulse welding.
Experience the epitome of power, versatility, and productivity. Get ready to take your on-site operations to a whole new level with this 3-in-1 powerhouse. Don't miss out on an opportunity to revolutionise your work site. Empower your projects, boost efficiency, and unlock new possibilities with this extraordinary machine.

SPECIFICATIONS:

Machines Processes	Stick (SMAW), Gouging (CAC-A), TIG (GTAW) MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G), Submerged Arc (SAW)
Open Circuit Voltage	66 Peak OCV @ 1800 RPM
Ingress Protection Rating	IP23
IEC Rating	525A / 41V / 100% @ 104°F (40°C) @ 60Hz
Output Range by Mode	CC-Stick: 30 – 600 A, Downhill Pipe (CC): 40 –350 A, Touch Start TIG: 20 – 350 A, CV-Wire: 10 – 45 V, Arc Gouging: 60 – 600 A
Rated Gouging Carbon Diameter	3/8 in (9.5 mm)
Machines Communication Technology	CrossLinc ArcLink
Wire Feeder Supply Voltage	115VAC; 42VAC; 40VDC
Amphenol Pins (type of connector)	5; 12; 14
Work Lead Connector Type	Lug
Single Phase Auxiliary Output	12,000 Watts Continuous, 120/240V
Three-Phase Auxiliary Output	20,000 Watts Continuous, 240V
Auxiliary Output Frequency	50 Hz

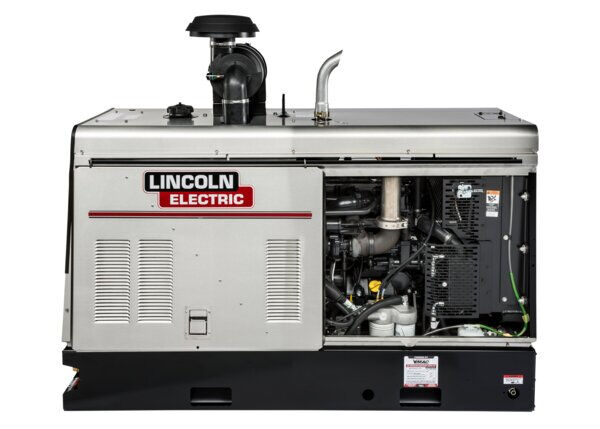

Engine Brand & Model	Deutz® TD2.9L4
Engine Description	4 Cylinder Turbocharged Water Cooled Diesel Engine
Engine Horsepower	65.7 hp (49.0 kW) @ 60Hz
Engine Block Size & Displacement	178 cu. in. (2.9 L), Bore x Stroke - 3.62 in x 4.33 in (92 mm x 110 mm)
Low Idle Operating Speed	1525
Fuel Tank Size (US gal.)	25 US gal.
Fuel Tank Size (L)	94.6 L
Oil Capacity (qts.)	9.0 qts.
Oil Capacity (L)	8.5 L
Coolant Capacity (US gal.)	2.5 US gal.
Coolant Capacity (L)	9.5 L
Air Compressor Brand/Model	VMAC® S700162
Air Compressor Description	Belt Rotary Screw
Air Compressor Output	60 cfm @ 100 psi (1.7 cmm @ 6.9 bar) @ 60Hz
Air Compressor Max System Pressure	150 psi (10.3 bar)
Air Compressor Protections	Safety Relief Valve High Temp Shutdown
Air Compressor Oil Capacity (US gal.)	1.1 US gal.
Air Compressor Oil Capacity (L)	4.0 L
Dimensions (H x W x D)	1067 mm x 836 mm x 1753 mm
Net Weight	788 kg

APPLICATIONS:

Construction
Mining
Railroad Maintenance
Construction and field erection
Heavy equipment
Heavy fabrication
Maintenance and repair
Marine fabrication and repair
Railing industry
Repair welding
Structural fabrication
Structural welding

Part Number/SKU: K4794-2

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	K4794-2
Brand	Lincoln
Shipping Weight	790.0000kg
Shipping Width	0.950m
Shipping Height	1.200m
Shipping Length	1.900m
Shipping Cubic	2.166000000m3
Unit Of Measure	ea
