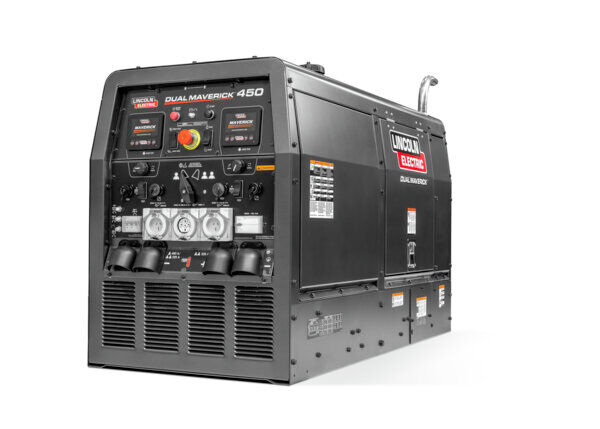

Dual Maverick 450 Engine-Driven Welder Lincoln K4393-2

DESCRIPTION:

A high-speed, diesel engine-driven welder/generator capable of dual pr single operator DC multipurpose welding. The machine features 220 VAC single-phase and 380 VAC three-phase auxiliary power, a user interface screen for advanced features, and patented chopper technology. Powered by a 26.4 hp Perkins D403-11 diesel engine.

FEATURES:

Two welders powered by one diesel engine.
Quite minimized engine noise.
Help increase fuel savings with variable engine RPM based on welding output level and auto stop/start functionality.
Output remains steady even during arc stops and starts in dual mode.
Multi-process and able to run two different processes at one time.
Intuitive interface provides easy setup and increased functionality.
Maintenance reminders help you keep your machine running in peak performance.

SPECIFICATIONS:

Output Range (A)	Single Mode: 50-450 stick/gouge, 30-370 CV, 20-255 TIG Dual Mode: 30-225 stick, 30-230 CV, 20-225 TIG
Rated Output	Single Mode at 40C: 450A/26V/100% . 350A/34V/100% Dual Mode at 40C: 225A/26V/100% . 210A/28.4V/100%
Auxillary Power	14000W total
Engine Model Type	Perkins 403D-11 EPA Tier 4i (International)
Processes	Stick, TIG, MIG, Flux-Cored, Gouging
Weight (kg)	524
Dimensions HxWxD (mm)	936.5 x 718.3 x 1,653.5
Warranty	3 Years
Instruction manual	IM10537

Part Number/SKU: K4393-2

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	K4393-2
Brand	Lincoln
Shipping Weight	530.0000kg
Shipping Width	0.950m
Shipping Height	1.000m
Shipping Length	1.750m
Shipping Cubic	1.662500000m3
Unit Of Measure	ea
