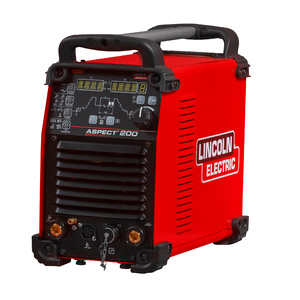

Aspect® 200 AC/DC. Includes: Input cable (2m), 240V 15A plug, gas connection kit and VRD


Top Features

Superb arc performance
Advanced TIG AC & DC Functions
Generator compatible
Cellulosic capability
Energy efficient
Input Power

115/230/1/50/60
Processes

Stick DC, Stick AC, TIG DC, TIG AC, TIG Lift, TIG HF, TIG Pulse

SINGLE PHASE AC/DC TIG WELDER

The Aspect® 200 AC/DC TIG welder has advanced TIG AC & DC Functions (Four wave shapes, Pulse, adjustable Balance and Offset) making it ideal for critical AC or DC TIG welding applications. It offers a simple control panel with bright digital display and an innovative control system, from the torch. It can be simply changed to a water cooled unit by adding the COOL ARC® 24 Water Cooler.

Superb arc performance : excellent HF ignition, stable & fast arc, minimum current 2A
Advanced TIG AC & DC Functions : Four wave shapes, Pulse, adjustable Balance and Offset, innovative and simple control panel, AC auto setting
Generator compatible, ideal for site use
Bright digital display with easy set up buttons, 9 memories, new control from the TIG torch
Energy efficient : 1 phase buck- boost circuit
Rugged construction with potted PCB’s, True HD design
Cellulosic capability
Best aluminium welding performance
16A plug installed on the supply cable

INPUT POWER 115/230/1/50/60
RATED OUTPUT 200A/@35% 130A@100%
INPUT CURRENT 16A
OUTPUT RANGE 2-200A
CYLINDERS 3
DIMENSIONS (H X W X D) 419 mm x 246 mm x 506 mm
NET WEIGHT 23 kg

Machine Included Input cable (3m), Gas connection kit

Optional Accessories
CATEGORYPRODUCT NUMBERPRODUCT NAME
GeneralK14147-1Remote control - hand 15m
GeneralK14148-1Extension for Hand remote control 15m
GeneralK14190-1Water cooler COOL ARC® 24
GeneralW000010167Freezcool cooling liquid for torches (9.6 l) - T°- 27°C
GeneralK14191-1Cart 24
GeneralW000011139Kit 35C50 - 300A- 35 mm² - 4m

Gun Options
PRODUCT NUMBERPRODUCT NAME
GunW000278398-2TIG welding torch PROTIG 30 NG S - 5M
GunW000278399-2TIG welding torch PROTIG 30 NG S - 8M
GunW000278402-2TIG welding torch PROTIG 10W NG S - 5M
GunW000278403-2TIG welding torch PROTIG 10W NG S - 8M
Alternative SKU: YES

Part Number/SKU: K14189-2

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU K14189-2
Brand Lincoln
Shipping Weight 40.0000kg
Shipping Width 0.650m
Shipping Height 0.650m
Shipping Length 0.650m
Shipping Cubic 0.274625000m3
Unit Of Measure ea
