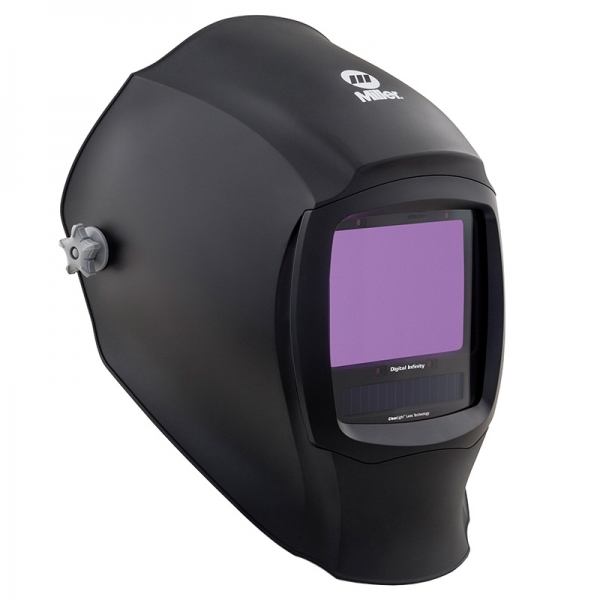

Digital Infinity™ Welding Helmet - Black 280045

AUTO LENS CONTROL SYSTEM

Application Specific Integrated Circuit (ASIC) technology provides:

  • Low current consumption – longer battery life.
  • Increased durability against electro static discharge (ESD) and electro magnetic interference (EMI).
  • Less electronic components therefore increased reliability.

HUGE VIEWING AREA

The large 112 x 78mm viewing area with wide screen format provides an unsurpassed view and eliminates tunnel vision.

SPECIFICATIONS

 Viewing Area    112mm x 78mm
 OPerating Modes   4 Modes : Weld, Cut, Grind, X- Mode
 Arc Sensors   4 Independent Sensors Plux X-Mode
 Light State   Shade 3 (All Modes)
 Grind Mode  Shade  4
 Cut Mode   Shade 5
 X-Mode and Weld   Shade 8-13
 TIG Rating   5 Amps
 Switching Speeds ( Light to Dark)  1/25,000 Sec
 Delay Speeds (Dark to Light)   0.10-1.0 Sec
On/Off Control   Automatic
Magnifying Lens Holder   yes
 Weight   650g




Part Number/SKU: 280045

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SPECIFICATIONS:

Product Specifications
Viewing Area 97 x 60mm
Operating Modes 4 Modes: Weld, Cut, Grind, X-Mode
Arc Sensors 4 Independent Sensors Plus X-Mode
Variable Shades 9-13
Light State 4 (All Modes)
Grind Mode Shade 4
Cut Mode Shade 5-9
X-Mode Shade 9-13
TIG Rating 5 Amps and Below
Power Replaceable Lithium Battery up to 3000 Hours
Switching Speed
(Light - Dark)
1/20,000 Sec
Delay Speed (Dark - Light) 0.10-1.0 Sec
On/Off Control Automatic
Magnifying Lens Holder Yes
Weight 510g
Standards AS/NZS 1338.1 (Auto-Darkening)
AS/NZS 1337.1 B (High Impact)
ANSI Z87.1-2003 (High Impact)
DIN/TUV/CSA
Warranty 3 Years (Auto-darkening lens only)
Rec. Amps GMAW (MIG)
MMAW (Stick)
Up to 400 Amps*
Rec Amps GTAW (TIG) 5-350 Amps**
Digital Lens Technology
Weld Suits MIG, Stick, TIG, Flux Cored and Pulse welding processes. Shades 9-13.
Cut Suits Plasma, Laser, Gas welding and cutting applications. Shades 5-9.
Grind Suits weld preparation and clean-up. Fixed shade 3.
X-Mode Electromagnetic arc sensing technology eliminates sunlight interference, intermittent sensing (pipe), low amperage lens openings (TIG) & obstructed sensors. Shades 9-13.
SKU 280045
Brand Miller
Shipping Weight 1.5000kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.125000000m3
Unit Of Measure ea
