Digital Elite™ Helmet - Black Miller 281000

WHAT IS X-MODE

Sensors are normally triggered by the light when you strike an arc. In X-Mode, the sensors are triggered by the electromagnetic field that is created when you start a weld.

X-Mode overcomes instances where obstructions block a sensor when welding out-of-position. Even when there is an obstruction, the sensor will still trigger because of the electromagnetic field.

For outside work, X-Mode will stop the lens constantly lightening and darkening because of the light triggering the sensors. The sensors will only trigger the lens to darken when you start to weld.

IMPROVED DIGITAL CONTROLS

Digital controls with large displays allow the user to easily adjust modes, shade levels, delay and sensitivity

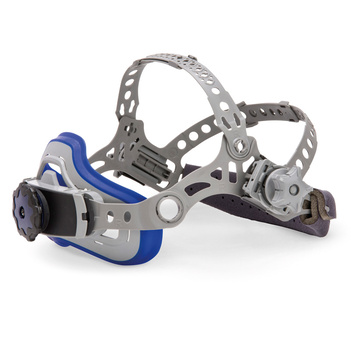

LIGHTWEIGHT HEADGEAR

The lightweight headgear has multiple settings to achieve the best fit and comfort.

SUITS A WIDE RANGE OF WELDING PROCESSES

MIG, Stick, TIG, Flux Cored and Pulse.

FOUR INDEPENDNT ARC
Provide continuous arc sensing for the most demanding applications plus superior lens response.

BONUS ACCESSORIES

  • 5 Outside cover lenses
  • 2 inside cover lenses
  • Helmet bag

3 YEARS WARRANTY
Designed to withstand industrial environments, Miller helmets come with a 3 year warranty (auto-darkening lens only).

SPECIFICATIONS

 Viewing Area   97mm x 60mm
 Operating Modes   4 Modes - Weld, Cut, Grind, X-Mode
 Arc Sensors   4 Independent Sensors Plus X-Mode
 Light Sensors   Shade 3 (All Modes)
 Grind Mode   Shade 4
 Cut Mode  Shade 5-9
 X-Mode and Weld   Shade 8-13
 TIG Rating  5 Amps
 Switching Speeds (Light to Dark)  1/25,000 Sec
  Delay Speeds (Dark To Light)  0.10-1.0 Sec
On/Off Control  Automatic
 Magnifying Lens Holder  Yes
 Weight   510g




Part Number/SKU: 281000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SPECIFICATIONS:

Product Specifications
Viewing Area 97 x 60mm
Operating Modes Weld, Cut, Grind & X-Mode*
Arc Sensors 4 Independent Sensors Plus X-Mode
InfoTrack Lens Technology Yes
Variable Shades 9-13
Light State 4 (All Modes)
Grind Mode Shade 4
Cut Mode Shade 5-9
X-Mode* Shade 9-13
TIG Rating 5 Amps
Power Replaceable Lithium batteries (2) with Solar Assist (up to 3000 hours)
Low Battery Light Red LED shows 2-3 days of remaining battery life
Switching Speed (Light-Dark) 1/20,000 Sec
Delay Speed (Dark-Light) 0.10-1.0 Sec
On/Off Control Automatic
Magnifying Lens Holder Yes
Weight 595g
Standards

AS/NZS 1338.1 (Auto-Darkening)
AS/NZS 1337.1 B (High Impact)
ANSI Z87.1-2003 (High Impact)
DIN/TUV/CSA

Warranty 3 Years (Auto-Darkening Lens Only)
* X-Mode eliminates sunlight interference, intermittent sensing (pipe), low amperage lens openings (TIG) and obstructed senso
Digital Lens Technology
Weld Suits MIG, Stick, TIG, Flux Cored and Pulse welding processes. Shades 9-13.
Cut Suits Plasma, Laser, Gas welding and cutting applications. Shades 5-9.
Grind Suits weld preparation and clean-up. Fixed shade 3.
X-Mode Electromagnetic arc sensing technology eliminates sunlight interference, intermittent sensing (pipe), low amperage lens openings (TIG) & obstructed sensors. Shades 9-13.
SKU 281000
Brand Miller
Shipping Weight 1.0000kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.125000000m3
Unit Of Measure ea
