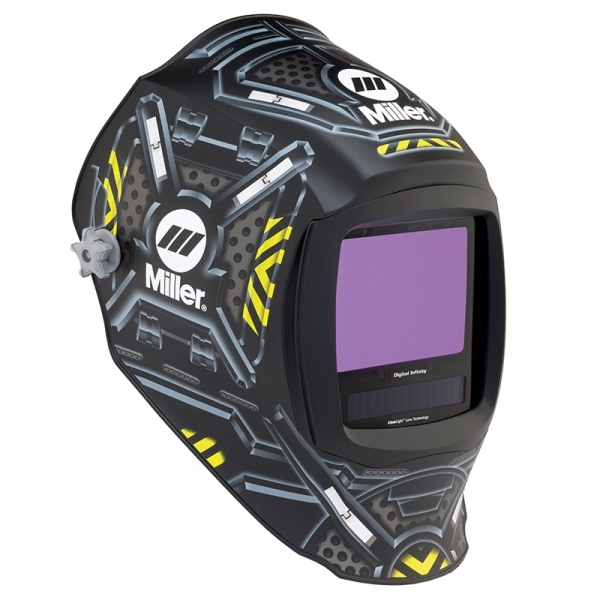

Digital Infinity™ Helmet - Black Ops 280047

CLEARLIGHT™ LENS TECHNOLOGY

High-definition optics for precision arc recognition. Engineered to complement the colours emitted from the welding arc for enhanced clarity and natural colour — so that you can see more detail.

WHAT IS X-MODE

Sensors are normally triggered by the light when you strike an arc. In X-Mode, the sensors are triggered by the electromagnetic field that is created when you start a weld.

X-Mode overcomes instances where obstructions block a sensor when welding out-of-position. Even when there is an obstruction, the sensor will still trigger because of the electromagnetic field.

For outside work, X-Mode will stop the lens constantly lightening and darkening because of the light triggering the sensors. The sensors will only trigger the lens to darken when you start to weld.

IMPROVED DIGITA CONTROLS
Digital controls with large displays allow the user to easily adjust modes, shade levels, delay and sensitivity.

LIGHTWEIGHT HEADGEAR
The lightweight headgear has multiple settings to achieve the best fit and comfort.

AUSTRALIAN STANDARDS

Tested in Australia, the lens and helmet comply with Australian Standards AS/NZS 1338.1 (Auto-Darkening) and AS/NZS 1337.1 B (High Impact).

FOUR INDEPENDENT ARC SENSONS

Provide continuous arc sensing for the most demanding applications plus superior lens response.

BATTERY POWERED WITH SOLAR ASSIST

 Two replaceable lithium batteries, with solar assist, deliver up to 3000 hours of use.

MAGNETIC LENS COMPATIBLE

Add a magnifying lens if required. Magnifying lens not included.

BONUS ACCESSORIES

  • 5 Outside cover lenses.
  • 2 Inside Cover lenses.
  • Helmet Bag

3 YEARS WARRANTY

Designed to withstand industrial environments, Miller helmets come with a 3 year warranty (auto-darkening lens only).

SPECIFICATIONS

 Viewing Area    112mm x 78mm
 OPerating Modes   4 Modes : Weld, Cut, Grind, X- Mode
 Arc Sensors   4 Independent Sensors Plux X-Mode
 Light State   Shade 3 (All Modes)
 Grind Mode  Shade  4
 Cut Mode   Shade 5
 X-Mode and Weld   Shade 8-13
 TIG Rating   5 Amps
 Switching Speeds ( Light to Dark)  1/25,000 Sec
 Delay Speeds (Dark to Light)   0.10-1.0 Sec
On/Off Control   Automatic
Magnifying Lens Holder   yes
 Weight   650g




Part Number/SKU: 280047

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SPECIFICATIONS:

Product Specifications
Viewing Area 97 x 60mm
Operating Modes 4 Modes: Weld, Cut, Grind, X-Mode
Arc Sensors 4 Independent Sensors Plus X-Mode
Variable Shades 9-13
Light State 4 (All Modes)
Grind Mode Shade 4
Cut Mode Shade 5-9
X-Mode Shade 9-13
TIG Rating 5 Amps and Below
Power Replaceable Lithium Battery up to 3000 Hours
Switching Speed
(Light - Dark)
1/20,000 Sec
Delay Speed (Dark - Light) 0.10-1.0 Sec
On/Off Control Automatic
Magnifying Lens Holder Yes
Weight 510g
Standards AS/NZS 1338.1 (Auto-Darkening)
AS/NZS 1337.1 B (High Impact)
ANSI Z87.1-2003 (High Impact)
DIN/TUV/CSA
Warranty 3 Years (Auto-darkening lens only)
Rec. Amps GMAW (MIG)
MMAW (Stick)
Up to 400 Amps*
Rec Amps GTAW (TIG) 5-350 Amps**
Digital Lens Technology
Weld Suits MIG, Stick, TIG, Flux Cored and Pulse welding processes. Shades 9-13.
Cut Suits Plasma, Laser, Gas welding and cutting applications. Shades 5-9.
Grind Suits weld preparation and clean-up. Fixed shade 3.
X-Mode Electromagnetic arc sensing technology eliminates sunlight interference, intermittent sensing (pipe), low amperage lens openings (TIG) & obstructed sensors. Shades 9-13.
SKU 280047
Brand Miller
Shipping Weight 1.5000kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.125000000m3
Unit Of Measure ea
