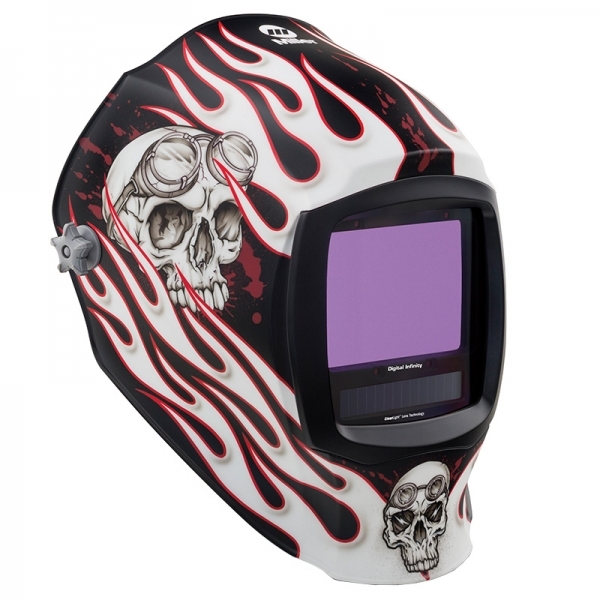

Digital Infinity™ Welding Helmet - Departed 280048

- Huge Viewing Area for Heavy Industrial Applications.

HUGE VIEWING AREA

The large 112 x 78mm viewing area with wide screen format provides an unsurpassed view and eliminates tunnel vision.

INFOTRACKTM TECHNOLOGY

Exclusive arc tracking technology includes a digital clock and alarm, making it possible to track welding time, and features a multi-language help menu for support.

SPECIFICATIONS

 Viewing Area   112mm x 78mm
 Operating Modes  4 Modes - Weld, Cut, Grind, X-Mode
 Arc Sensors   4 Independent Sensors Plus X-Mode
 Light State   Shade 3 ( All Modes)
 Grind Mode   Shade 4
 Cut Mode   Shade 5-9
 X-Mode And Weld   Shade 8-13
 TIG Rating   5 Amps
 Switching Speeds (Light to Dark)  1/25,000 Sec
 Delay Speeds ( Dark To Light)   0.10.10 Sec
 On/Off Control   Automatic
 Magnifying Lens Holder   Yes
 Weight   650g




Part Number/SKU: 280048

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SPECIFICATIONS:

Product Specifications
Viewing Area 97 x 60mm
Operating Modes 4 Modes: Weld, Cut, Grind, X-Mode
Arc Sensors 4 Independent Sensors Plus X-Mode
Variable Shades 9-13
Light State 4 (All Modes)
Grind Mode Shade 4
Cut Mode Shade 5-9
X-Mode Shade 9-13
TIG Rating 5 Amps and Below
Power Replaceable Lithium Battery up to 3000 Hours
Switching Speed
(Light - Dark)
1/20,000 Sec
Delay Speed (Dark - Light) 0.10-1.0 Sec
On/Off Control Automatic
Magnifying Lens Holder Yes
Weight 510g
Standards AS/NZS 1338.1 (Auto-Darkening)
AS/NZS 1337.1 B (High Impact)
ANSI Z87.1-2003 (High Impact)
DIN/TUV/CSA
Warranty 3 Years (Auto-darkening lens only)
Rec. Amps GMAW (MIG)
MMAW (Stick)
Up to 400 Amps*
Rec Amps GTAW (TIG) 5-350 Amps**
Digital Lens Technology
Weld Suits MIG, Stick, TIG, Flux Cored and Pulse welding processes. Shades 9-13.
Cut Suits Plasma, Laser, Gas welding and cutting applications. Shades 5-9.
Grind Suits weld preparation and clean-up. Fixed shade 3.
X-Mode Electromagnetic arc sensing technology eliminates sunlight interference, intermittent sensing (pipe), low amperage lens openings (TIG) & obstructed sensors. Shades 9-13.
SKU 280048
Brand Miller
Shipping Weight 1.5000kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.125000000m3
Unit Of Measure ea
