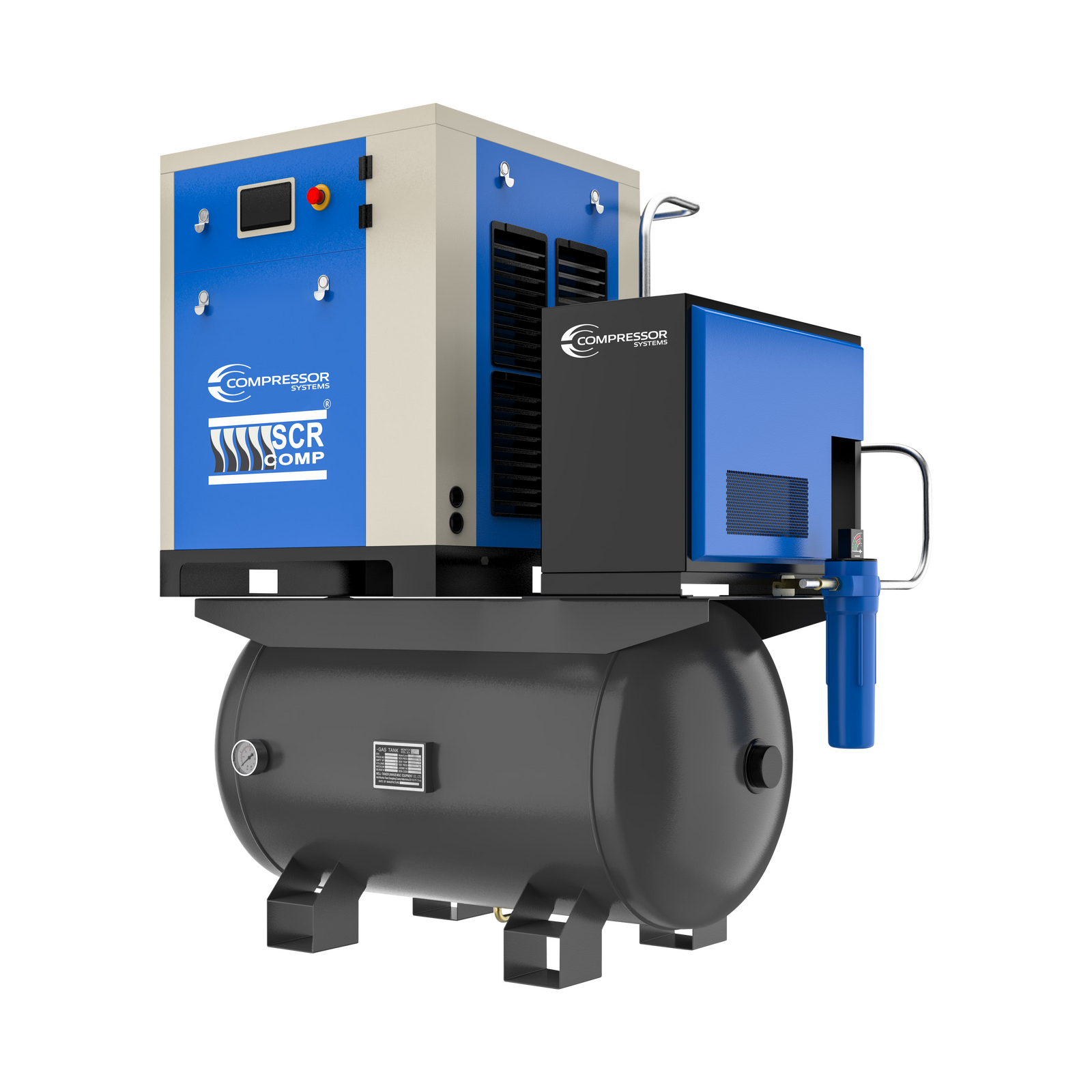

7.5kW 10HP Variable Speed Rotary Screw Air Compressor SCR10 APM TD with 300L Receiver, Dryer & Filters

Description

Compressor Systems SCR10 APM 7.5kw Three Phase 415V Variable Speed Drive Rotary Screw Compressor with integrated Air Receiver, dryer and pre/post filters.

The APM series works by ramping up and down to coincide with your air demands, supplying only the amount of air and constant pressure needed. Unlike fixed-speed compressors, the SCR APM’s goal is to keep the compressor continually on load and avoid running time offload. APM compressors have a wide variable range, making them suitable for multiple applications, resulting in significant energy savings and minimising CO2 emissions.

• Power: 7.5 kw (10 hp)
• Max pressure: 8 bar (Available in 10 bar as well)
• Free Air Delivery (FAD): 39 cfm @ 8 bar
• Air Outlet: RC ½ “
• Dimensions (L x W x H mm): 1480 x 895 x 1722
• Weight: 471 kg
• Air Receiver Size: 300L
• Noise Level: 64 dBa

Features:

• Variable Speed with Inverter Drive

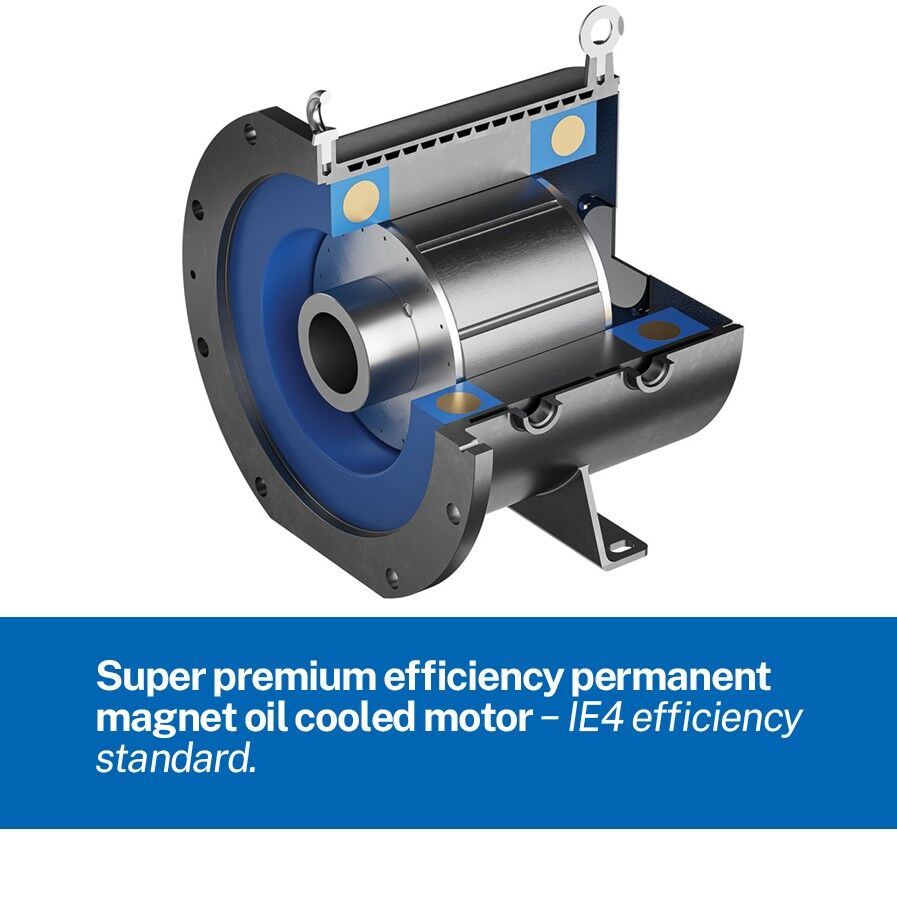

• Super Premium Efficiency oil cooled Permanent Magnet Electric motor (IE4 equivalent)
• Compact Footprint for more efficient usage of your valuable floor space
• Standard Pre & Post Filtration of particles down to 0.01 micron and oil removal.
• Standard Refrigeration Air Dryer keeping the dew point down to 3-6ºC, removing moisture from the compressed air
• Standard 2 years Warranty on compressor and 1 year on dryer

Part Number/SKU: SCR10APM-TD
Model Number: SCR10 APM TD

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
