11kW 15HP Variable Speed Rotary Screw Compressor SCR15 APM TD with Air Receiver, Dryer & Pre/Post Filters

Description

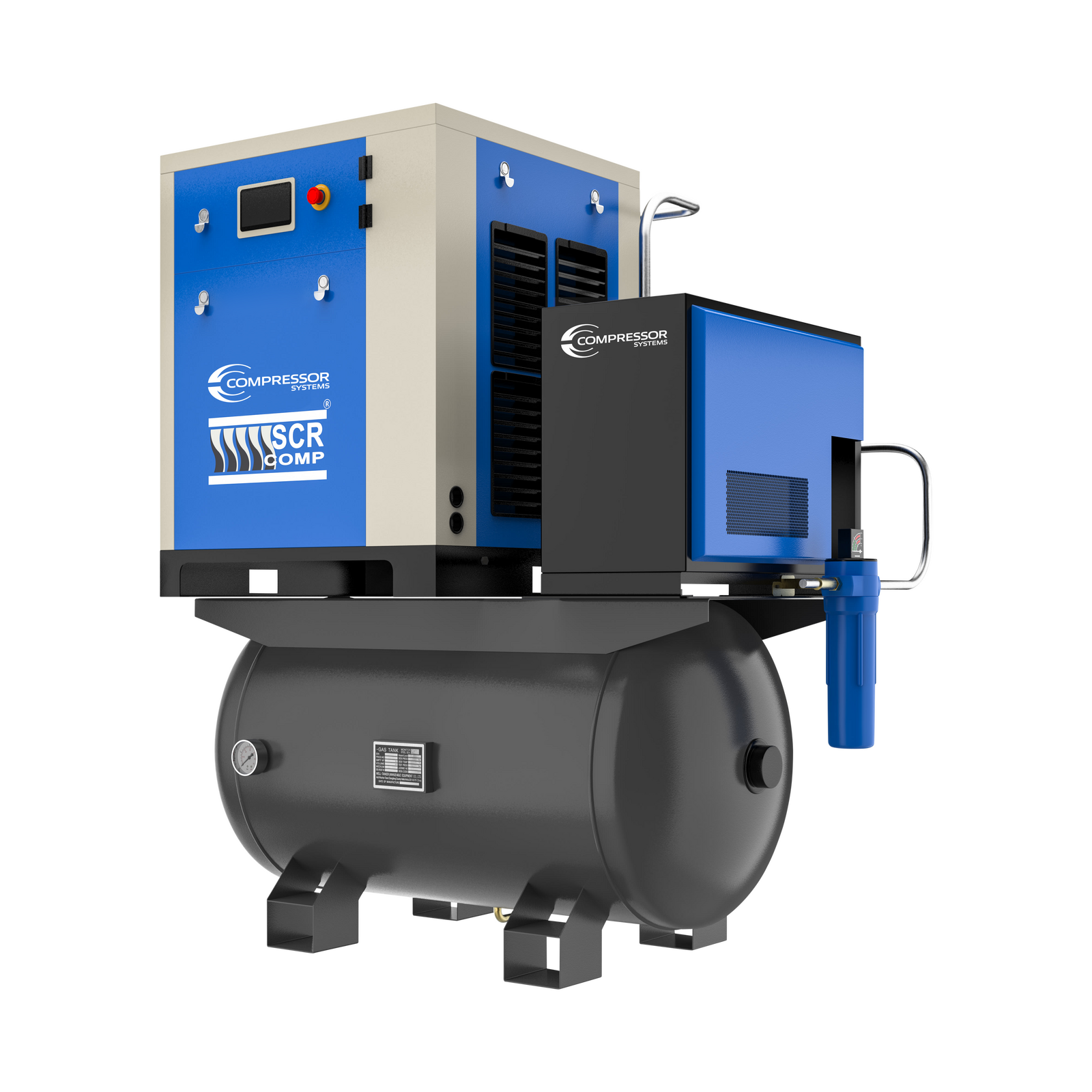

Compressor Systems SCR15 APM 11kw Three Phase 415V Variable Speed DriveRotary Screw Compressor with integrated Air Receiver, dryer and pre/post filters.

The APM series works by ramping up and down to coincide with your air demands, supplying only the amount of air and constant pressure needed. Unlike fixed-speed compressors, the SCR APM’s goal is to keep the compressor continually on load and avoid running time offload. APM compressors have a wide variable range, making them suitable for multiple applications, resulting in significant energy savings and minimising CO2 emissions.

• Power: 11kw (15 hp)
• Max pressure: 8 bar (Available in 10 bar as well)
• Free Air Delivery (FAD): 60 cfm @ 8 bar
• Air Outlet: RC 3/4 “
• Dimensions (L x W x H mm): 1664*966*1883
• Weight: 534 kg
• Air Receiver Size: 500L
• Noise Level: 66 dBa

Features:

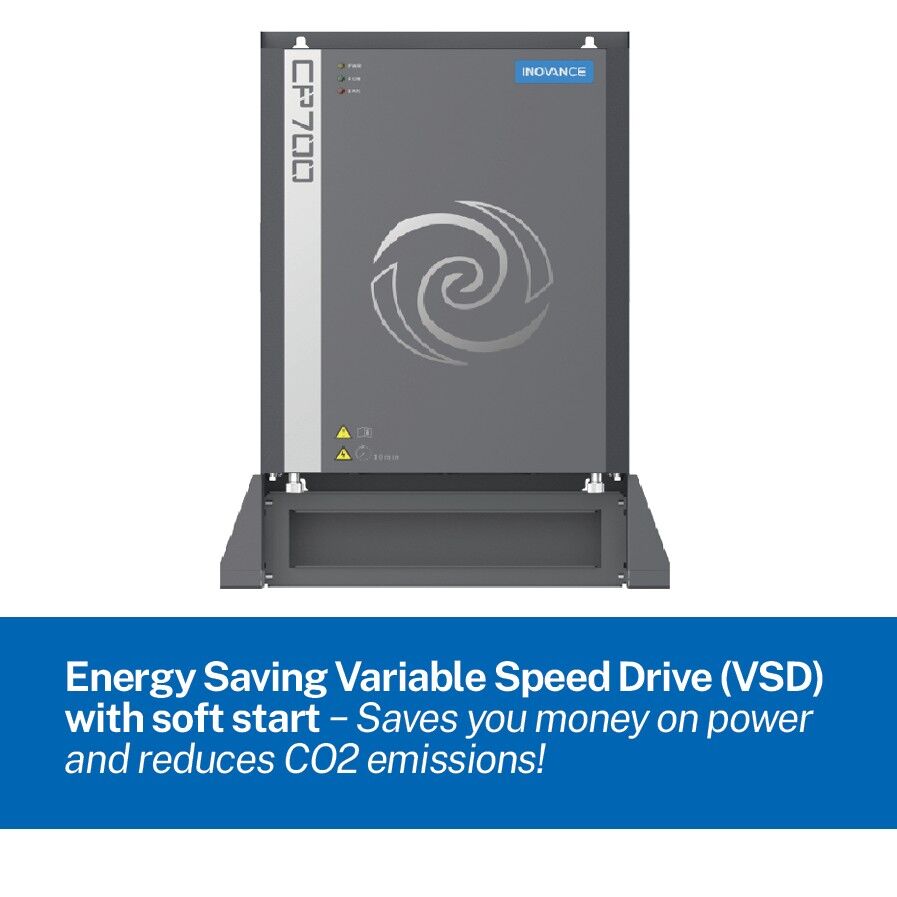

• Variable Speed with Inverter Drive

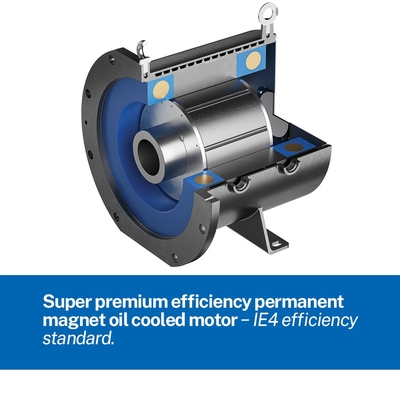

•  Super Premium Efficiency oil cooled Permanent Magnet Electric motor (IE4 equivalent)
•  Compact Footprint for more efficient usage of your valuable floor space
•  Standard Pre & Post Filtration of particles down to 0.01 micron and oil removal.
•  Standard Refrigeration Air Dryer keeping the dew point down to 3-6ºC, removing moisture from the compressed air
• Standard 2 years Warranty on compressor and 1 year on dryer
