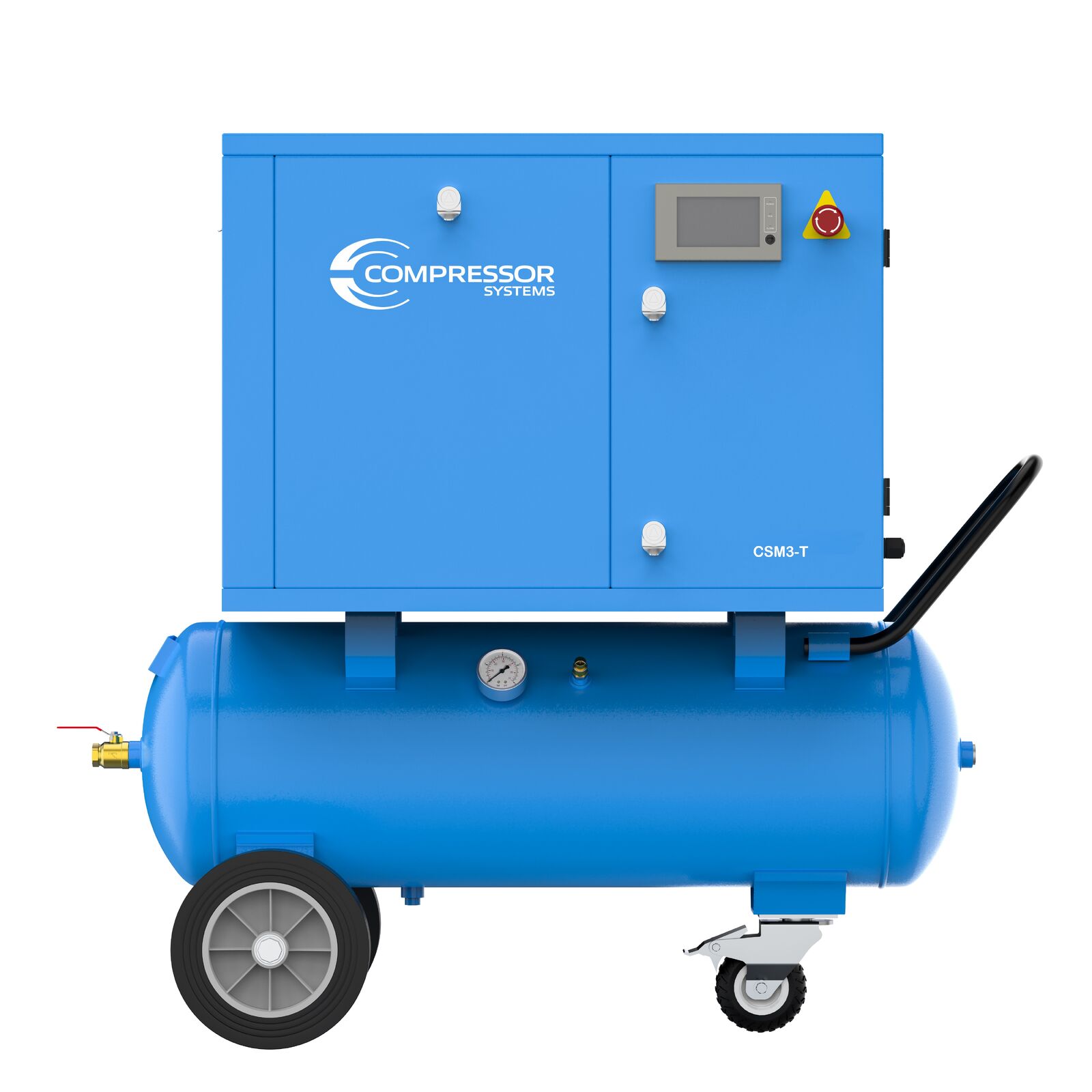

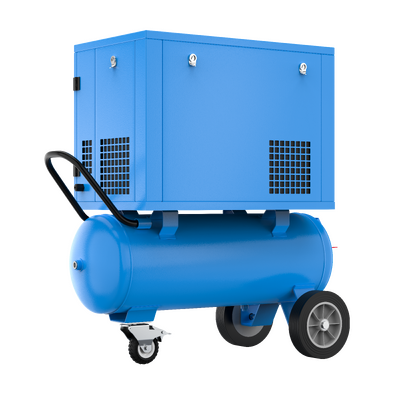

240V 20A 4HP Super Quiet Single Phase Screw Air Compressor CSM3-T 100L Tank

Description:

Compressor Systems CSM3-T 240V 20 Amp 4HP 100L Tank Single Phase Super
Quiet Screw Air Compressor
Compressor Systems is pleased to introduce the latest in advanced compressed air technology. Our new direct drive rotary screw CSM (Mini) range offers reliable, quiet, performance at an affordable price. The smallest model we provide in both size and kW is compact and space-efficient, making it ideal for applications with limited space. The CSM is also portable and easy to move around as needed. The range consists of 2.2kW (15amp) and
3KW (20amp) single-phase units operating at 240V. All CSM models operate at a maximum 10 bar working pressure.

• Power: 3kw (4 hp)
• Max pressure: 10 bar
• Free Air Delivery (FAD): 14 cfm (396 l/m) @ 10 bar
• Air Outlet: Rc 3/4”
• Dimensions (L x W x H mm): 1226 x 500 x 1170
• Air Receiver Size: 100L
• Noise Level: 59 dBa

Features:

•  3kw 20amp / 4kw 240v Direct Drive Rotary Screw
• 10 bar max pressure
• 14CFM Flow (FAD)
• Direct drive (no belts)
• Energy saving intelligent micro controller
• Schneider electrical components
• SKF bearings in airend and motor
•  Australian design registered air receiver
• Overload, pressure and temperature safety protection

Part Number/SKU: CSM3-T

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
