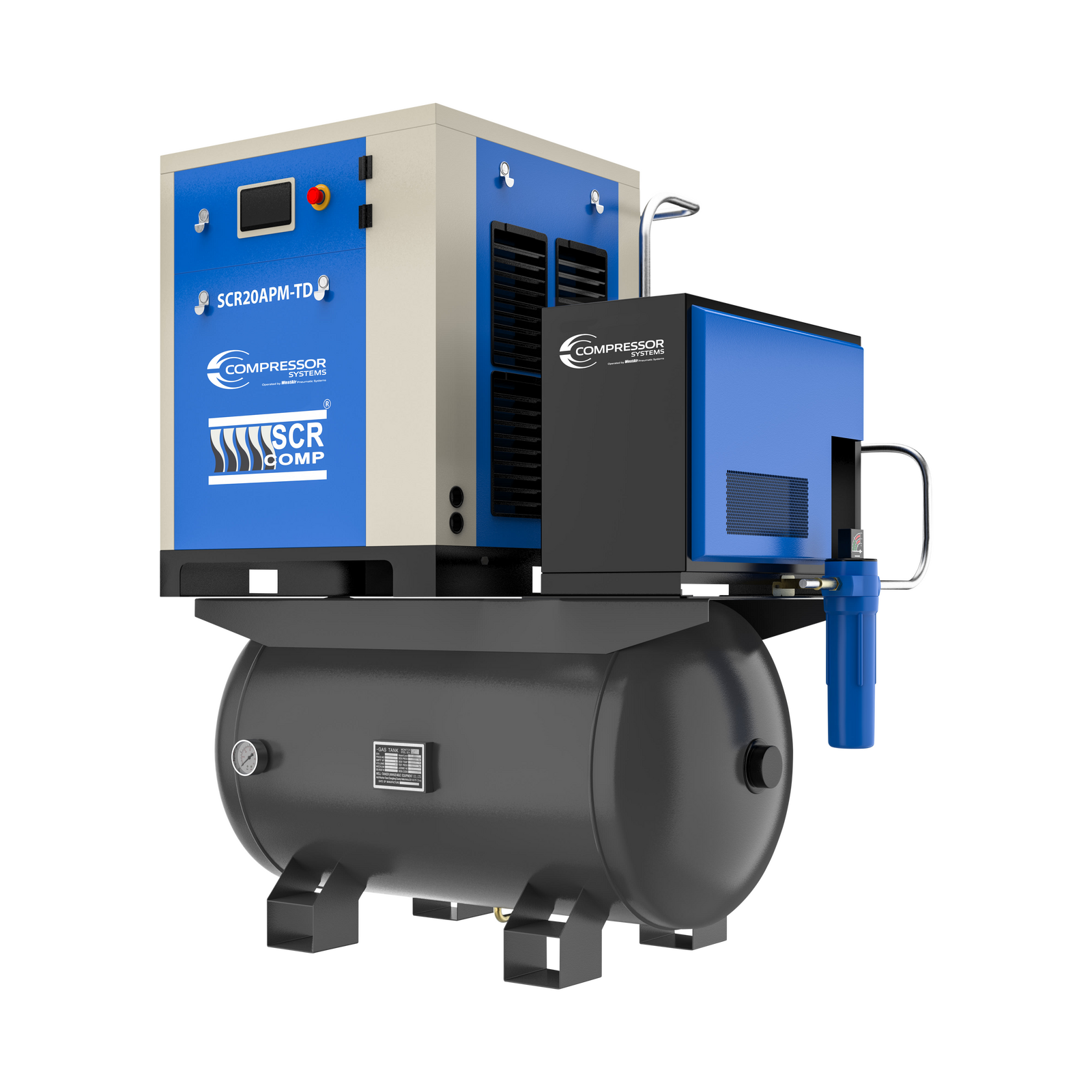

15kW 20HP Variable Speed Rotary Screw Compressor SCR20 APM TD with Air Receiver, Dryer & Filtration System

Description

Compressor Systems SCR20 APM 15kw Three Phase 415V Variable Speed Drive Rotary Screw Compressor with integrated Air Receiver, dryer and pre/post filters
The APM series works by ramping up and down to coincide with your air demands, supplying only the amount of air and constant pressure needed. Unlike fixed-speed compressors, the SCR APM’s goal is to keep the compressor continually on load and avoid running time offload. APM compressors have a wide variable range, making them suitable for multiple applications, resulting in significant energy savings and minimising CO2 emissions.

• Power: 15 kw (20 hp)
• Max pressure: 8 bar (Available in 10 bar as well)
• Free Air Delivery (FAD): 81 cfm @ 8 bar
• Air Outlet: RC ¾”
• Dimensions (L x W x H mm): 1664*966*1883
• Weight: 566 kg
• Air Receiver Size: 500L
• Noise Level: 67 dBa

Features:

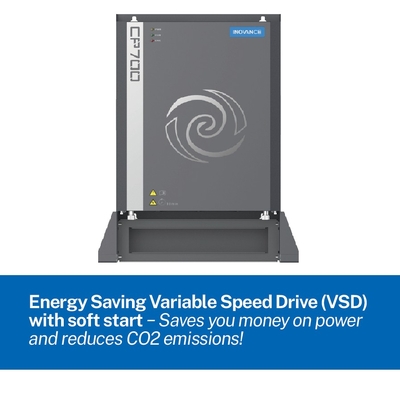

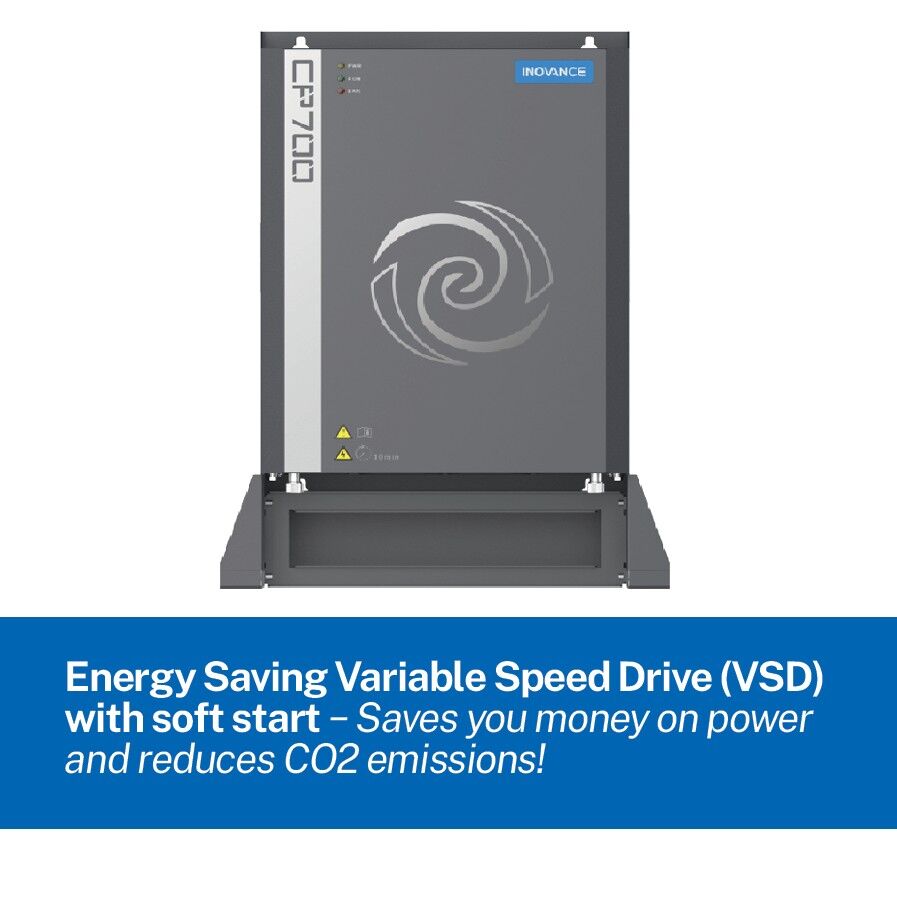

• Variable Speed with Inverter Drive

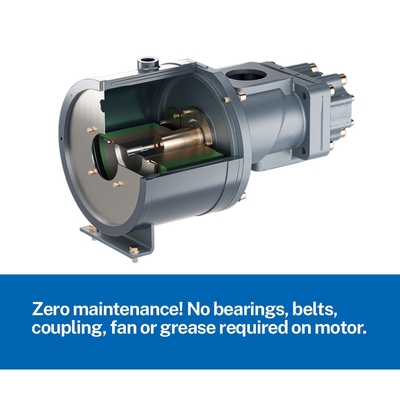

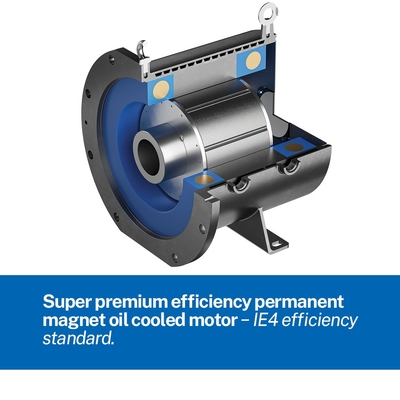

• Super Premium Efficiency oil cooled Permanent Magnet Electric motor (IE4 equivalent)
• Compact Footprint for more efficient usage of your valuable floor space
• Standard Pre & Post Filtration of particles down to 0.01 micron and oil removal.
• Standard Refrigeration Air Dryer keeping the dew point down to 3-6ºC, removing moisture from the compressed air
• Standard 2 years Warranty on compressor and 1 year on dryer

Part Number/SKU: SCR20APM-TD

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
