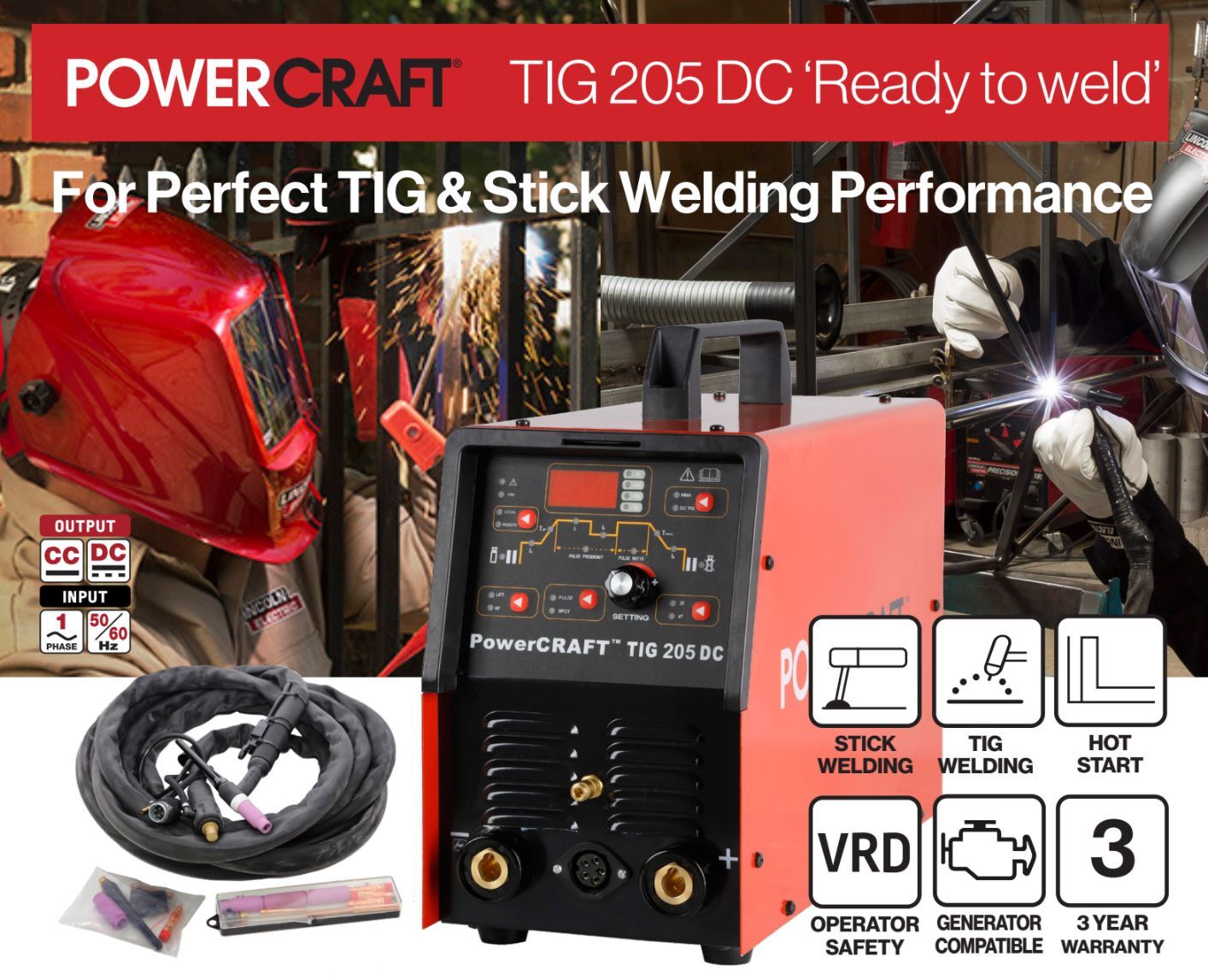

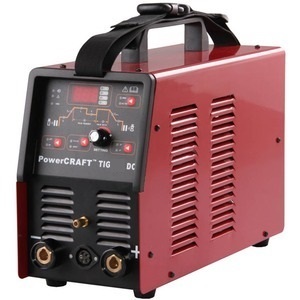

Powercraft TIG 205DC - K69029-4 - Ready To Weld

The PowerCRAFT™  TIG 205 DC inverter machine is intended to be used for light to medium duty welding application. It is an ideal choice for maintenance, small repairs & general fabrication. The PowerCRAFT™ machines are designed to be used on stainless steel, carbon steel, copper, titanium and other metals. The PowerCRAFT™  inverter machines are very compact, lightweight, accessories are included, so the machine is ready to weld out of the box.

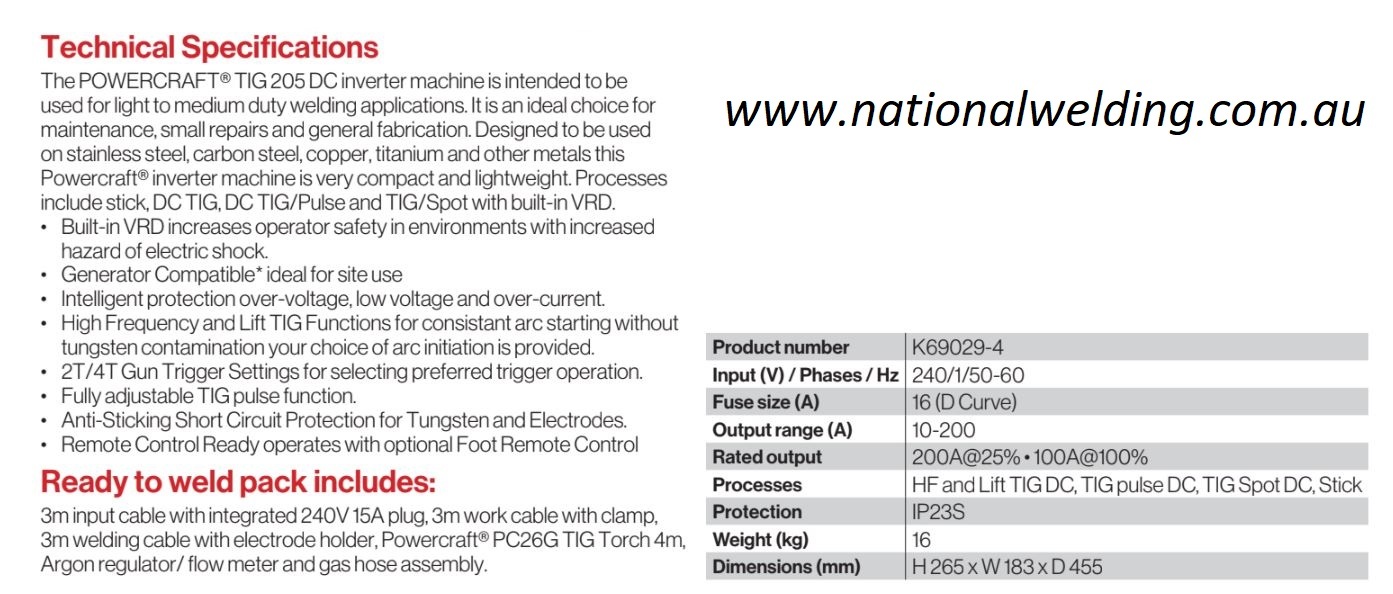

Specifications

 Product number  K69029-4
 Input (V)  240/1/50-60
Fuse size (A) 16 (D Curve)
Output range (A) 10-200
Rated output 200A@25% • 100A@100%
Processes  HF and Lift TIG DC, TIG pulse DC,
TIG Spot DC, Stick
 Protection / Insulation class  IP23S
Weight (kg)  16
Dimensions HxWxD (mm)  265 x 183 x 455
Warranty  3 year (Limited)
Generator compatible  8 kVA (Peak Max 380 Volts)

FOR STICK WELDING

  •  Adjustable Arc Force Control of short circuit currents.
  •  Hot Start Adjust your desired start current.
  • IGBT technology For high reliability
  • Easy to set Output Controls Digital Display
  • Ready to weld with accessories Accessories/ power cord included
  • Meets AS60974.1/ AS/NZS CISPR 11and IEC 60974-1/ IEC60974-10 Australian and International Standards

APPLICATIONS

  • General fabrication
  • Maintenance/ repair
  • Rural
  • Home handy man

UNIT INCLUDES

  • 3 meter input cable with integrated plug
  • 3 meter ground cable with work clamp
  • 3 meter welding cable with electrode holder
  • PowerCRAFT™ PC26G TIG Torch - 8 Metres
  • Argon regulator/ flow meter
  • Gas Hose Assy

Part Number/SKU: K69029-4

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU K69029-4
Brand Lincoln
Shipping Weight 45.0000kg
Shipping Width 0.650m
Shipping Height 0.650m
Shipping Length 0.650m
Shipping Cubic 0.274625000m3
Unit Of Measure ea

1 Year Warranty Parts & labour
