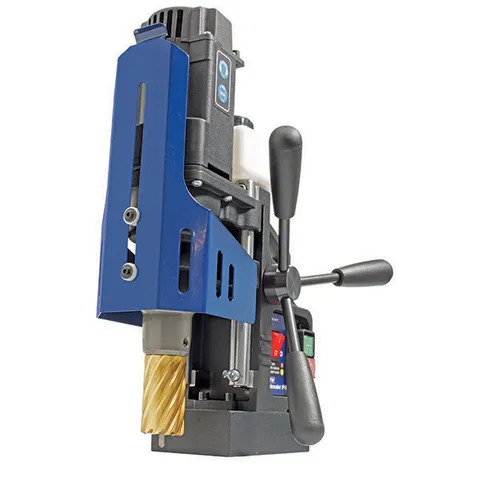

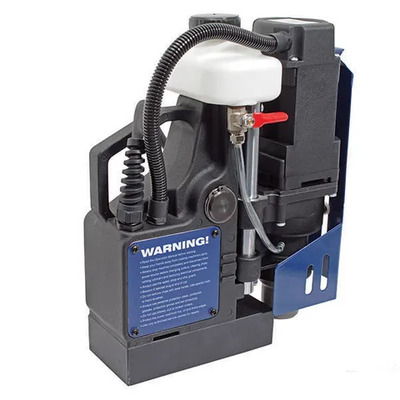

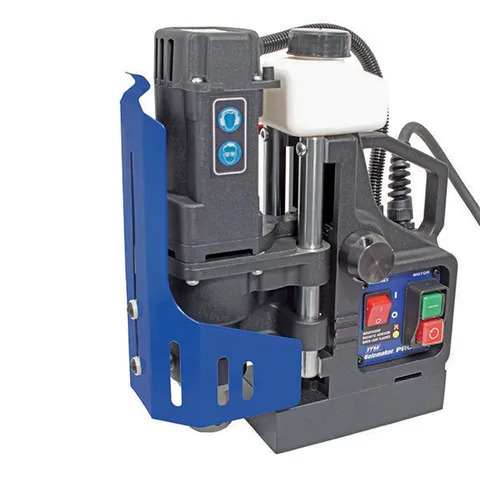

Magnetic Base Drill PRO35 240V 35mm x 52mm Holemaker HMPRO35

Bonus Available Untill 30/06/2021-Holemaker 3 Piece Metric Silver Series Annular Cutter Set - 25mm Depth ASSET-Z

The Holemaker Pro 35 is a high quality, compact and robust, fully featured machine. Weighing in at just 10kg, this machine is ideal for those onsite and overhead tasks, whilst the solid, robust construction means the PRO 35 is perfect for everyday manufacturing type applications. The 35mm Diameter and 52mm Depth cutting capacity will suffice for most general holemaking requirements. Other standard features include a gravity feed coolant system with a magnetically attached coolant bottle, which can be easily removed and attached to the work piece, allowing coolant feed whilst drilling in horizontal applications. The feed handles can be placed on either the left or right hand side, providing further versatility when using this compact machine in tight positions. Dual rail slide system provides rigidity and eliminates the need for gib adjustments. The well designed cutter guard system is easy to use and practical.

Features :

  • Quality, Compact & Robust European Made Machine
  • Lightweight, only 10 kg! Ideal for onsite & overhead tasks
  • Capacity (diameter) 35mm
  • Capacity (depth) 52mm
  • Gravity feed collant system with magnetically attached bottle

SPECIFICATIONS

  • Capacity ( Diameter ): 35mm
  • Capacity ( Depth ): 52mm
  • Motor Power: 920 watt
  • Input Power: 1000 watt Single Phase 240V
  • Speed: 350rpm
  • Weight: 10.0kg
  • Magnetic Dead Lift: 9500Nm On 25mm Steel Plate
  • Stroke: 70mm
  • Height: 306mm min / 376mm max
  • Through Spindle Coolant System
  • Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
  • Supplied In Plastic Carry Case With Cutter Guard & Safety Strap




Part Number/SKU: HMPRO35

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Specifications :

Part #  HMPRO35
Capacity ( Diameter ) 35mm
Capacity ( Depth ) 52mm
Motor Power 920Watt
Input Power 1000Watt
Single Phase 240V Speed
Weight  10.0kg
Magnetic Dead Lift 9500N-m on 25mm Steel Plate
Stroke 70mm
Height ( min / max )  306 / 376mm
Through Spindle Coolant System
Smart Magnet Technology to ensure sufficient Magnetic Adhesion
Supplied In Plastic Carry Case with Cutter Guard & Safety Strap



SKU HMPRO35
Brand Holemaker
Shipping Weight 12.0000kg
Shipping Width 0.600m
Shipping Height 0.600m
Shipping Length 0.600m
Shipping Cubic 0.216000000m3
Unit Of Measure ea
