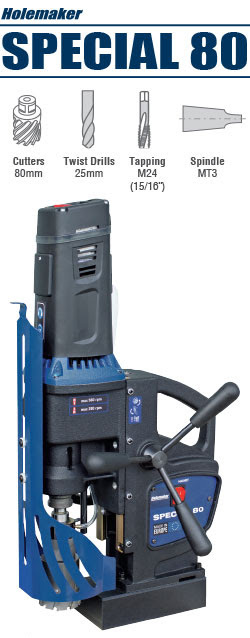

Magnetic Base Drill 240V 3 Metres Holemaker HMSPECIAL80

FEATURES
#3 MORSE TAPER, VERSATILE DRILLING & TAPPING MACHINE

The Holemaker Special 80 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine’s forward & reverse work modes with variable speed adjustment allows thread cutting up to M24 of through holes and blind holes.

Features

  • New generation Italian made motor
  • Intelligent speed control system maintains stable speed regardless of load changes
  • Electronic Variable Speed Control
  • Electronic clutch
  • Overload and Overheat protection
  • Tilt sensor stops the motor in cases of machines break away
  • 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
  • Intuitive control panel at top of the drill
  • Very light weight
  • Supplied in a durable blow mould carry case with cutter guard & safety strap

SPECIFICATIONS

  • Capacity ( Diameter ): 80mm
  • Capacity ( Depth ): 110mm
  • Twist drill capacity: 25mm
  • Tap capacity: M24
  • #3 Morse Taper spindle
  • 1500 Watt 240V motor
  • 2 Speed variable gearbox (120-190 / 290-450rpm)
  • Lightweight, only 18kg
  • 11000Nm Magnetic dead lift on 25mm steel plate
  • 190mm Stroke
  • Height 554mm min / 744mm max

Supplied with arbor for use with 3/4” shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor for 1-1/4” shank cutters up to 80mm diameter and 110mm depth.


Part Number/SKU: HMSPECIAL80

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU HMSPECIAL80
Brand Holemaker
Shipping Weight 20.0000kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.600m
Shipping Cubic 0.150000000m3
Unit Of Measure ea
