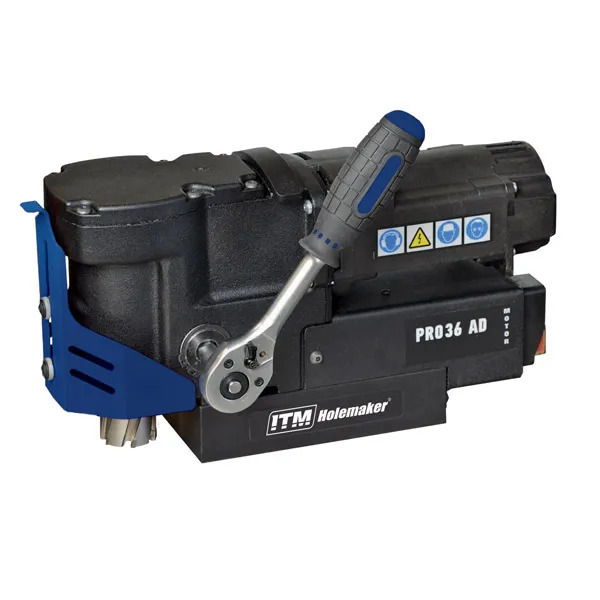

Magnetic Base Angle Drill 240V Holemaker HMPRO36AD

The PRO 36 AD is an ultra-low profile mag drill, that fits in the tightest of spots. Perfect solution for any applications in confined spaces, where typical mag drills are too large. A powerful motor and strong electromagnetic base enable drilling of holes up to 36 mm diameter to a depth of up to 30 mm (1-3/16").
PRO-36 AD accepts both TCT and HSS cutters as well as twist drill drills with 19,05 mm (3/4") Weldon shank.

Features:.

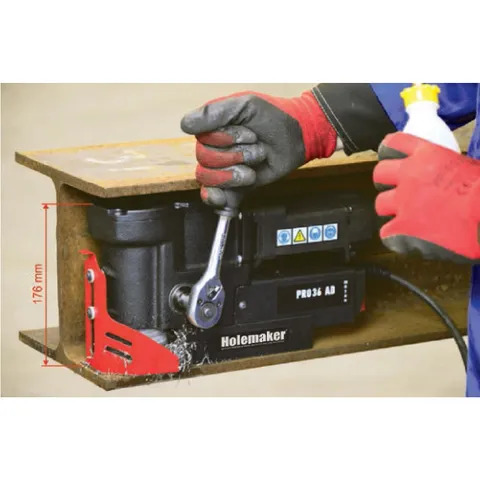

  • Ultra-low profile mag drill of 176 mm height only.
  • Extremely low weight of just 9.5 kg (21 lbs).
  • Milling capacity up to 36 mm (1-7/16”).
  • Accepts also twist drills with 19,05 mm (3/4”) Weldon shank.
  • Stroke – 39 mm.
  • Integrated swarf guard.
  • Detachable feed lever (feat. ratchet) can be fixed from either side.
  • Lifting handle for easy transportation.
  • Cooling with a bottle

SPECIFICATIONS

   CAPACITY (Diameter)   36mm
   CAPACITY (Depth)   30mm
   CAPACITY (Twist Drill)   12mm
   MOTOR POWER     920 Watt
  INPUT POWER   1000 Watt Single Phase 240V
  SPEED    370 rpm
  WEIGHT     9.5 kg
  MAGNETIC DEAD LIFT    8900Nm on 25mm Steel Plate
  STROKE     370rpm
  HEIGHT    176mm Constant Working Height




Part Number/SKU: HMPRO36AD

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU HMPRO36AD
Brand Holemaker
Shipping Weight 12.0000kg
Shipping Width 0.500m
Shipping Height 0.400m
Shipping Length 0.500m
Shipping Cubic 0.100000000m3
Unit Of Measure ea
