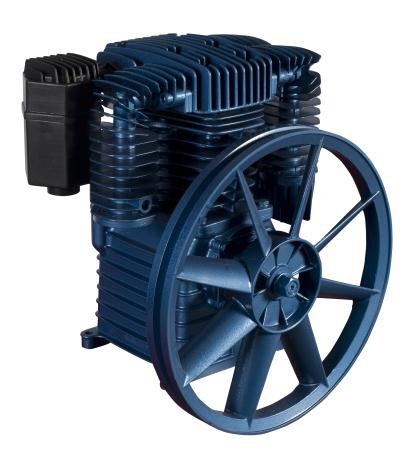

COMPRESSOR PUMP MODEL: K50-PUMP

CYLINDERS                           2

STAGE                                    2

MAX PRESSURE (BAR)         11*

MOTOR (KW)                         7.5

FLYWHEEL (MM)                   550

BELT SECTION                      2B

DIMENSIONS

A                                    210 mm

B                                    160 mm

C                                    290 mm

D                                    420 mm

E                                    460 mm

F(FROM BOTTOM OF FLY WHEEL)    650 mm

H                                    560 mm

WEIGHT                        71.5 KGS

*HIGHER MAXIMUM PRESSURE AVAILABLE. PLEASE CONTACT PILOT AIR



FEATURES

· MADE IN ITALY

· DESIGNED FOR INDUSTRIAL USE

· CAST IRON CYLINDER BARRELS & STAINLESS STEEL VALVES

· ALLOY HEADS FOR IMPROVED COOLING

· BALANCED CRANKSHAFT FOR SMOOTHER, QUIETER OPERATION & LONGER LIFE

· LARGER DIAMETER FLYWHEELS DESIGNED TO DRAW COOL AIR OVER COMPRESSOR PUMP

· HIGH QUALITY INLET FILTER



• K50-PUMP COMPRESSOR AIR PUMP

Part Number/SKU: K50-PUMP
