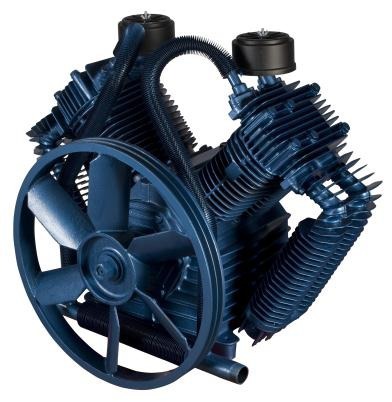

COMPRESSOR PUMPMODEL: K100-PUMP



CYLINDERS                           4

STAGE                                    2

MAX PRESSURE (BAR)         11*

MOTOR (KW)                         15

FLYWHEEL (MM)                   550

BELT SECTION                      2B

DIMENSIONS

A                                    283 mm

B                                    190 mm

C                                    388mm

D                                    520 mm

E                                    890 mm

F(FROM BOTTOM OF FLY WHEEL)     720 mm

H                                    588 mm

WEIGHT                        125.0 KGS

*HIGHER MAXIMUM PRESSURE AVAILABLE. PLEASE CONTACT PILOT AIR



FEATURES

· MADE IN ITALY

· DESIGNED FOR INDUSTRIAL USE

· CAST IRON CYLINDER BARRELS & STAINLESS STEEL VALVES

· ALLOY HEADS FOR IMPROVED COOLING

· BALANCED CRANKSHAFT FOR SMOOTHER, QUIETER OPERATION & LONGER LIFE

· LARGER DIAMETER FLYWHEELS DESIGNED TO DRAW COOL AIR OVER COMPRESSOR PUMP

· HIGH QUALITY INLET FILTER

• K100-PUMP COMPRESSOR AIR PUMP

Part Number/SKU: K100-PUMP

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
