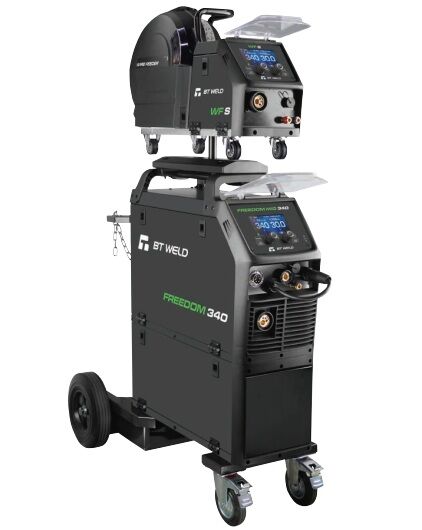

FREEDOM 340WF MIG Synergic/ Manual Compact Inverter Welder 415V BT Weld 659343

DESCRIPTION:

  •  Duty Cycle: 40% @ 315A
  •  Generator: 20 Kva
  •  Plate Thickness: Max. 16mm
  •  Material: Mild Steel, Stainless Steel, Brass / Copper, Aluminium (MIG only)

FEATURES:

  • 315A Output
  • 5" Colour LCD Screen
  • 2T/4T/Spot Weld
  • Suits D200 & D300 Spools
  • 4 Roll Wire Drive System
  • Tool Storage
  • Separate Wire Feeder

PROCESS:

  • MIG SYNERGIC / MANUAL
  • MIG GAS / GASLESS
  • TIG LIFT DC
  • STICK (MMA)

SPECIFICATIONS:

Primary Input Power 3 Phase 415V 50-60 HZ +/-15%
  MIG TIG MMA
Duty Cycle @ 40˚C 10min 40% @ 315A
60% @ 260A
100% @ 200A		 40% @ 315A
60% @ 260A
100% @ 200A		 40% @ 250A
60% @ 205A
100% @ 160A
Effective Current (A) 14.2 10.8 11.4
Rated Input Current (A) 22.5 17 18.0
Rated Input Power (KW) 15.5 11.7 12.6
Welding Current Range (A) 20-300 10-300 10-300
Welding Voltage Range (V) 15-26.5 10.4-22 20.4-32
I Max (A) 22.3 18.0 18.1
I eff (A) 14.1 11.4 11.4
Wire Diameter Range 0.6-1.6mm
Electrode Diameter Range 1.6-5mm
Protection / Insulation Class IP21S/S
Power Factor / Efficiency 0.66/85.8%
Thermal Overload YES
Dimensions/Weight L94 x W46 x H140 cm
Weight 64.5kg
Warranty 5 Year
Part Number 659343

STANDARD PACKAGE INCLUSIONS:

  • BT FREEDOM340 Compact Inverter Welder 415V:  659343
  • BT Weld WF-S 4 Roll Wire Feeder
  • BT Weld FREEDOM Wire Feeder Bracket
  • BT Weld Freedom Interconnection Cables 10 mt
  • BT Weld Tool Storage
  • Original Binzel 36 MIG Torch 4mt
  • Twist Lock Electrode Holder 4mt
  • Earth Clamp 300Amp 4mt
  • Argon Twin Gauge Regulator
  • Quick Connect Gas Hose 2mt
  • Drive Roller 0.9/1.2mm V Groove (Fitted)
  • Drive Roller 1.2/1.6mm Khurkle Groove Spare

Part Number/SKU: 659343

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 659343
Brand BT Weld
Shipping Weight 66.0000kg
Shipping Width 0.550m
Shipping Height 1.500m
Shipping Length 1.100m
Shipping Cubic 0.907500000m3
Unit Of Measure ea

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review
