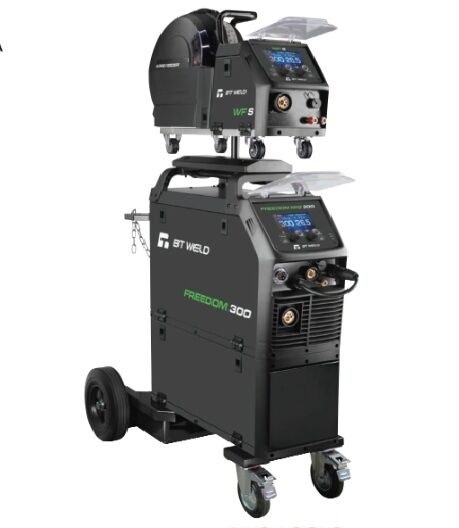

Freedom 300 WF Compact MIG Synergic/ Manual Inverter Welder 240V BT WELD 659303

DESCRIPTION:

  •  Duty Cycle: 40% @ 300A
  •  Generator: 18 Kva
  •  Plate Thickness: Max. 14mm
  •  Material: Mild Steel, Stainless Steel, Brass / Copper, Aluminium (MIG only)

FEATURES:

  • 300A Output
  • 5" Colour LCD Screen
  • 2T/4T/Spot Weld
  • Suits D200 & D300 Spools
  • 4 Roll Wire Drive System
  • Tool Storage
  • Separate Wire Feeder

PROCESS:

  • MIG SYNERGIC / MANUAL
  • MIG GAS / GASLESS
  • TIG LIFT DC
  • STICK (MMA)

SPECIFICATIONS:

Primary Input Power                 1 Phase 240V 50-60 HZ +/-15%
Duty Cycle @ 40˚C 10min        40% @ 300A
60% @ 245A
100% @ 190A    		 40% @ 250A
 60% @ 205A
100% @ 160A
                                                  MIG      TIG    MMA
Effective Current (A) 42 33.2 35.1
Rated Input Current (A) 66.2 52.5 55.5
Rated Input Power (KW) 15.2 12 12.8
Welding Current Range (A) 30-300 10-300 10-250
Welding Voltage Range (V) 15.5-29.8 10.4-22 20.4-30
I Max (A) 66.0 52.5 55.5
I eff (A) 41.7 33.2 35.1
Wire Diameter Range               0.8 – 1.6mm
Electrode Diameter Range 1.6 – 5mm
Protection / Insulation Class IP21S / S
Power Factor / Efficiency 0.66 / 86.6%
Thermal Overload Yes
Dimensions L94 x W46 x H140 cm
Weight 65kg
Part Number 659303

STANDARD PACKAGE INCLUSIONS:

  • BT FREEDOM 300 Compact Inverter Welder 240V
  • BT Weld WF- S4 Roll Wire Feeder
  • BT Weld Tool Storage
  • BT Weld FREEDOM Wire Feeder Bracket
  • BT Weld FREEDOM Interconnection Cables 10Mt
  • Original Binzel 36 mIG Torch 4mt
  • Twist Lock Electrode Holder 4mt
  • Earth clamp 300Amp 4mt
  • Argon Twin Gauge Regulator
  • Quick Connect Gas Hose 2mt
  • Drive Roller 0.8/0.9mm V Groove (Fitted)
  • Drive Roller 0.8/0.9mm Knurkle Groove Spare

Part Number/SKU: 659303

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 659303
Brand BT Weld
Shipping Weight 66.0000kg
Shipping Width 0.650m
Shipping Height 1.000m
Shipping Length 1.230m
Shipping Cubic 0.799500000m3
Unit Of Measure ea
