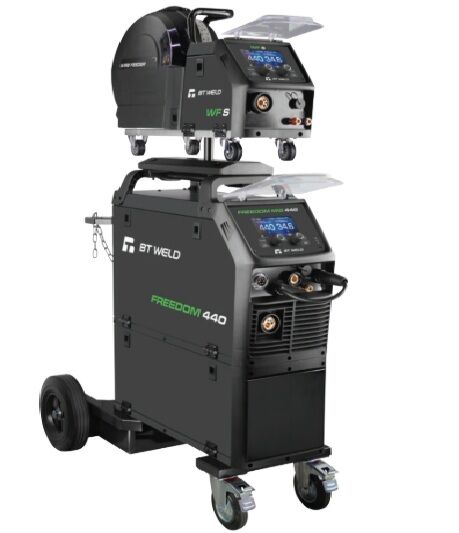

Freedom 440 WF MIG Synergic / Manual Compact Inverter Welder 415V BT Weld 659443

DESCRIPTION:

  • Duty Cycle: 40% @ 400A
  • Generator: 25 Kva
  • Plate Thickness: Max. 24mm
  • Material: Mild Steel, Stainless Steel, Brass / Copper, Aluminium (MIG only)

FEATURES:

  • 400A Output
  • 5" Colour LCD Screen
  • 2T/4T/Spot Weld
  • Suits D200 & D300 Spools
  • 4 Roll Wire Drive System
  • Tool Storage
  • Separate Wire Feeder

PROCESS:

  • MIG SYNERGIC / MANUAL
  • MIG GAS / GASLESS
  • DC TIF (LIFT ARC)
  • STICK (MMA)

SPECIFICATIONS:

Primary Input Power 3 Phase 415V 50-60 HZ +/-15%
Duty Cycle @ 40˚C 10min  40% @ 400A
 60% @ 330A
 100% @ 255A
  MIG TIG MMA
Effective Current (A) 20.0 14.9 19.8
Rated Input Current (A) 24.5 19.3 25.5
Rated Input Power (KW) 17.0 13.4 17.6
Welding Current Range (A) 30-400 10-400 10-400
Welding Voltage Range (V) 15.5-34 10.4-25.9 20.4-36.6
I Max (A) 23.8 18.9 24.8
I eff (A) 15.1 12.0 15.7
Wire Diameter Range 0.6 – 1.6mm
Electrode Diameter Range 1.6 – 5mm
Protection / Insulation Class IP21S / S
Power Factor / Efficiency 0.66 / 90.8%
Thermal Overload Yes
Dimensions L94 x W46 x H140 cm
Weight 69kg
Warranty 3 Year
Part Number 659443

STANDARD PACKAGE INCLUSIONS:

  • BT FREEDOM 440 Compact Inverter Welder 415V
  • BT Weld Tool Storage
  • BT WELD- S 4 Roll Wire Feeder
  • BT Weld FREEDOM Wire Feeder Bracket
  • BT Weld FREEDOM Interconnection Cables 10mt
  • Original Binzel 36 MIG Torch 4mt
  • Twist Lock Electrode Holder 4mt
  • Earth Clamp 300Amp 4mt
  • Argon Twin Gauge Regulator
  • Quick Connect Gas Hose 2mt
  • Drive Roller 0.9/1.2mm V Groove (Fitted)
  • Drive Roller 1.2/1.6mm Knurkle Groove Spare

Part Number/SKU: 659443

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 659443
Brand BT Weld
Shipping Weight 70.0000kg
Shipping Width 0.650m
Shipping Height 1.450m
Shipping Length 1.320m
Shipping Cubic 1.244100000m3
Unit Of Measure ea
