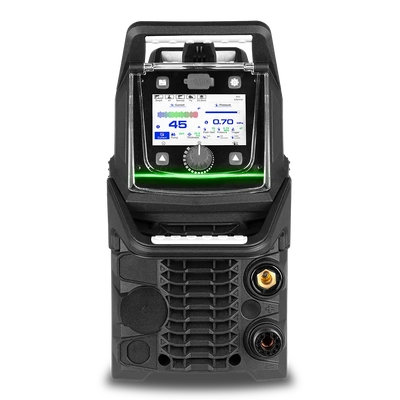

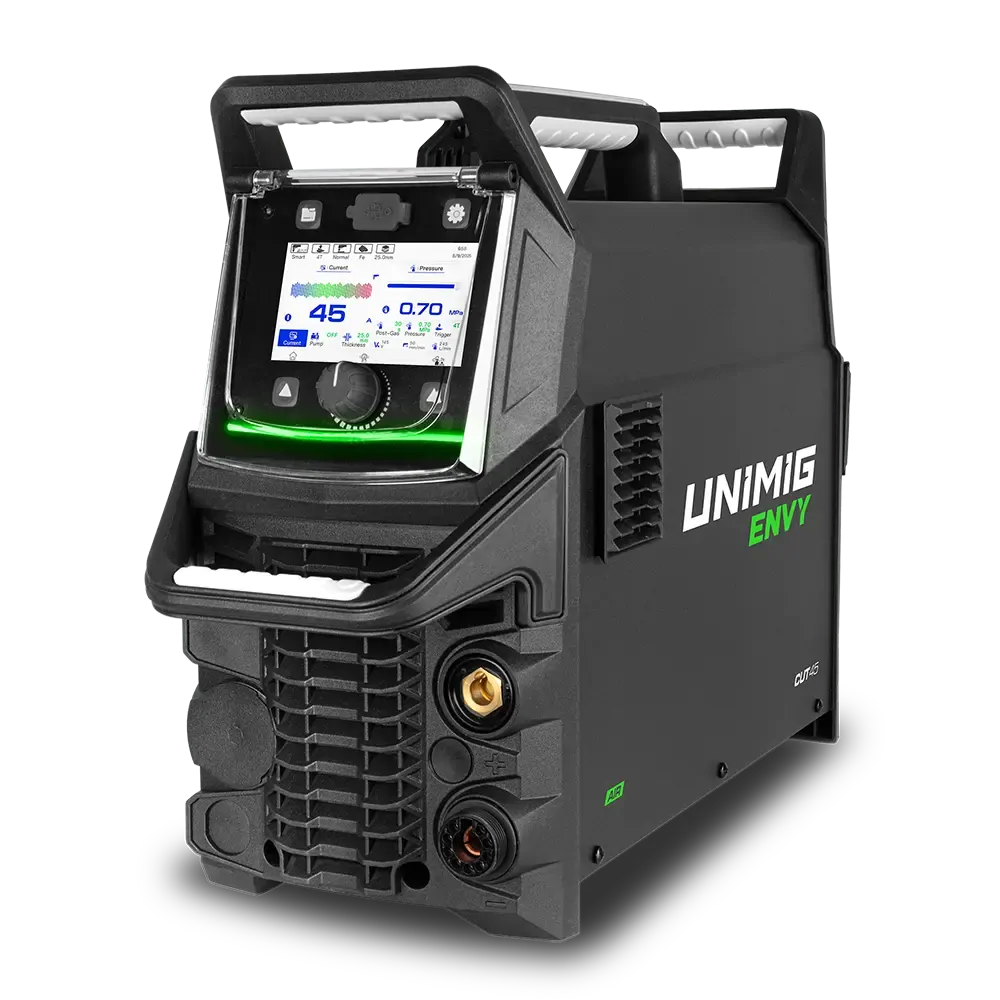

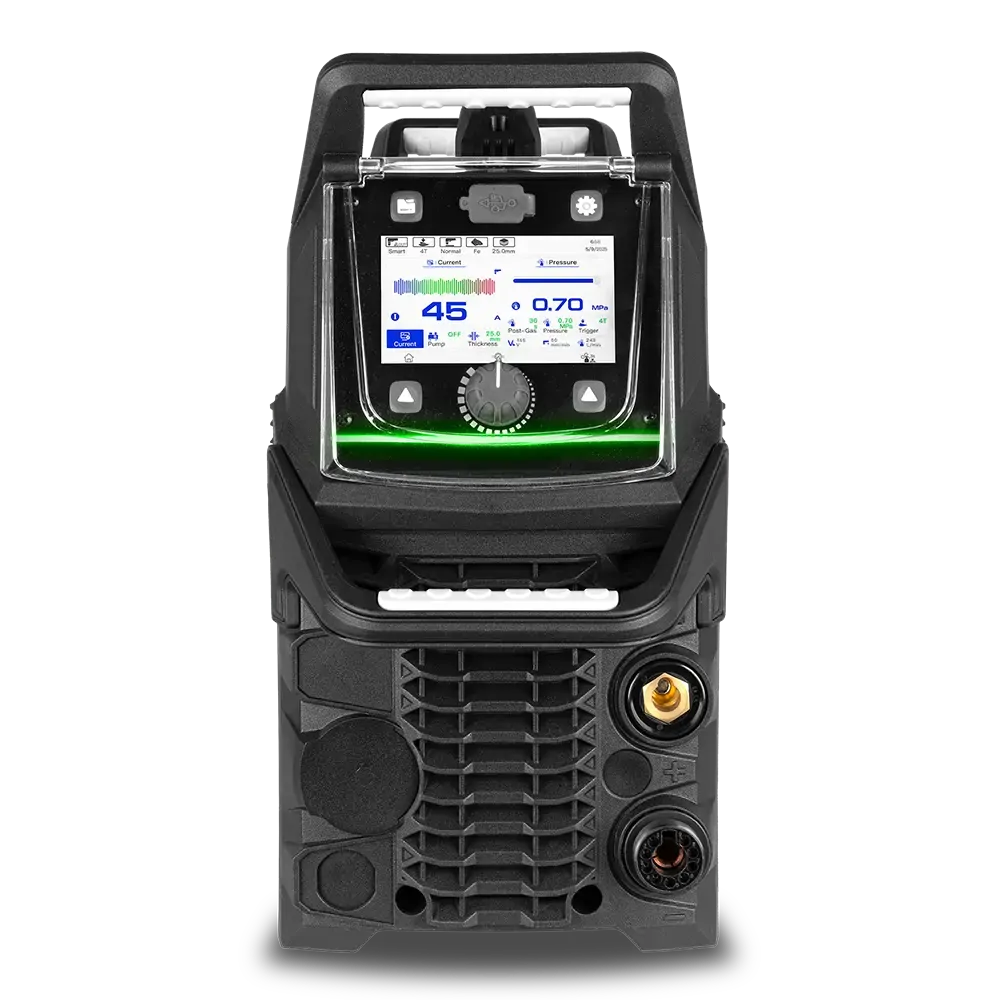

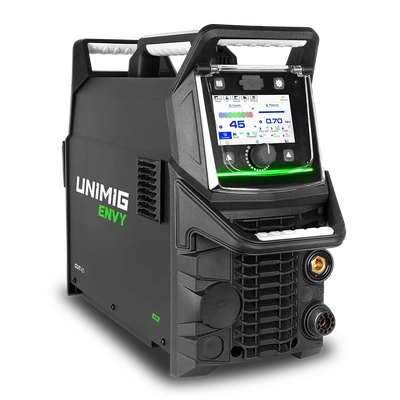

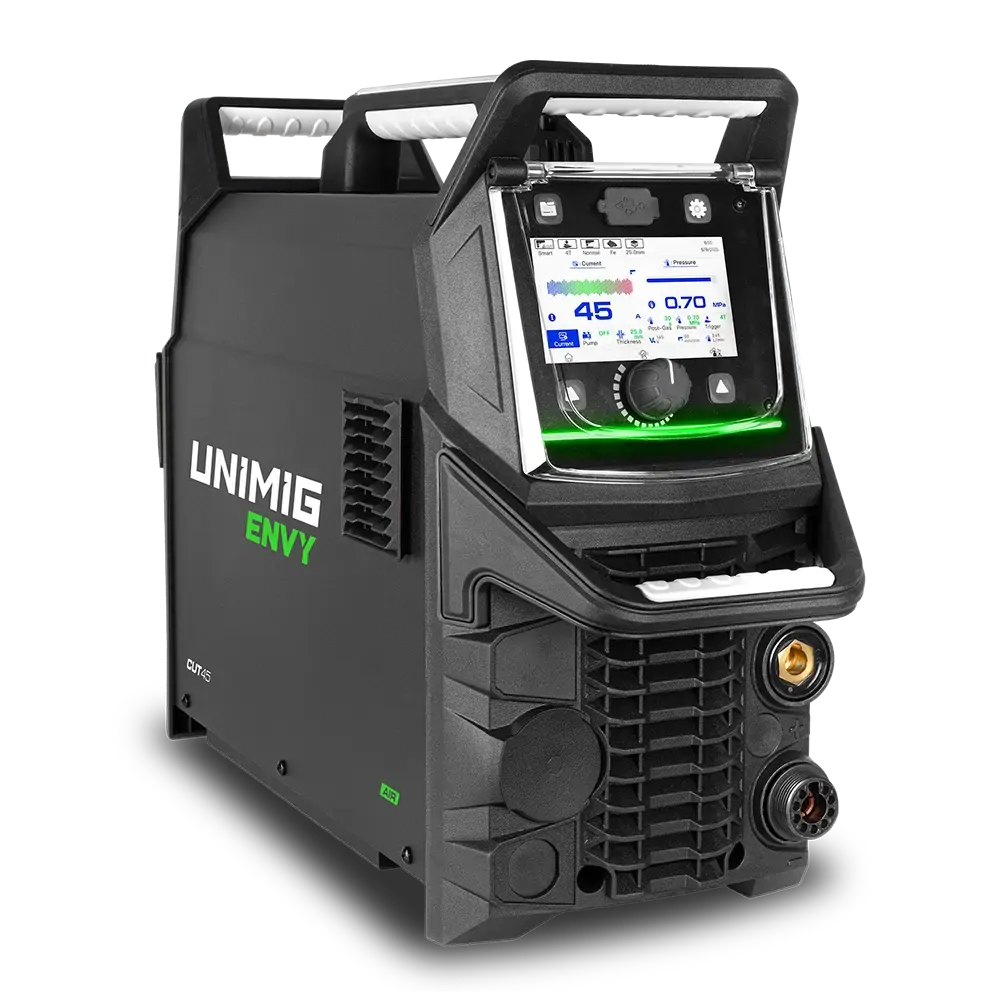

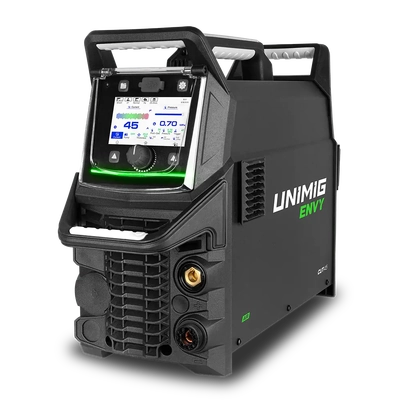

ENVY Cut 45 Air Plasma Cut Unimig U11604

DESCRIPTION:

A professional-grade plasma cutter that gives you the ultimate flexibility, perfect for the workshop or a worksite.

• The built-in air compressor lets you take this machine anywhere.
• 20mm clean cuts and 25mm cutting capacity.
• The CNC connection means you can use this machine for every kind of plasma application.

IN THE BOX:

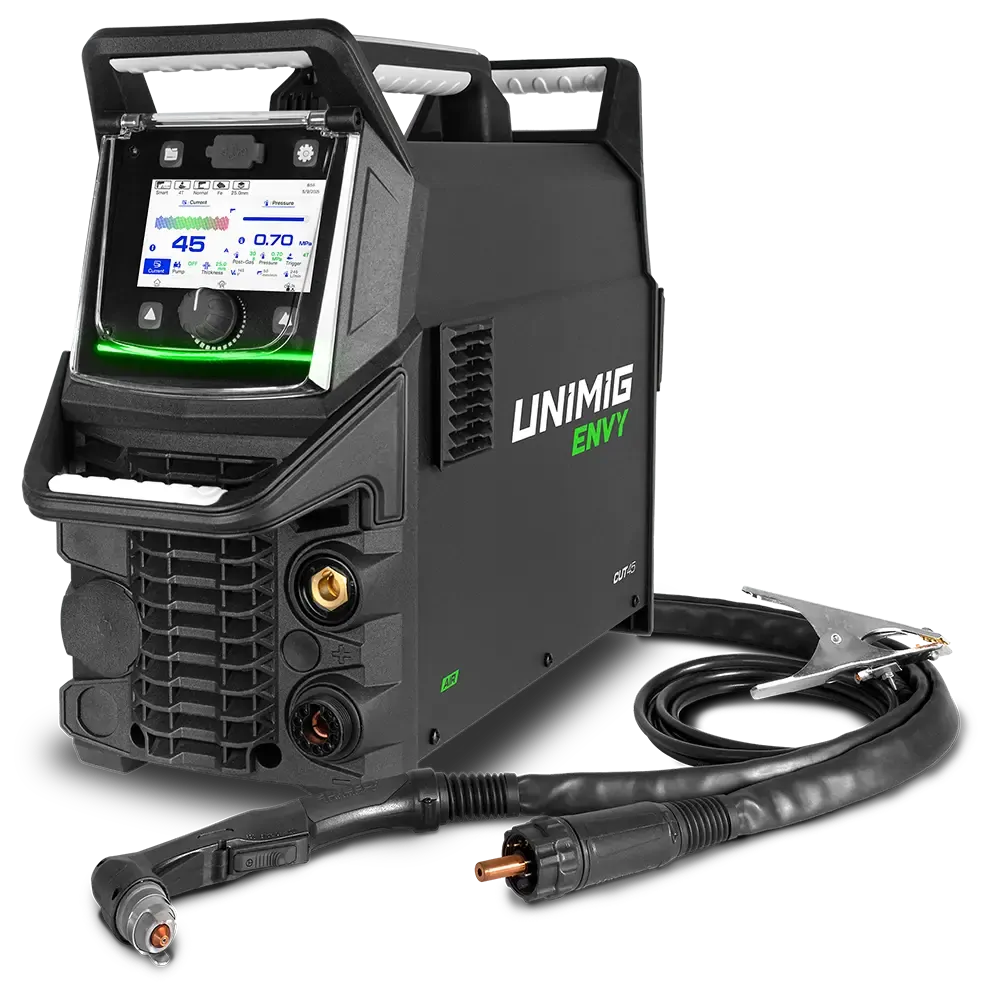

• ENVY Cut 45 Air Plasma Cutter
• 6m SC80 plasma torch
• 4m 300A earth clamp and lead
• Operating manual

FEATURES:

Smart-Set Programs: The easiest way to set up for a plasma cut, simply to select your cutting type, material type and thickness, and you're good to go.
Mild Steel: Get a 20mm clean cut and a severance cut of 25mm or mild steel.
Stainless Steel: Get up to an 18mm clean cut on stainless steel.
Aluminium: Get up to a 14mm clean cut on aluminium.
Solid: Cut through a solid metal plate on any material.
Perforated: With the perforated cutting mode, you can cut materials like grating or mesh without interruption.
Gouging: Switch to gouging consumables to efficiently remove defects, welds, or pre-existing material from your workpiece.
CNC Connectivity: Switch from handheld to automated cutting whenever you need. The CNC interface lets you connect a CNC torch and run the machine on a cutting table with precise, repeatable control.
Automatic Air Pressure Control: The machine regulates its own air pressure internally, so you do not need to adjust your compressor. The digital regulator delivers highly accurate, consistent airflow for cleaner starts and more reliable cuts.
Pilot Arc Start: Strike the arc without touching the workpiece. Pilot arc start lets you cut through paint, rust or scale with ease and gives you better control of uneven surfaces. Because the tip does not need to drag, your consumables last longer, and your starts stay consistent.
Smart Fan: Smart fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Job memory: The job memory function allows you to enter and store cut parameter settings. Cut parameters can be further adjusted and stored as required. A total of 100 jobs can be memorised and stored for recall.
Generator Compatible: Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 10kVA for this machine.
Air Test: Check that your plasma cutter is running at peak performance. The air test ensures that your compressor is connected and that the air pressure is dialled in to produce the best cuts.

TECHNICAL SPECIFICATIONS:

MACHINE SPECIFICATIONS:


PLASMA SPECIFICATIONS:

Part Number/SKU: U11604
