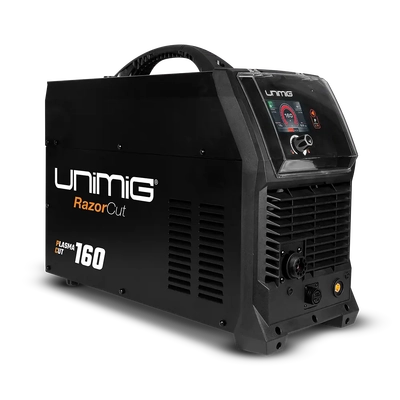

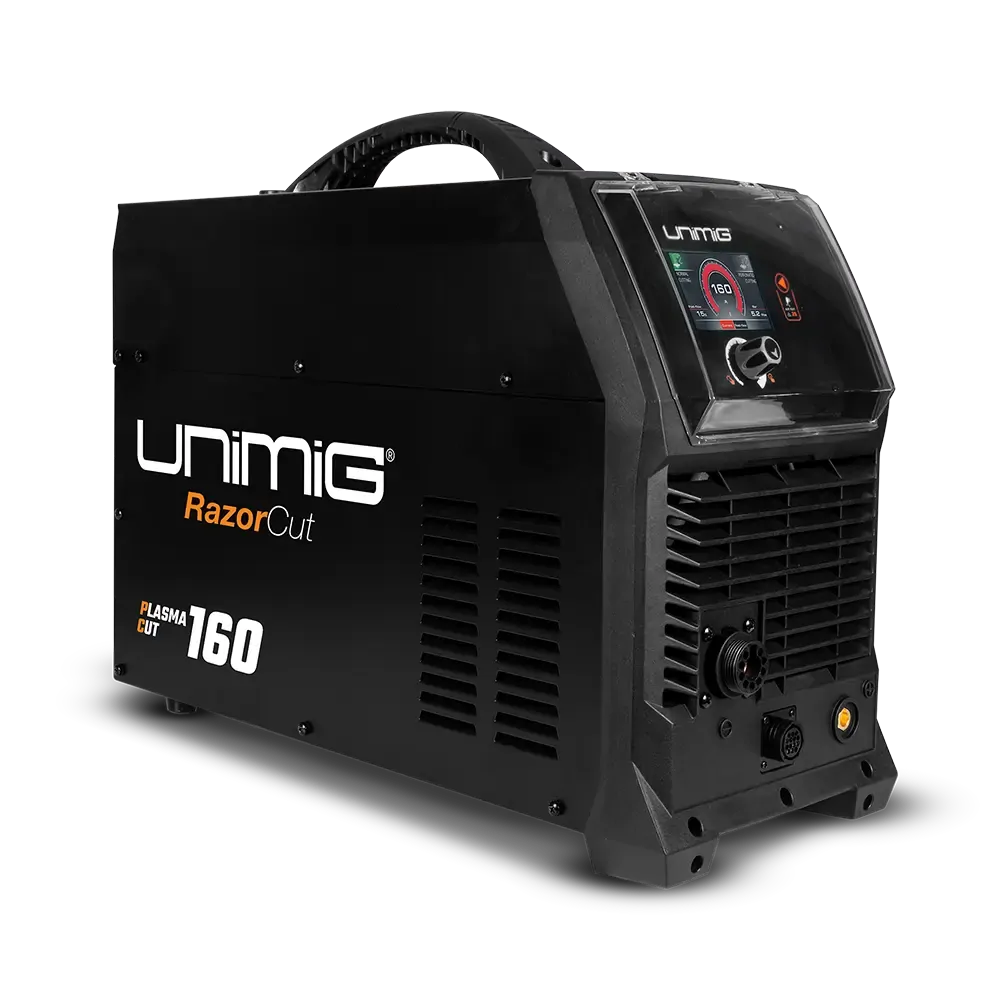

Razor Cut 160 Plasma Cutter Unimig U14004K

DESCRIPTION:

Get maximum performance at the fastest cutting speeds, the RAZOR CUT 160 is the ultimate plasma cutter.

FEATURES:

• The LCD screen makes navigation and adjusting your parameters as easy as can be.
• 50mm clean cut and 70mm severance, the ultimate in cutting performance
• A CNC connection means you can use this machine with every kind of plasma application

SPECIFICATIONS:

MACHINE SPECIFICATIONS:

• PRIMARY INPUT VOLTAGE:  415V Three-Phase
• SUPPLY PLUG:  No plug supplied (32 AMP Recommended)
• Ieff (A):  25
• NO LOAD VOLTAGE (V):  420
• PROTECTION CLASS:  IP21
• INSULATION CLASS:  H
• DINSE CONNECTOR:  35/50
• STANDARD:  AS 60974.1
• WARRANTY (Years):  3
• WEIGHT (kg):  24kg

PLASMA CUT SPECIFICATIONS:

• PLASMA CUT CURRENT RANGE:   20-160A
• PLASMA CUT DUTY CYCLE @ 40°C:  60% @ 160A, 100% @ 125A
• MILD STEEL CUT THICKNESS:  50mm
• MILD STEEL SEVERANCE THICKNESS:  70mm
• ALUMINIUM CUT THICKNESS:  40mm
• STAINLESS STEEL CUT THICKNESS:  50mm
• AIR FLOW DRAW OFF (L/min):  189
• AIR FLOW PRESSURE (Bar):  5.17 (75 psi)
• PLASMA ARC START:  Pilot Arc

Part Number/SKU: U14004K

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
