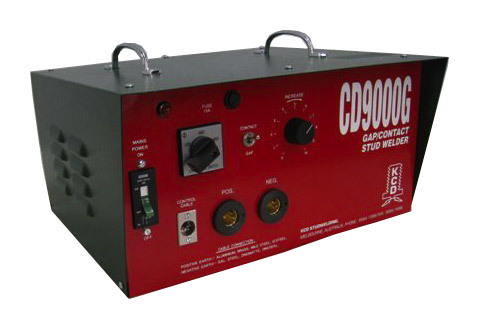

CD9000 Stud Welder M3-M8 with Contact Gun

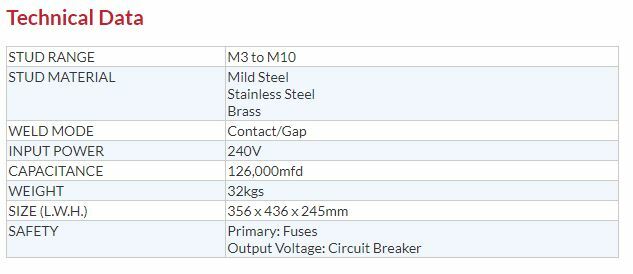

Technical Data
STUD RANGE M3 to M10
STUD MATERIAL Mild Steel
Stainless Steel
WELD MODE Contact/Gap
INPUT POWER 240V
CAPACITANCE 126,000mfd
WEIGHT 32kgs
SIZE (L.W.H.) 356 x 436 x 245mm
SAFETY Primary: Fuses
Output Voltage: Circuit Breaker



Description
TYPICAL APPLICATIONS
There are literally hundreds of applications – wherever you require a fastener end-joined to a metal surface - instantaneously.

DOMESTIC APPLIANCE MANUFACTURERS
Including refrigerators, washing machines, dish washers, stoves, heaters, fittings, etc.

MOTOR VEHICLE MANUFACTURERS
Decorative trim, panels, structural, labels, locks, handles, etc.

MANUFACTURING JEWELLERS
Attachment of pins and clips.

CONSTRUCTION INDUSTRY
Attachment of insulation.

SHIPBUILDING
Installing insulation to steel and aluminium bulk heads and panels

GENERAL FABRICATION
Panels, sink units, sheet metal work, duct work, etc.

ELECTRICAL & ELECTRONIC INDUSTRY
Light fittings, transformers, cases, valves, semi-conductors.

AIRCRAFT MANUFACTURERS
Ducting, sealing and studding of non-stress assemblies.

CHEMICAL PLANT MANUFACTURERS
Fabrication of pressure vessels, tanks, heat exchanges, duct work.

Details
SPEED OF OPERATION
Welding time is less than 0.0002 seconds. 15 welds per minute possible.

COST SAVING
Speed of operation and portability cut costs up to 10 times compared with conventional methods, drilling tapping etc. Material saving by virtue of simpler design.

RELIABILITY
Robust construction and solid state components insure long life and dependability in harsh working environment.

NO REVERSE SIDE MARKING
No distortion or burning. Therefore no reworking on the reverse side.

SIMPLE TO OPERATE
Unskilled operators are all that is needed. No flux, ferrules or inert gas
required.


Part Number/SKU: CD9000G

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU CD9000G
Brand KCD
Shipping Weight 55.0000kg
Shipping Width 0.600m
Shipping Height 0.600m
Shipping Length 0.600m
Shipping Cubic 0.216000000m3
Unit Of Measure ea
