Stud Welder Drawn Arc For Ø 2-12mm Steel & Stainless Steel Welding LBH910

Description
The compact stud welding unit LBH 910 is designed for drawn arc and short cycle stud welding. It convinces through easy operation and high welding quality. The robust construction ensures high reliability and high power-on time. All functions are indicated by clearly arranged LED. The welding time is continuously adjustable by the rotary knob on the front.

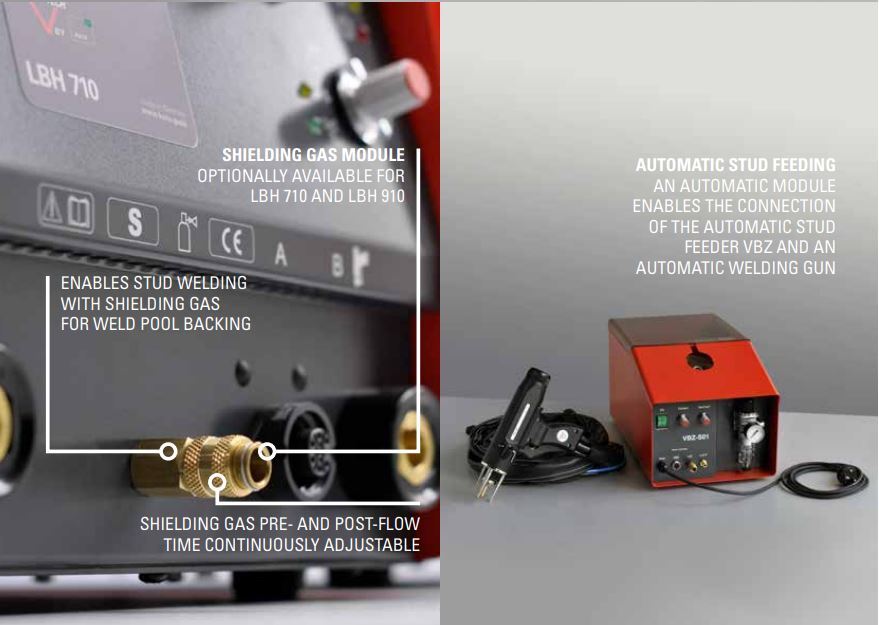

The LBH 910 can optionally be equipped with a shielding gas module for welding with shielding gas for weld pool backing and with an automatic module to control the automatic stud feeder VBZ and an automatic welding gun.


Details
easy operation
high welding quality
welding time continuously adjustable (timing divided up into two time domains for especially precise adjustment)
indication of all functions by LED
indication of error messages by LED
digital display of selected welding time
compact construction
low weight
optional (also retrofitable): shielding gas module for welding with shielding gas for weld pool backing
shielding gas pre-flow time continuously adjustable (with option shielding gas module)
optional (also retrofitable): automatic module to connect the automatic stud feeder VBZ and an automatic welding gun
highest operational reliability and high power-on time through exclusive use of high-quality components
electronic control of all functions
repeat cycle lock to avoid welding on an already welded welding element
automatic function test after switch-on
temperature control as protection against destruction through excess temperature
automatic switch-off in case of excess temperature and phase failure
protection of the unit in case of a fault on welding/control line cable and solenoid
thermic controlled ventilator
robust, powder-coated metal housing
stable fixing of welding cable sockets at own plug holder, prevents damage on housing caused by pulling of cable


Part Number/SKU: LBH910

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU LBH910
Brand KCD
Shipping Weight 40.0000kg
Shipping Width 0.300m
Shipping Height 0.500m
Shipping Length 0.300m
Shipping Cubic 0.045000000m3
