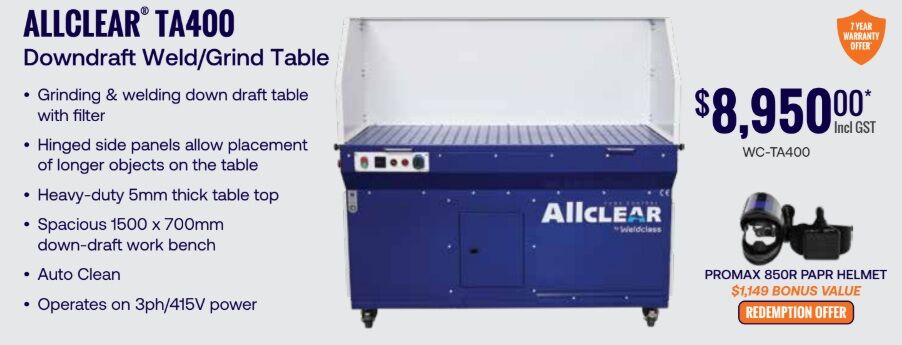

ALLCLEAR TA400 Grinding & Welding Downdraft Table With Filter 3ph/415V Weldclass WC-TA400-Pro

DESCRIPTION:

The ALLCLEAR® TA400 is a heavy-duty mobile downdraft table for welding, grinding, cutting, and gouging. Equipped with an automatic filter cleaning system, the TA400 is efficient to use and maintain. Impressive airflow rate of 2,500m³/hr and highly effective fume extraction for a safe and healthy work environment, thanks to a powerful 2.2kW motor and internal design engineered for maximum suction efficiency.
Other features include: spacious 1500 x 700mm downdraft workbench, 500kg load capacity, heavy-duty 5mm table top, 10A 230V outlet for powering grinders and other tools, hinged side panels, working hour counter, filter fullness indicator, and more.
Multi-level spark filtration allows for safe use with processes that generate high levels of sparks and spatter, such as heavy grinding, welding with heavy material, flux-cored wire, gouging, etc.
Mounted on casters for mobility and operates off a 3-phase 415V power supply

AT A GLANCE:

• 7-Year Warranty Offer
• Down-draft welding & grinding table with inbuilt filter
• For grinding, welding, cutting, and gouging fumes
• Hinged side panels allow the placement of longer objects on the table
• Operates on 415V 3-phase power
• Cleanable filter for longer filter life & reduced operating costs
• Automatic filter cleaning (requires the unit to be connected to a compressed air supply)
• Heavy-duty build for industrial use, with exceptional 2,500m³/hr airflow rate and 500kg load capacity
• Spacious 1500 x 700mm down-draft work bench
• Heavy-duty 5mm thick table top

APPLICATION:

• Welding, including MIG, Flux-Core, Stick, TIG
• Grinding of steel or stainless steel
• Plasma Cutting
• Oxy Cutting, Brazing, Soldering
• Gouging
• Multi-level spark filtration (mesh filter plus deflector) allows for safe use with processes that generate high levels of sparks and spatter**
• NOT suitable for the extraction of fumes that contain: aluminium dust, oil mist, gases, or water vapour

FEATURES:

• 10A ~230V outlet at the front of the table provides a convenient power supply for tools such as welders and grinders
• For operator safety and compliance, power is only supplied to the 230V outlet if the fume table & filter are in operation / turned on
• Replaceable Spark Filter, plus special Deflector Plate shields the main filter from coarse particles & sparks, virtually eliminating the risk of burnout/fire, and further increasing filter life
• Automatic filter cleaning saves operator downtime
• ‘Pulse’ cleaning system (accumulates then releases a burst of compressed air) provides a more thorough clean, maintains better filter condition, and extends filter life
• Special dust collection drawer/tray allows easy & safe removal of dust (ejected from filter cleaning)
• Hinged left and right side panels can be swung back to allow placement of larger objects on the table
• Ergonomic design with easy access to replacement filters and service areas
• Heavy-duty 5mm steel table-top for durability and surface rigidity
• Commonly used in Education, Maintenance, and Industrial applications
• Working hour counter, filter fullness indicator, and Malfunction warning

SPECIFICATIONS:

• Power supply: 3-phase ~415V
• Power plug required: 415V ≥10A, plug not included****
• Work area/table top dimensions: W1500 x D700mm
• Table top height:  Approx 900mm
• Overall dimensions: W1580 x D780 x H1450mm
• Weight: 300kg
• Load capacity: 500kg
• Motor size: 2.2kw
• Filter type: Cleanable
• Filter cleaning: Automatic
• Max air flow: 2,500m³ / hour
• Noise level: 74 dBA
• Table Top: 5mm coated steel
• Body: coated steel
• Fan: Aluminium
• Air supply pressure required:  3-4 bar / 300-400 kPa / 40-60 psi
• Air supply flow required: Because air is gradually accumulated in a reservoir inside the AllClear unit, air compressor flow (LPM/CFM) capacity is not critical

Part Number/SKU: WC-TA400-Pro
