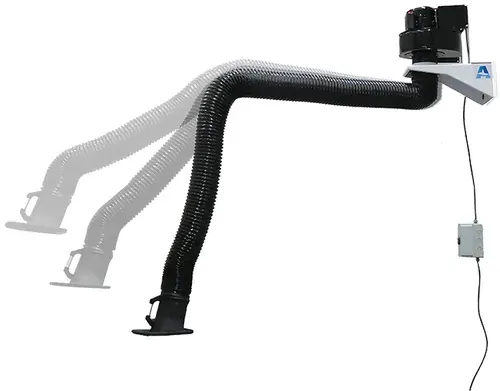

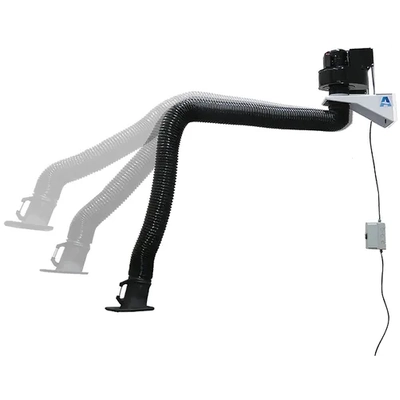

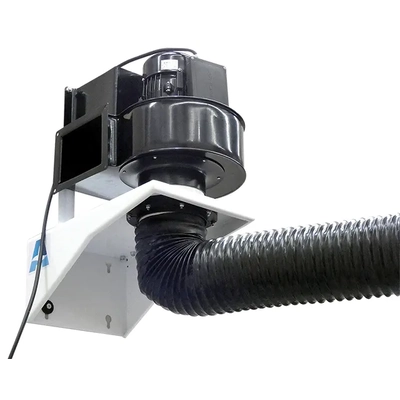

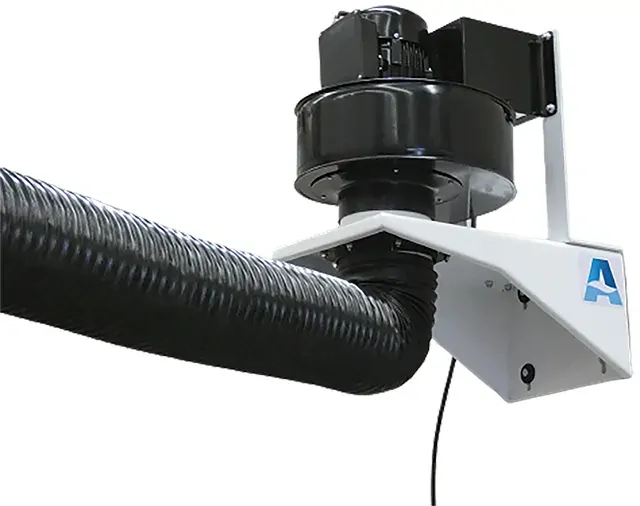

ALLCLEAR FA25 Wall-Mounted Welding Fume Extraction Fan + 3m Arm Package Weldclass WC-FA253M-Pro

AT A GLANCE:

  • For dust and fumes
  • Commonly used with ducted systems, where fumes are ducted externally and/or to large central extraction/filter units
  • Operates on ~230V 10A single phase power
  • Available with 3m or 4m suction arms
  • Wall-mounted, for minimal intrusion in workspaces

*This unit is an extraction fan only and does not include a filter. Suitable as-is for mild/non-toxic airborne contaminants. It can be used for welding and grinding fumes if used together with a suitable filtration system.

FEATURES:

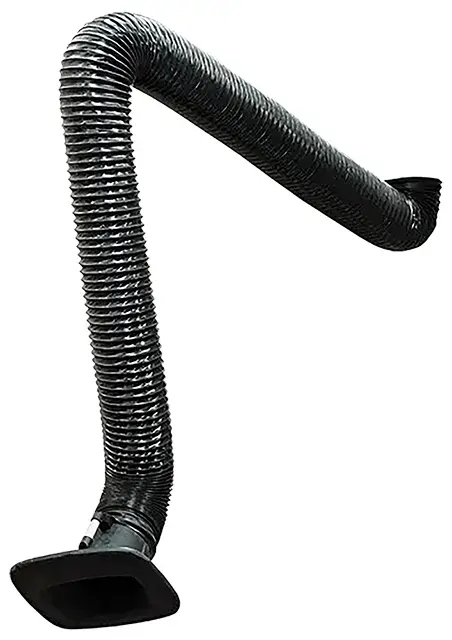

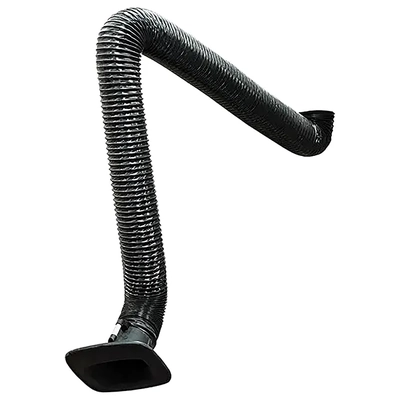

  • Flexible PVC suction hose with a welded steel wire coil
  • Temperature resistance up to 120ºC

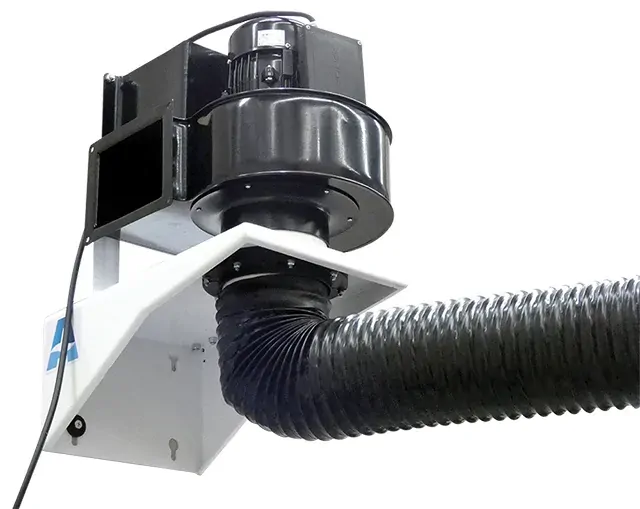

  • Rectangular outlet on fan for easy ducting (see dimensions below)

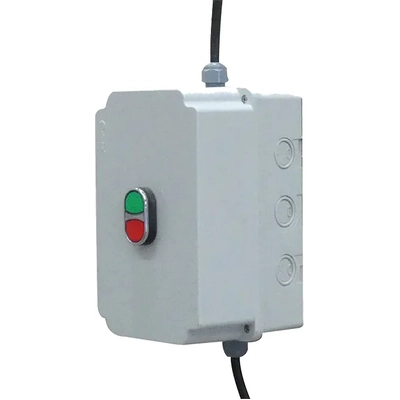

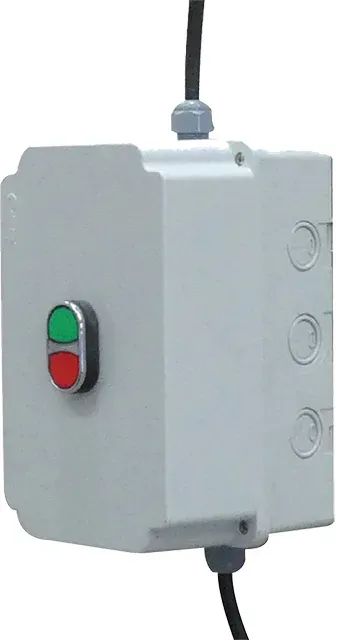

  • Fan includes a simple on/off control box

FAN INCLUDES:

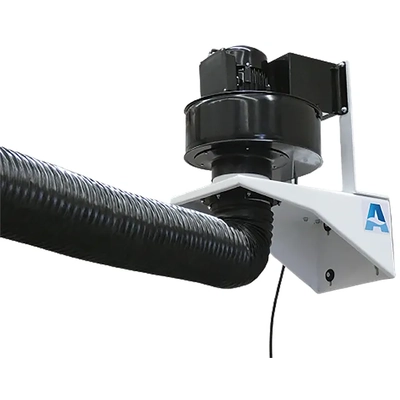

  • Fan/Motor with Mounting Bracket (assembled)
  • Wall anchor bolts with paper template for hole locations
  • On/off switch/control box with wires and 230V 10A power plug (assembled)

*Wall mounting requires the switch box to be opened to allow fixing

SPECIFICATIONS:

  • Power supply: Single phase ~230V 10A
  • Max air flow: 2,500m³ / hour
  • Motor size: 1.1kw
  • Fan/Motor Weight: 27kg
  • Dimensions (mm): L438 x W449 x H410
  • Fan type: Static and dynamic balanced impeller
  • Suction Hose Size: 150mm diameter
  • Intake Hood Size: 160mm diameter
  • Fan outlet size (rectangular): Outside 220 x 170mm / Inside 163 x 125mm

Part Number/SKU: WC-FA253M-Pro

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU WC-FA253M-Pro
Brand Weldclass
Shipping Weight 55.0000kg
Shipping Width 1.600m
Shipping Height 0.900m
Shipping Length 0.850m
Shipping Cubic 1.224000000m3
Unit Of Measure ea
